Description

FanHome is the distributor of many very detailed kits. When subscribed to one of the kits, each month you will receive several "stages" that contain parts for the build. The Back to the Future DeLorean consists of 158 stages. Each month 5 stages are sent to the subscriber.

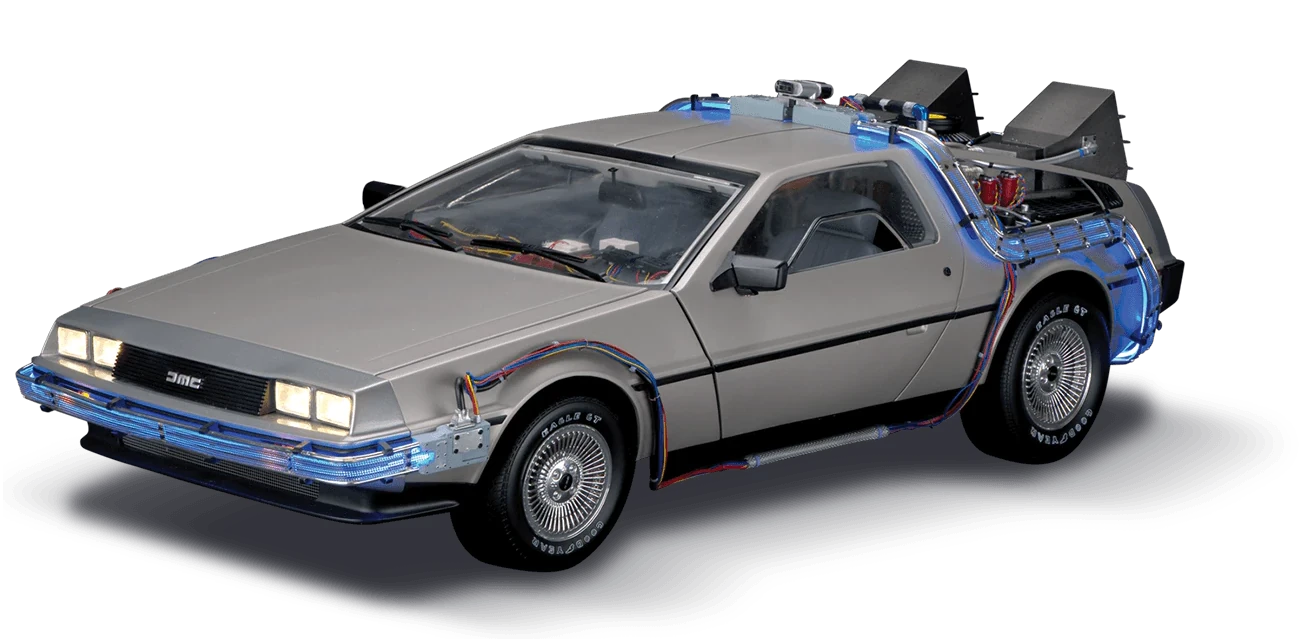

The Back to the Future DeLorean is 1:8 scale dicast/plastic highly detailed model of the DeLorean used in the Back to the Future film.

Features

Stages and My Build

The following table outlines each stage of the build. A navigation menu has been provided to make it easier to view a particular stage. Hover the mouse pointer over a stage in the navigation menu and a tooltip will pop up with a brief description of what that stage contains. Click the stage number to go to that stage. In the stage table, under the Description column, there is a link to return to the stage navigation menu

Stage Navigation Menu

Stage No.	Description	Parts	Finished Stage

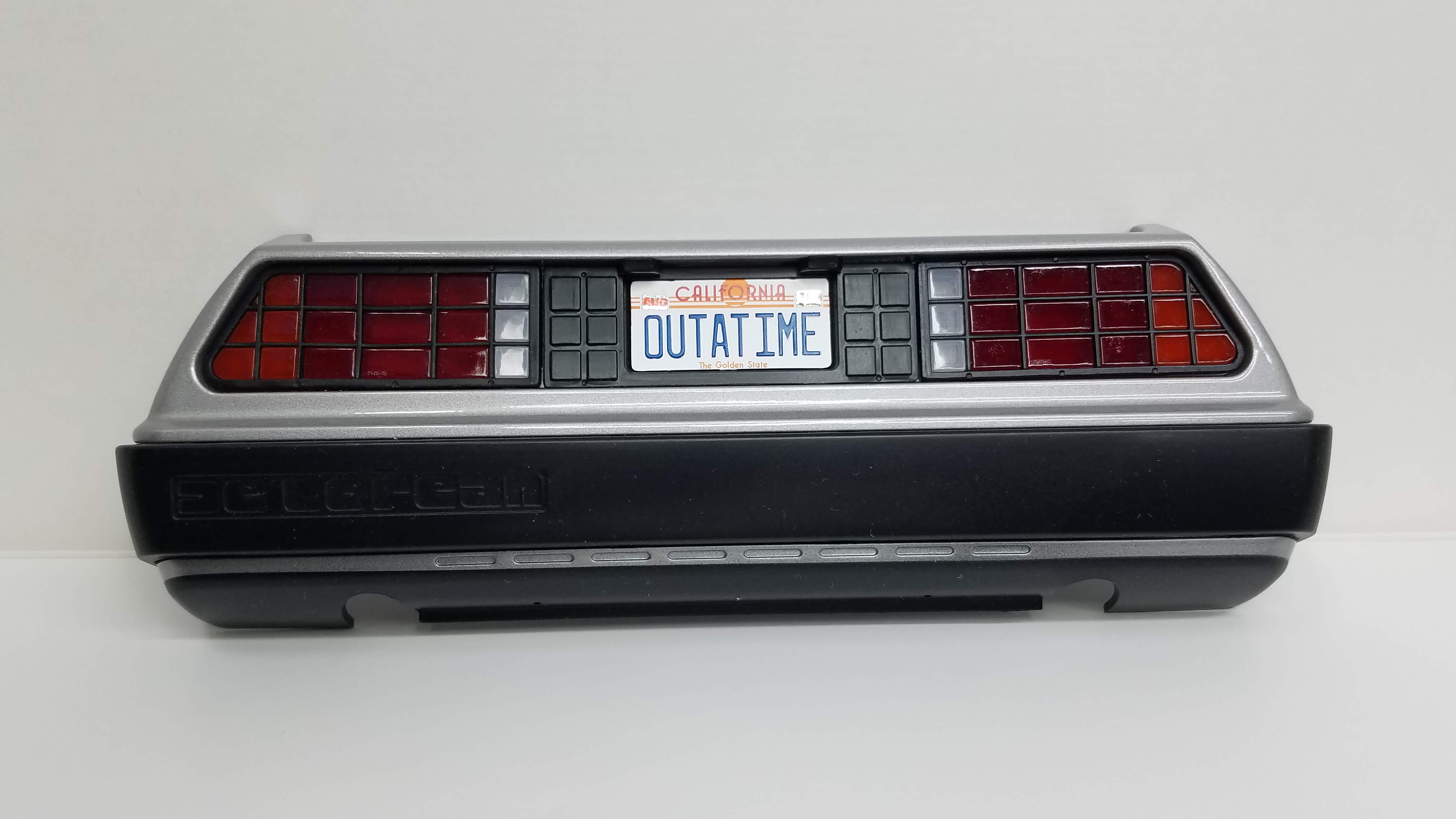

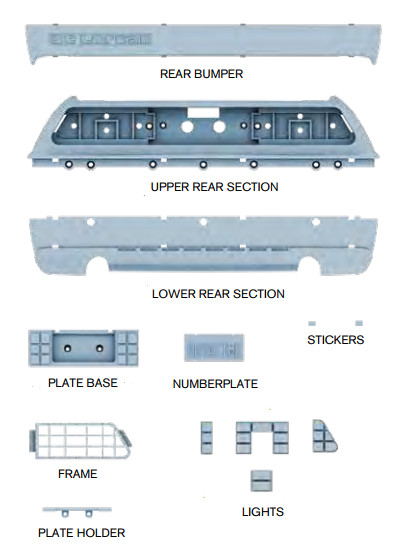

001	Stage 001 contains the license plate, rear bumper and rear section that includes the tail lights. Only the right tail light assembly is in stage 001, the left tail light assembly is in stage 002. The photo in this stage shows the rear bumper with both tail light assemblies installed. Return to the stage navigation menu	Rear bumper, Upper Rear Section, Lower Rear Section, License Plate Base, License Plate ("OUTOFTIME"), Stickers, Tail Light Frame, Tail Lights, Brake Lights, Backup Lights, License Plate Holder, (9) AP Screws, (7) BP Screws Click this link to view a photo of the parts, excluding the screws, to complete Stage 001	Click to view the parts and completed stage, actually stage 001 & 002

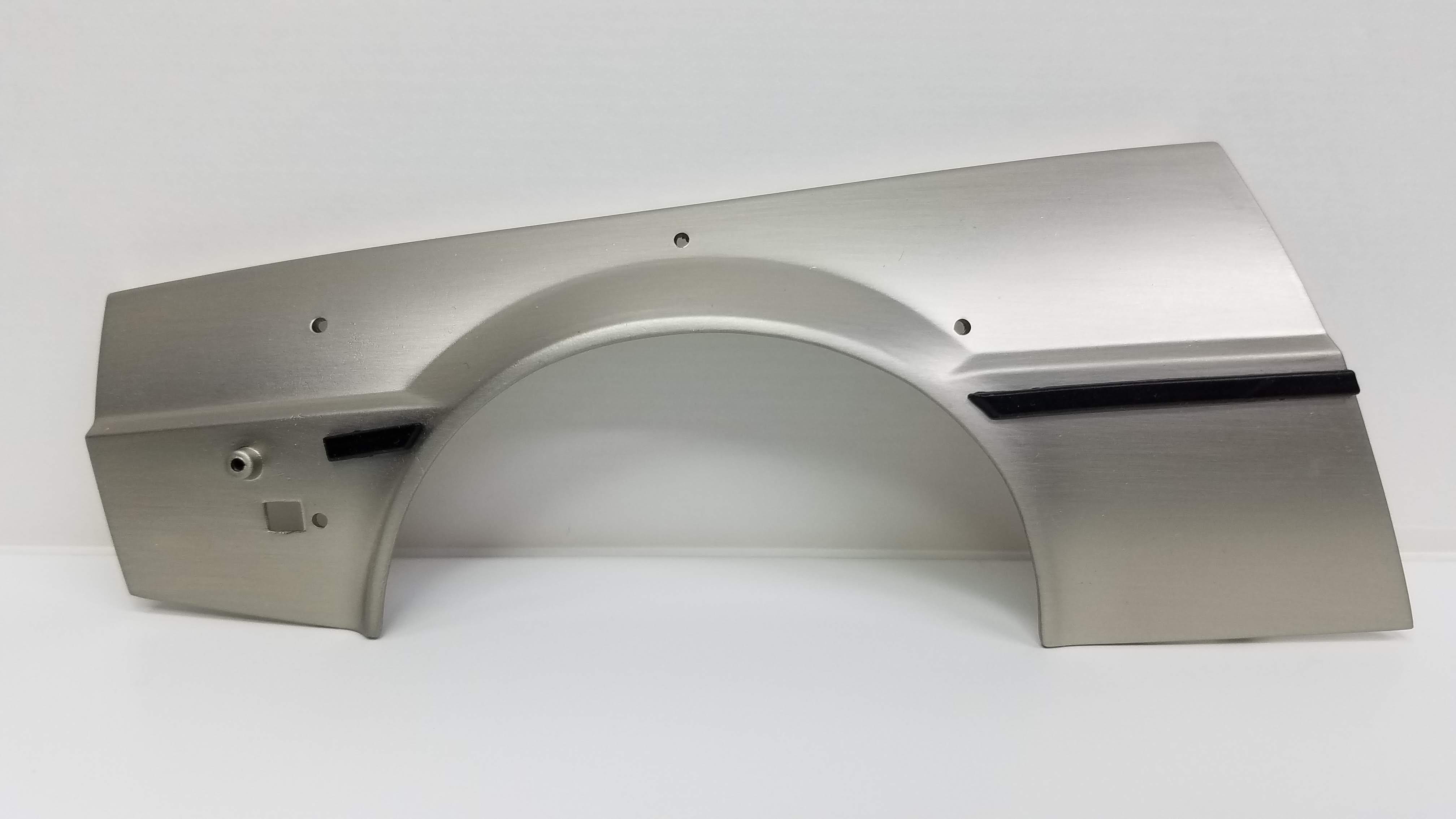

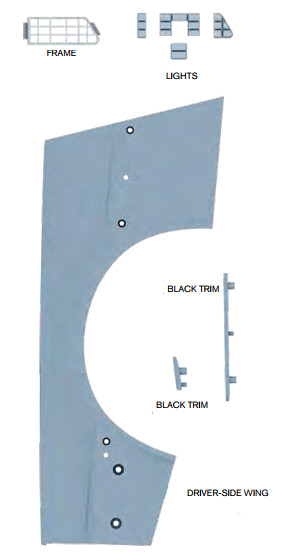

002	Stage 002 contains parts to finish the right tail light assembly, the front left fender (called a 'wing') and two strips of black side trim Return to the stage navigation menu	Left tail light assembly, front left fender and two pieces of fender trim Click this link to view a photo of the parts, excluding the screws, to complete Stage 002	Click to view the finished stage 002 left fender

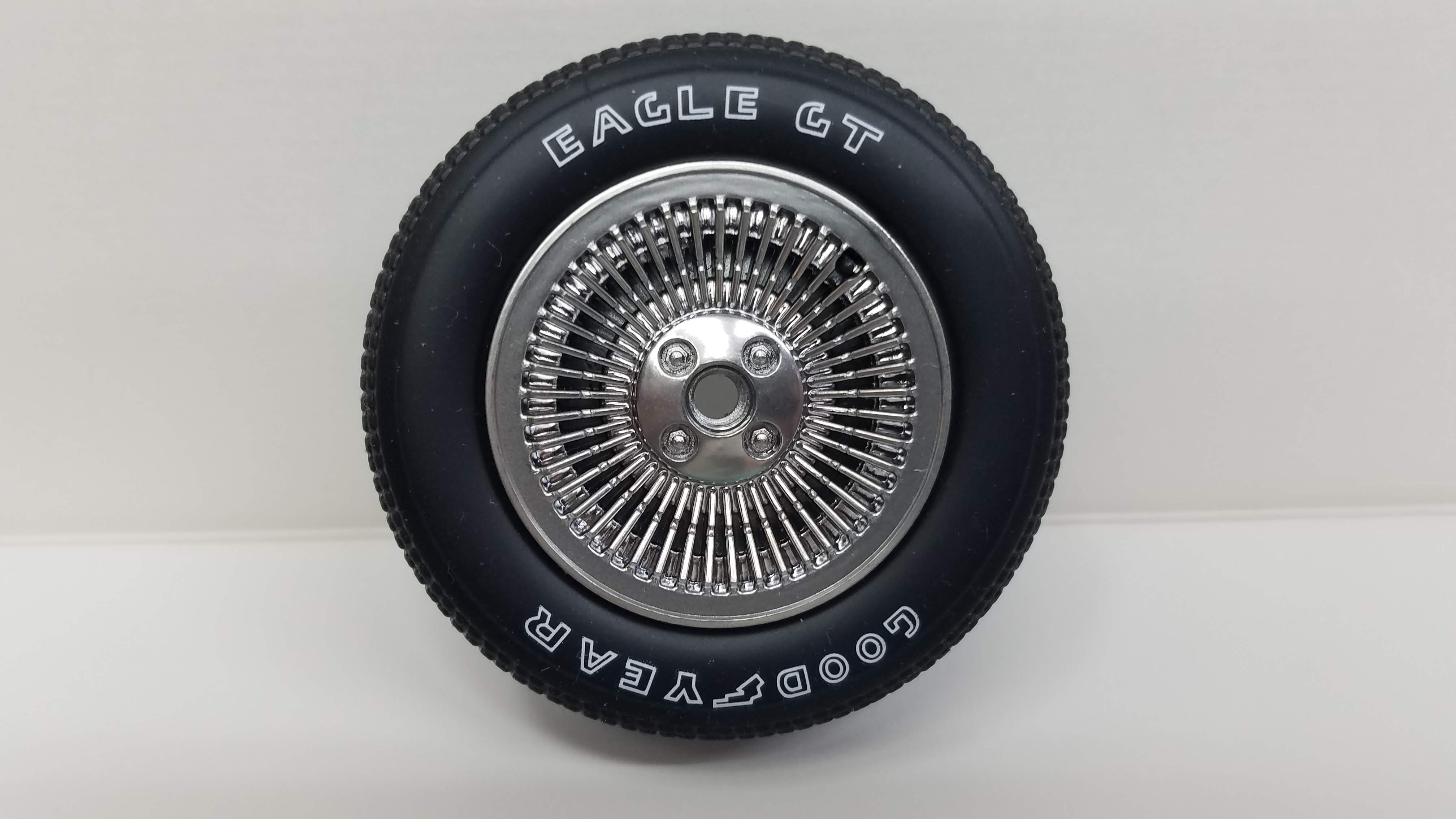

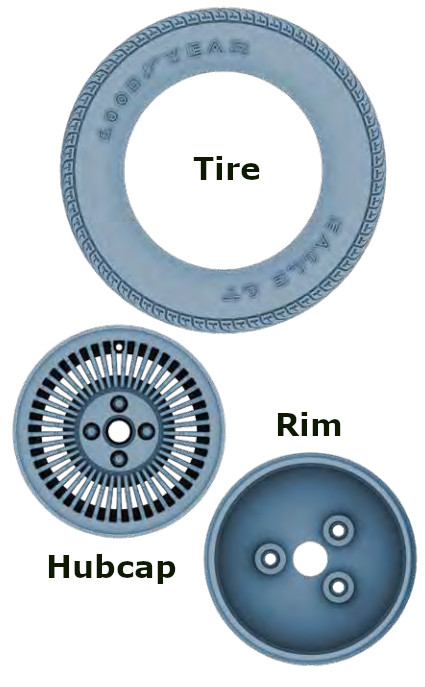

003	Stage 003 contains the parts to complete one of the four tires, rims and hubcaps. Return to the stage navigation menu	Tire, Hubcap, Rim, Hub, Washer and (3) BP Screws. Do not install the washer and hubcap at this time, even though the instructions tell you to do so. It will have to be removed in a later stage. Therefore; store them in a safe place. Click this link to view a photo of the parts, excluding the screws, to complete Stage 003	Click to view the finished stage 003 tire and wheel

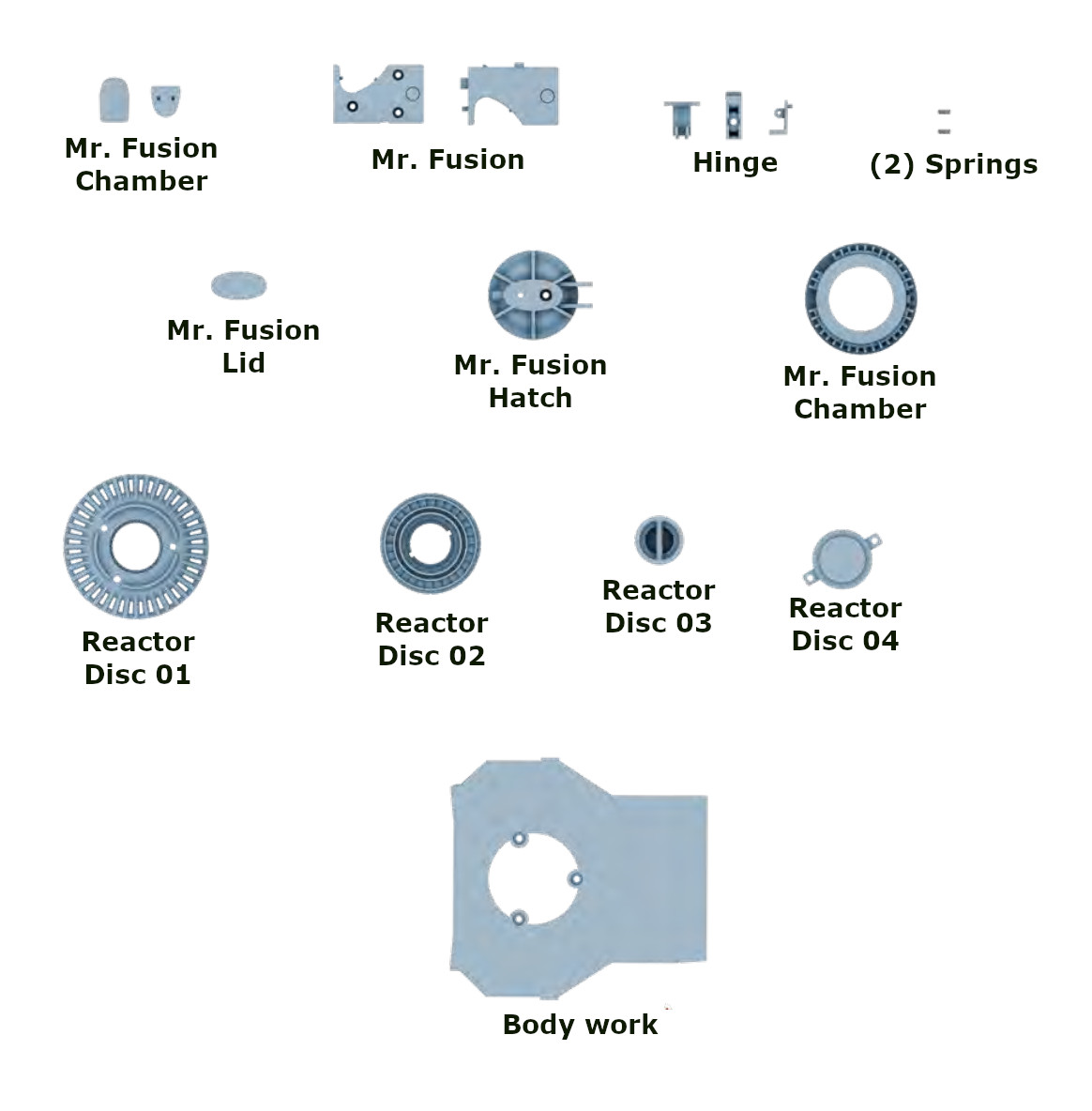

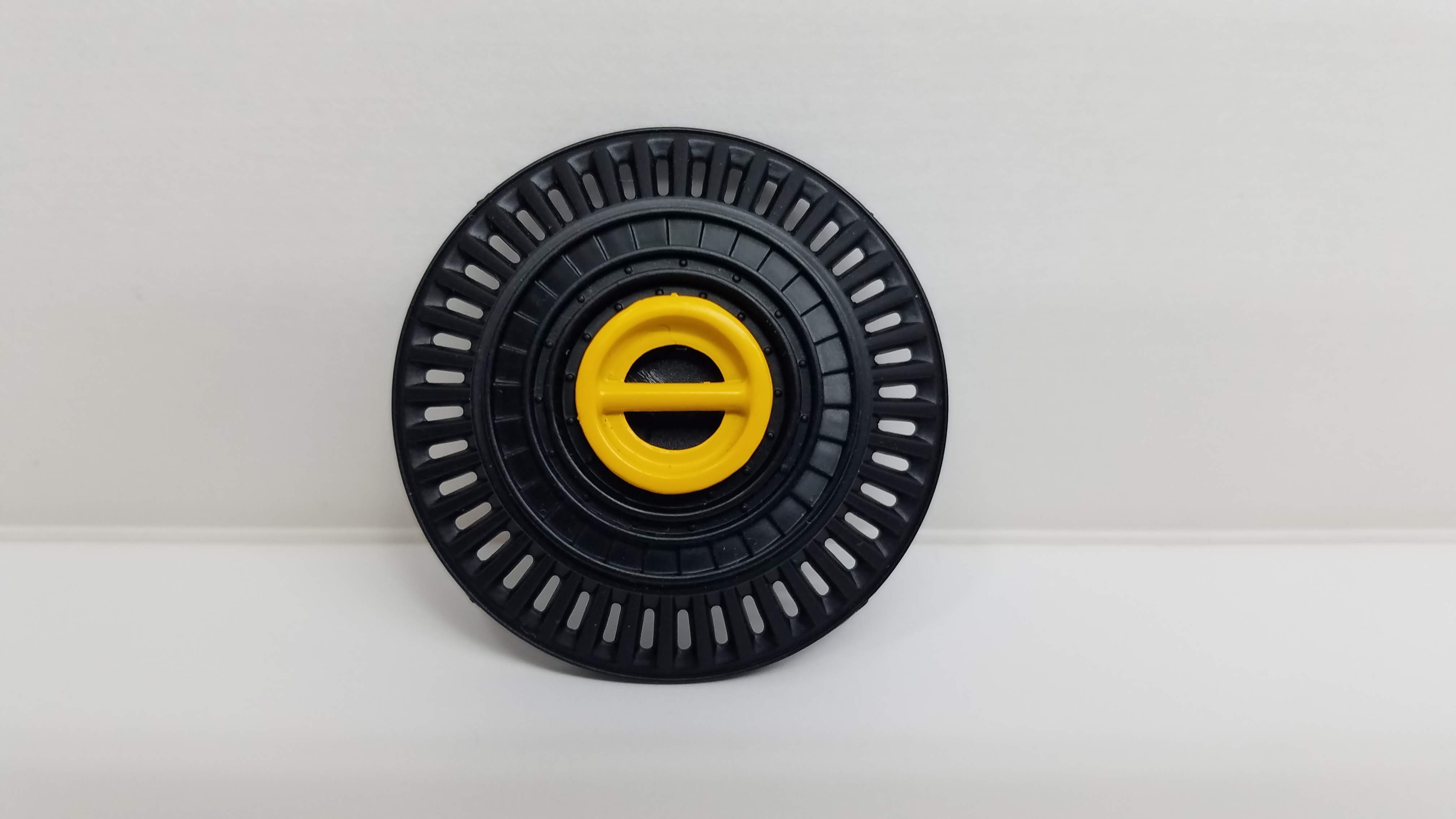

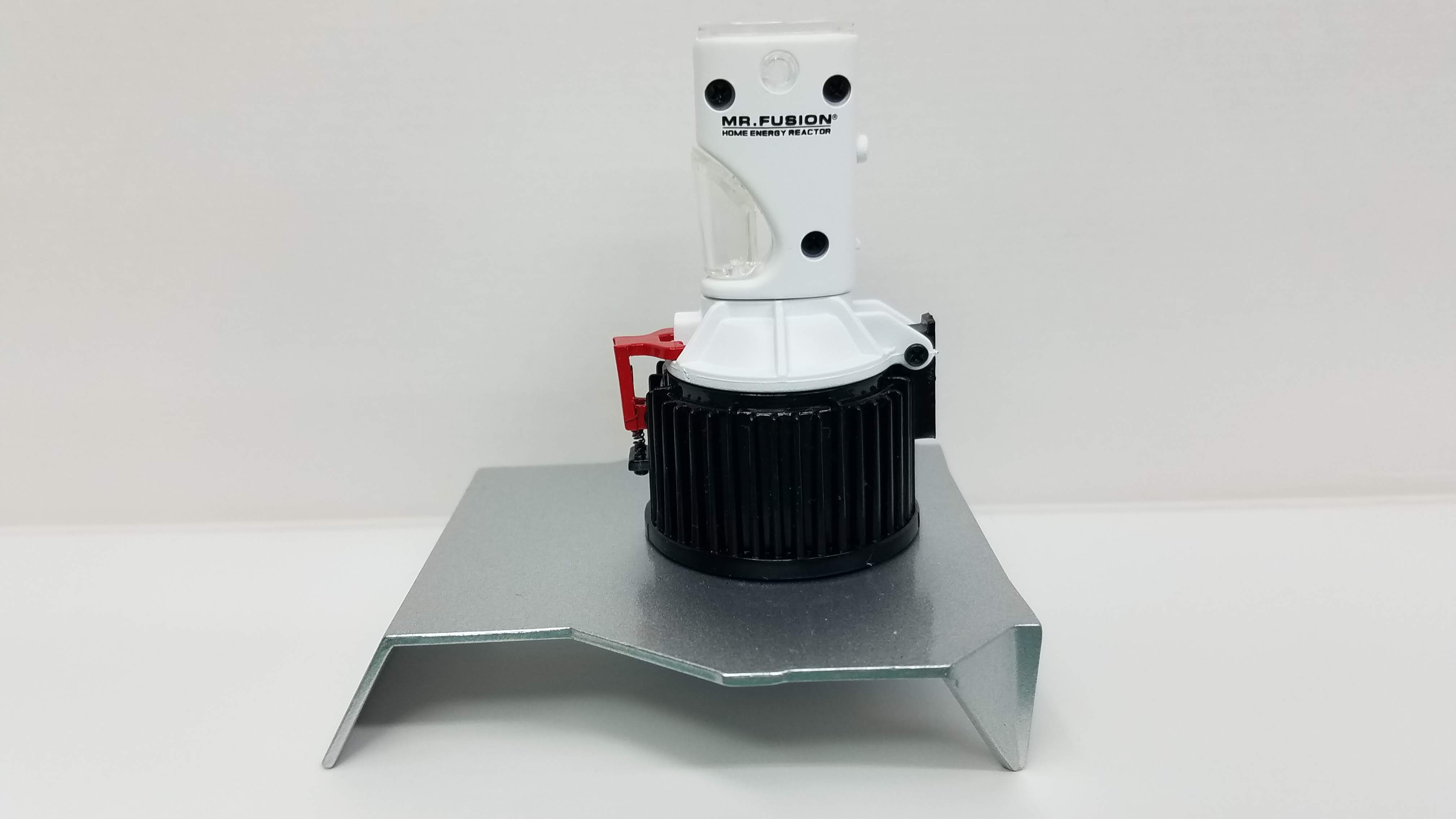

004	Stage 004 contains the parts to build and complete the Mr. Fusion Chamber, reactor disc elements and body work. Return to the stage navigation menu	Mr. Fusion Chamber 01, Mr. Fusion left half, Mr. Fusion Chamber 02, Mr. Fusion right half, Mr. Fusion Lid, Reactor Disc, Hinge 01, Reactor Disc (yellow), Mr. Fusion Hatch, Hinge 02, Reactor Disc (black), Mr. Fusion Chamber 03, Hinge 03, (2) springs, Reactor Disc base, Body work, (6) CP Screws, (18) AP Screws. View this YouTube video from The World of Wayne for a much better way to install the small springs in the Mr. Fusion Hinge Click this link to view a photo of the parts, excluding the screws, to complete Stage 004	Click to view the finished stage 005 Mr. Fusion closed Click to view the finished stage 005 Mr. Fusion open Click to view the finished stage 004 Reactor Disc

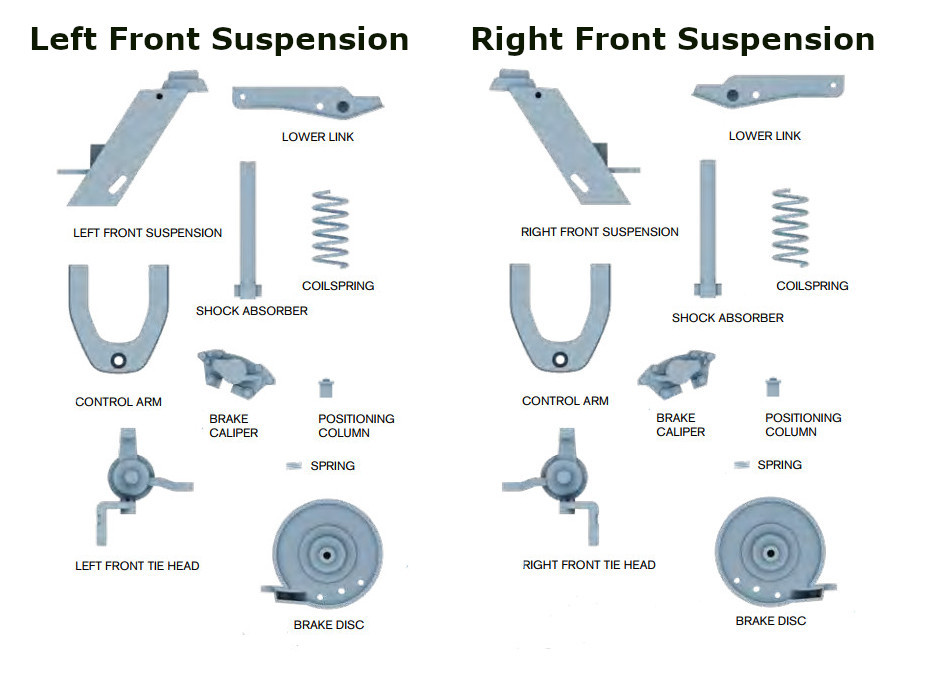

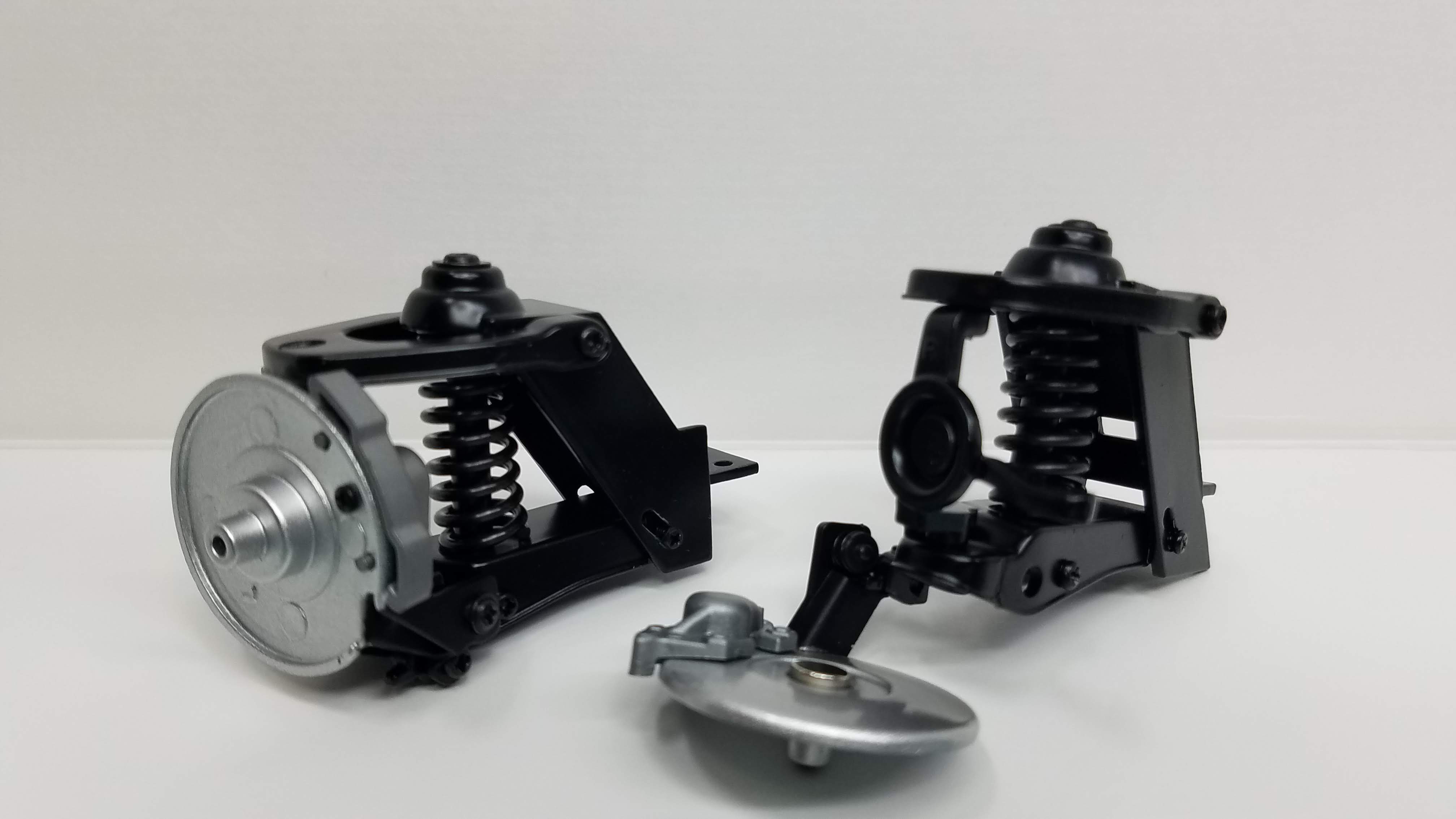

005 & 006	Stage 005 & 006 contains the parts to complete the left (Stage 005) and right (Stage 006) front suspension and brake. Return to the stage navigation menu	Stage 005 - Left Front Suspension, Lower Link, Shock Absorber, Coil spring, Control Arm, Brake Caliper, Positioning Column, Spring, Left Front Tie Head, Brake Disc, (2) AM Screws, (2) BM Screws, (2) CM Screws, (3) DM Screws, (1) EM Screw, (1) AP Screw, (1) DP screw. Stage 006 - Right Front Suspension, Lower Link, Shock Absorber, Coil spring, Control Arm, Brake Caliper, Positioning Column, Spring, Right Front Tie Head, Brake Disc, (2) AM Screws, (2) BM Screws, (2) CM Screws, (3) DM Screws, (1) EM Screw, (1) AP Screw, (1) DP screw. Click this link to view a photo of the parts, excluding the screws, to complete Stage 005 and 006	Click to view the finished stage 005 & 006. One photo is the suspension with the wheel in the driving position and one photo is with the wheel in the flying position.

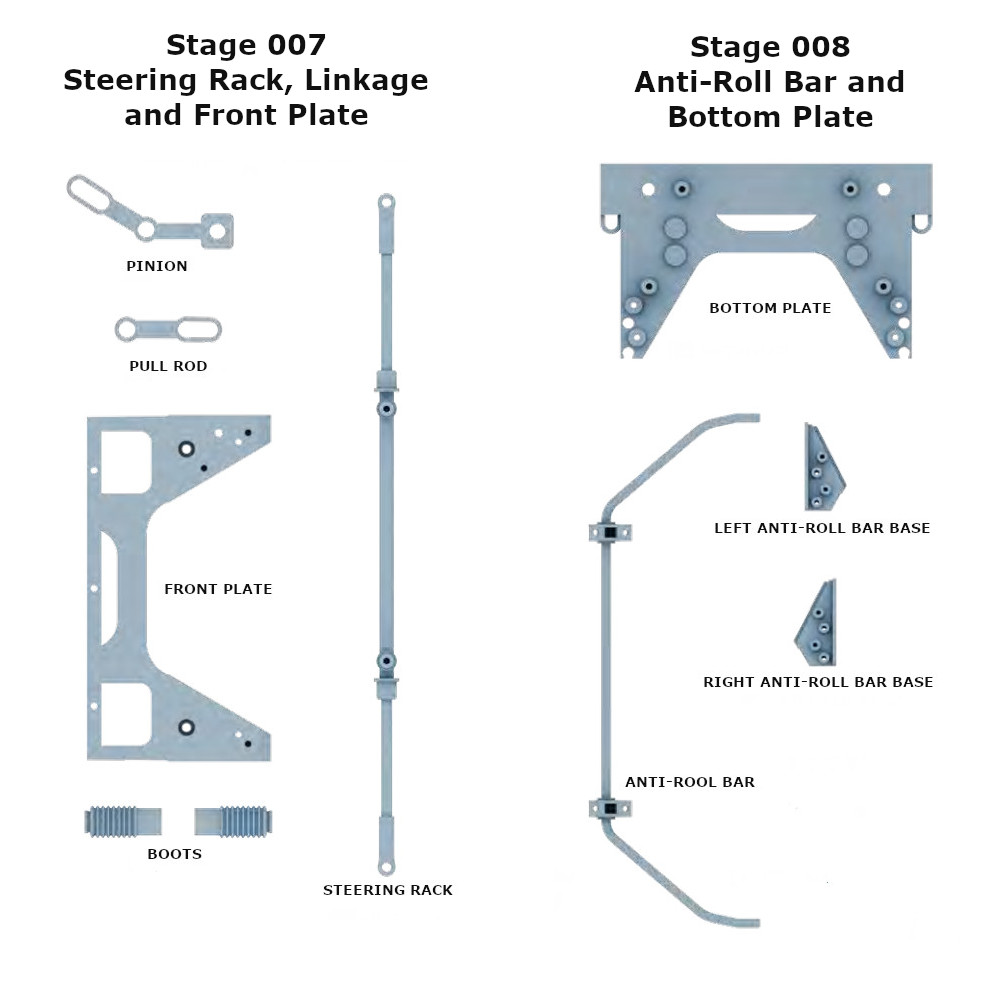

007 & 008	Stage 007 & 008 contains the parts for the steering rack, linkage, front plate, anti-roll bar and bottom plate. Return to the stage navigation menu	Stage 007 - Pinion, Pull Rod, Front Plate, Steering Rack, and Boots, (2) FM Screws. Stage 008 - Bottom Plate, Left Anti-Roll Bar Base, Right Anti-Roll Bar Base and Anti-Roll Bar, (4) AP Screws. Click this link to view a photo of the parts, excluding the screws, to complete Stage 005 and 006	The image of these assembled parts will be shown in a later stage.
009	Stage 009 contains the parts to complete another of the four tires, rims and hubcaps. Return to the stage navigation menu	Tire, Hubcap, Rim, Hub, Washer and (3) BP Screws. Do not install the washer and hubcap at this time, even though the instructions tell you to do so. It will have to be removed in a later stage. Therefore; store them in a safe place. Click this link to view a photo of the parts, excluding the screws, to complete Stage 009	Click to view the finished stage 009 tire and wheel

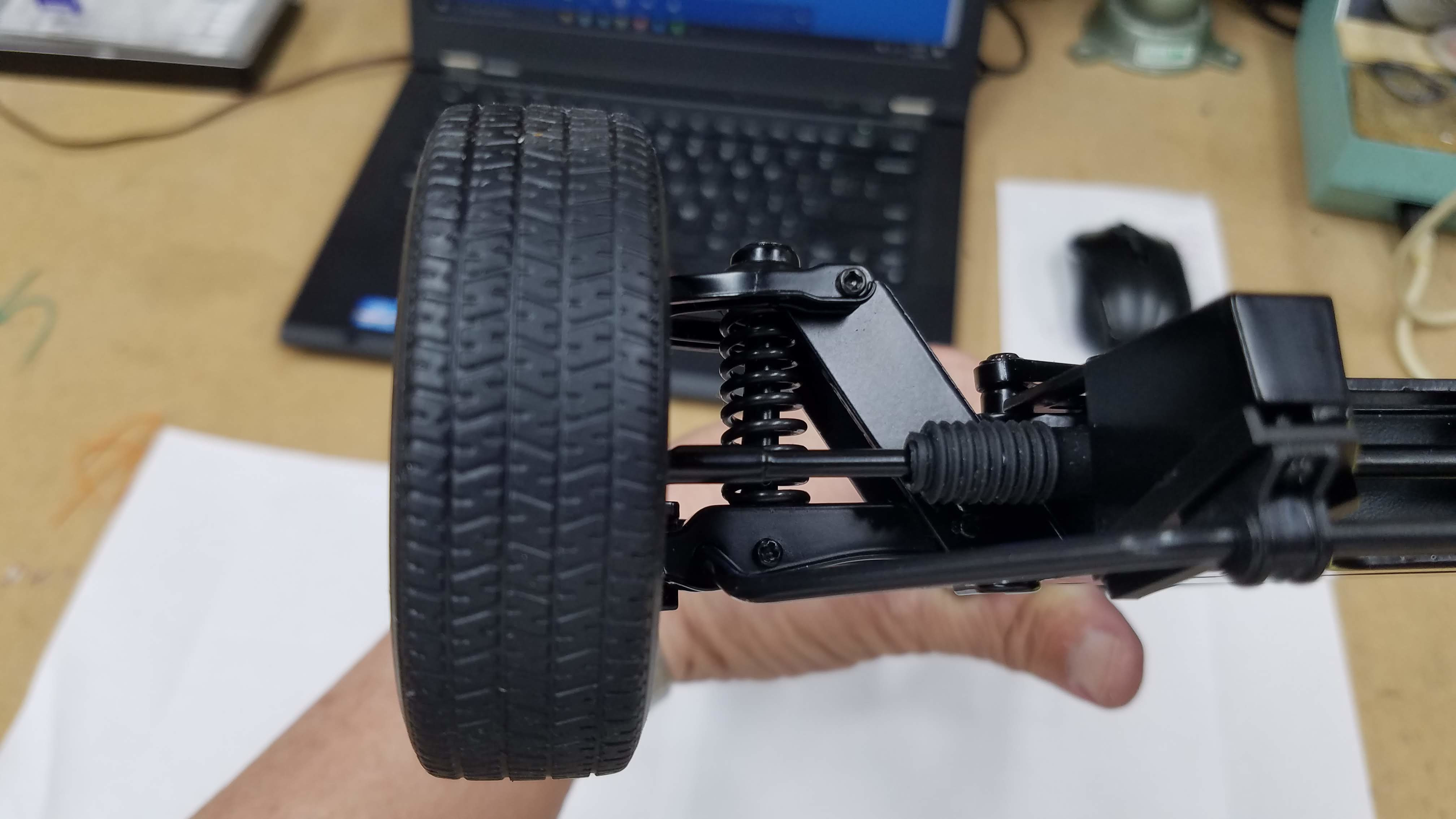

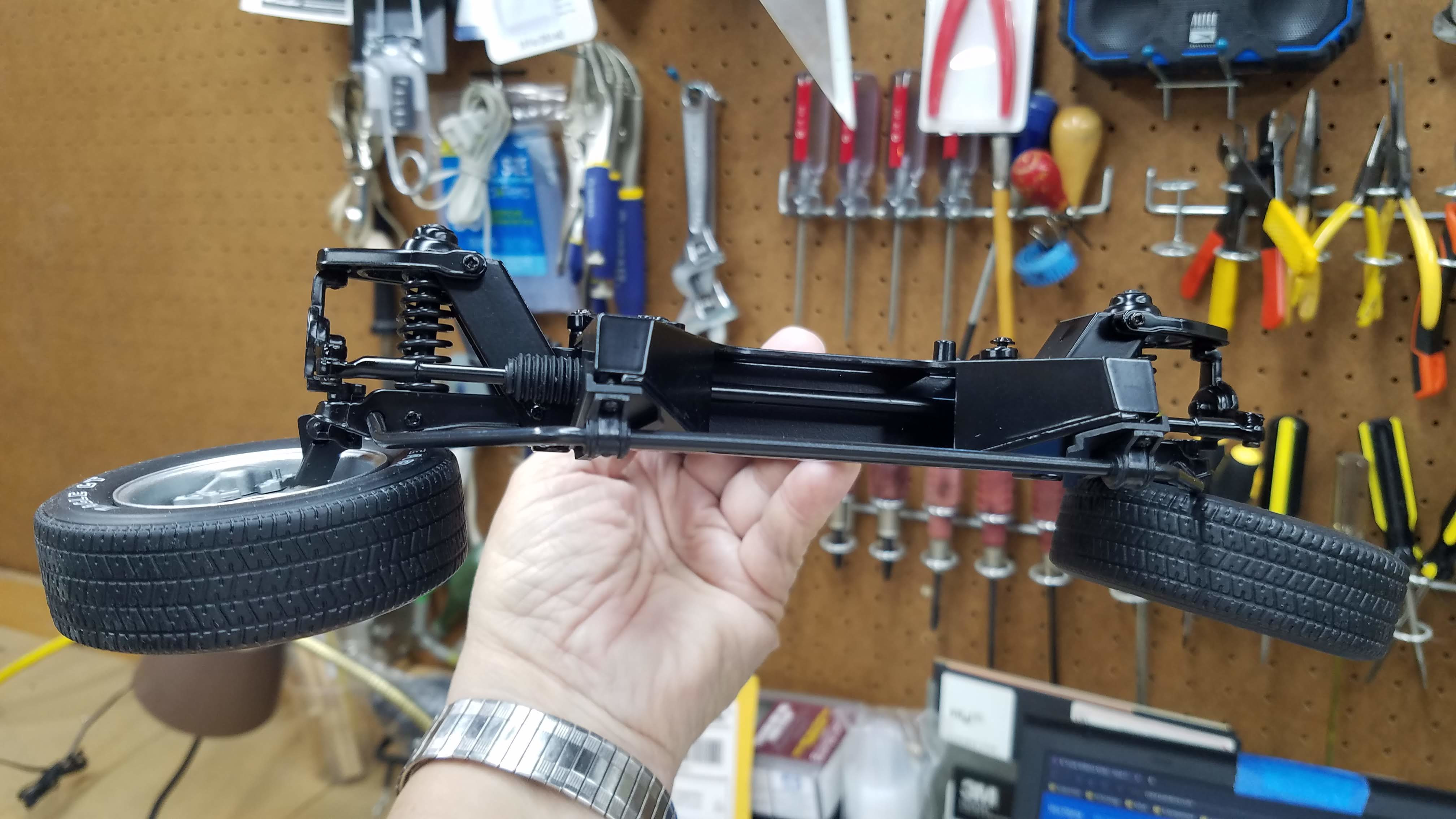

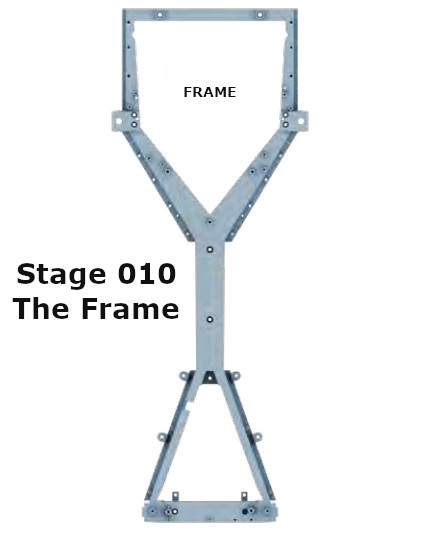

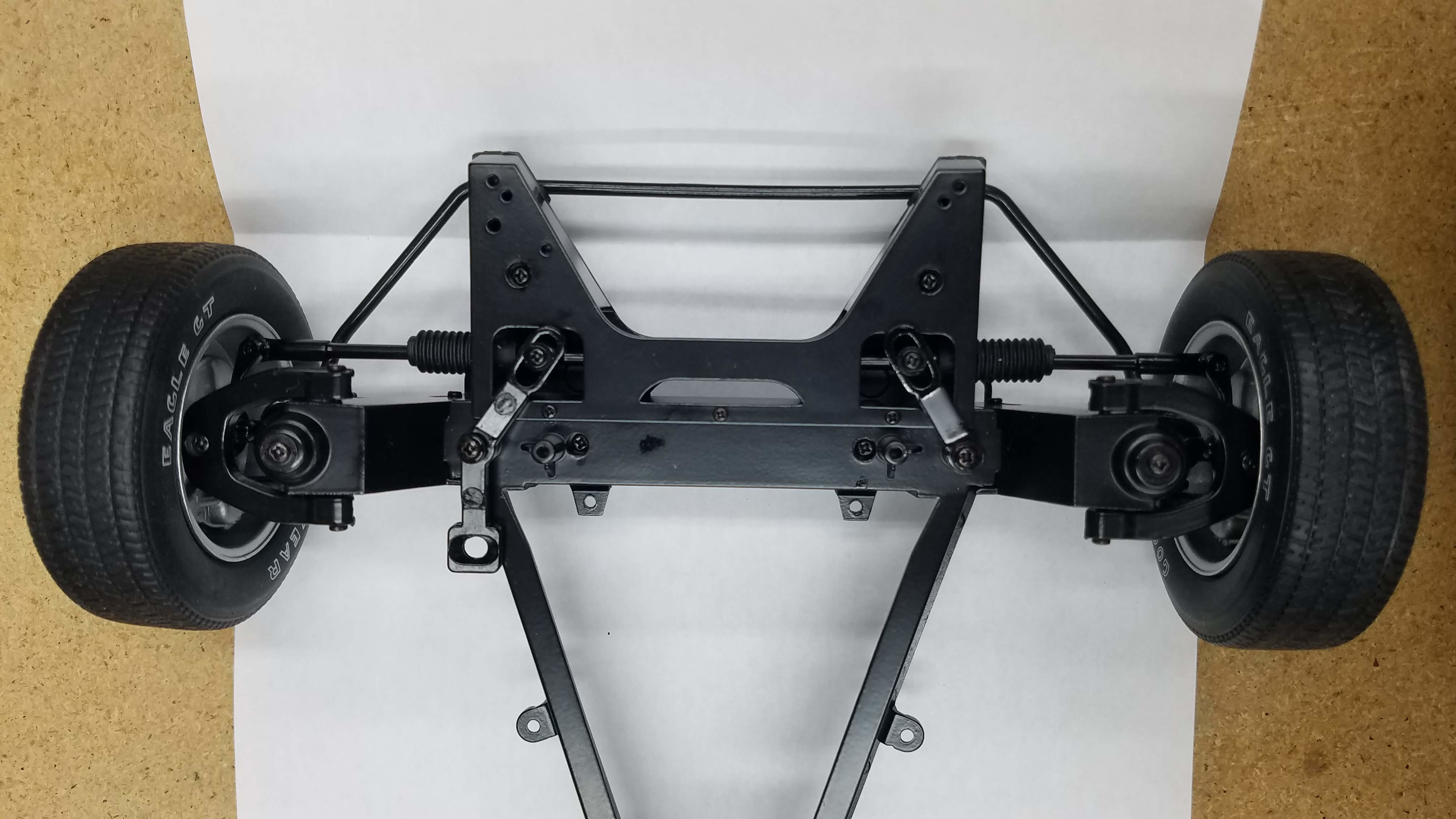

010	Stage 010 contains the frame and fixing screws. In this stage, the steering linkage, front suspension and wheels are installed that were installed in previous stages. Return to the stage navigation menu	Stage 010 contains only the frame and the screws that will be required later. Parts included: Frame, (4) AP Screws, (4) GM Screws, (6) DM Screws, (4) BM Screws and (3) AM Screws. Click this link to view a photo of the parts, excluding the screws, to complete Stage 010	Click to view the finished stage 010 tire and wheel Click to view the finished stage 010 tire and wheel Click to view the finished stage 010 tire and wheel

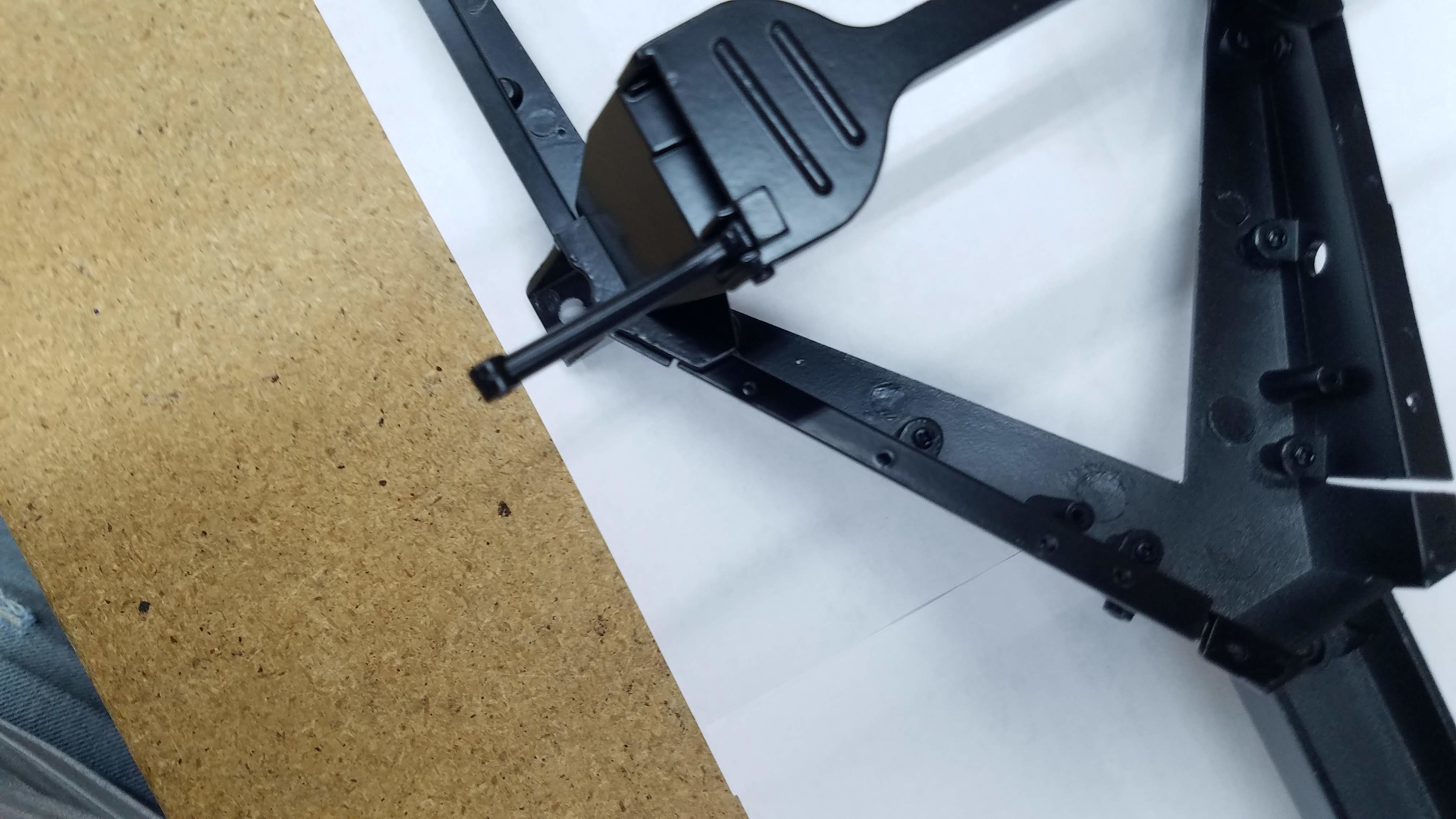

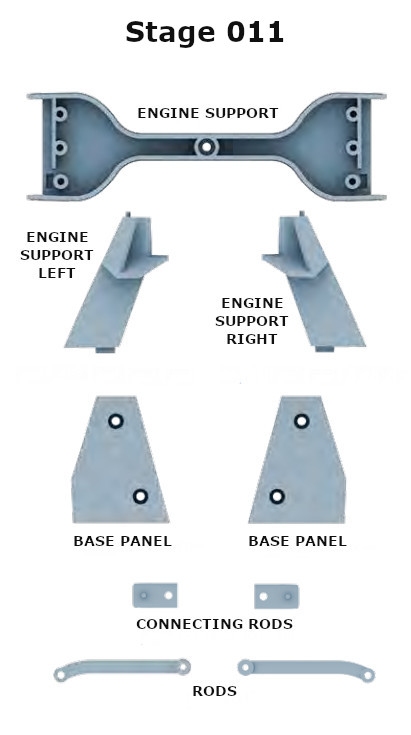

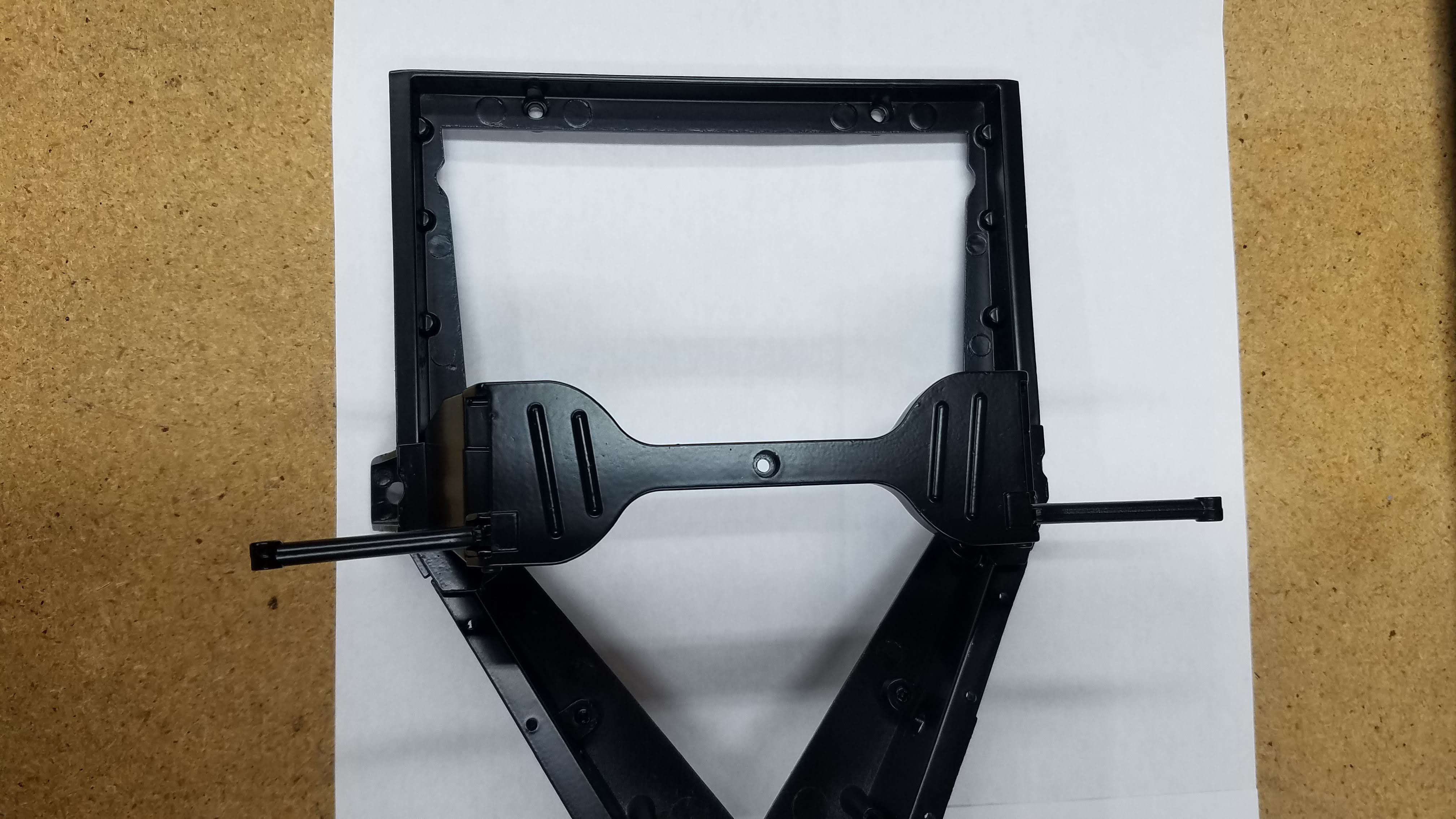

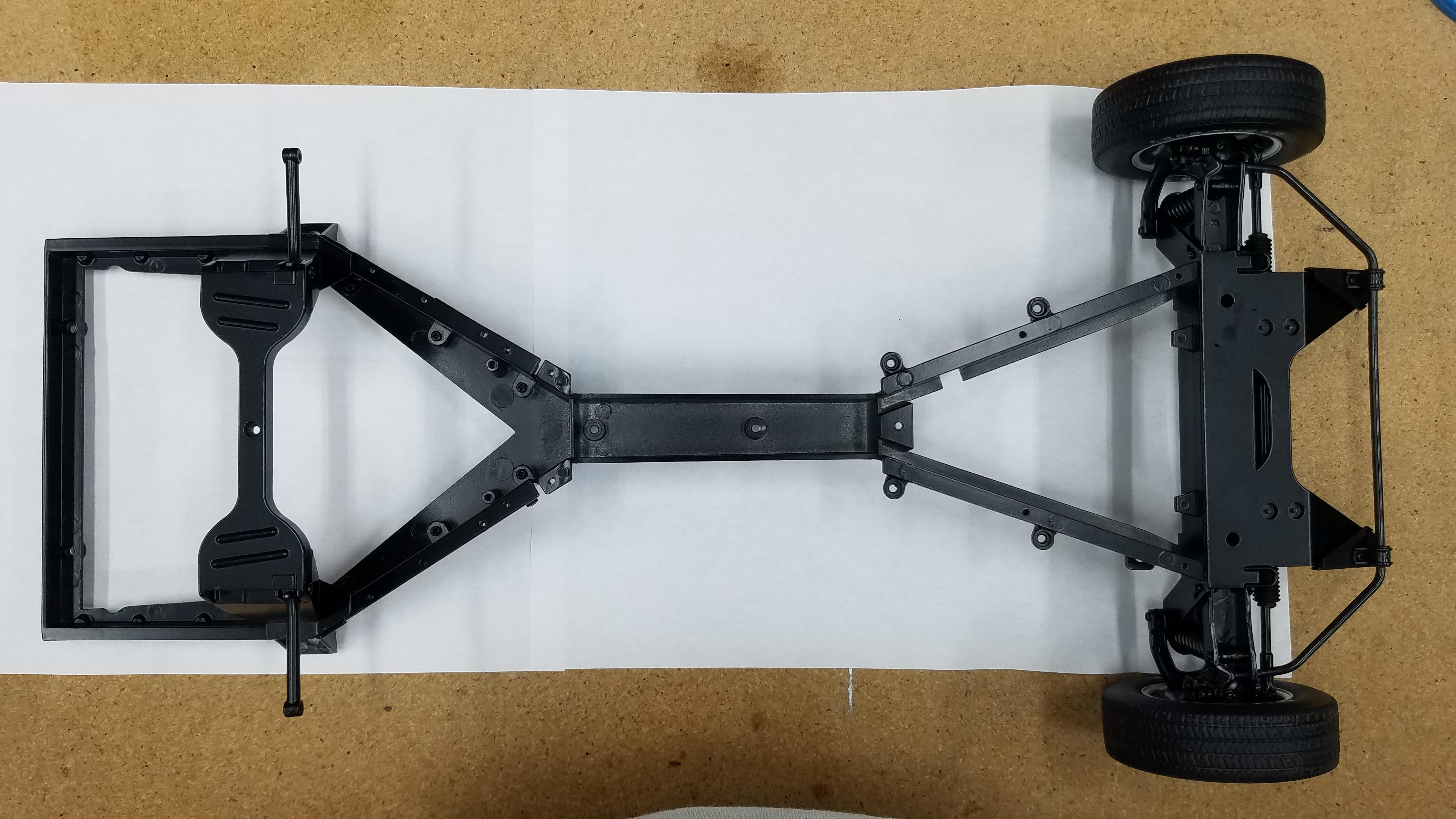

011	Stage 011 contains the parts for the Engine Support Cross Member, the Engine Support Left, the Engine Support Right, the Base Panel Left, the Base Panel Right, (12) DM Screws and (2) HM Screws. Return to the stage navigation menu	Stage 011 contains the engine support Click this link to view a photo of the parts, excluding the screws, to complete Stage 011	Click to view the finished stage 011 Engine Mount and Connecting Rods Click to view the finished stage 011 Engine Mount and Connecting Rods Click to view the finished stage 011 Engine Mount and Connecting Rods

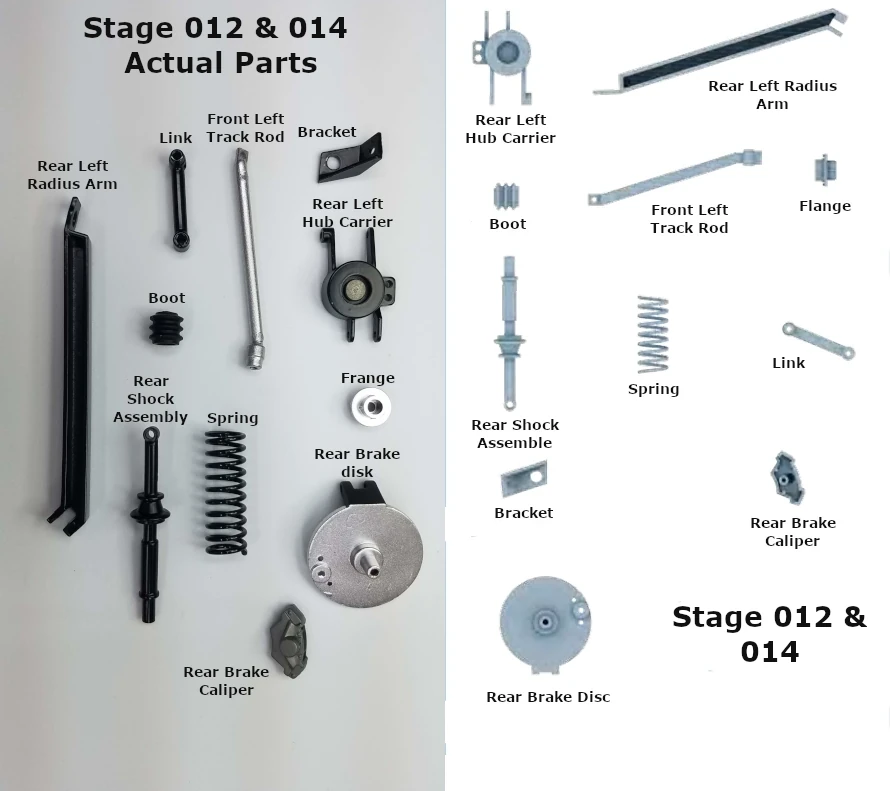

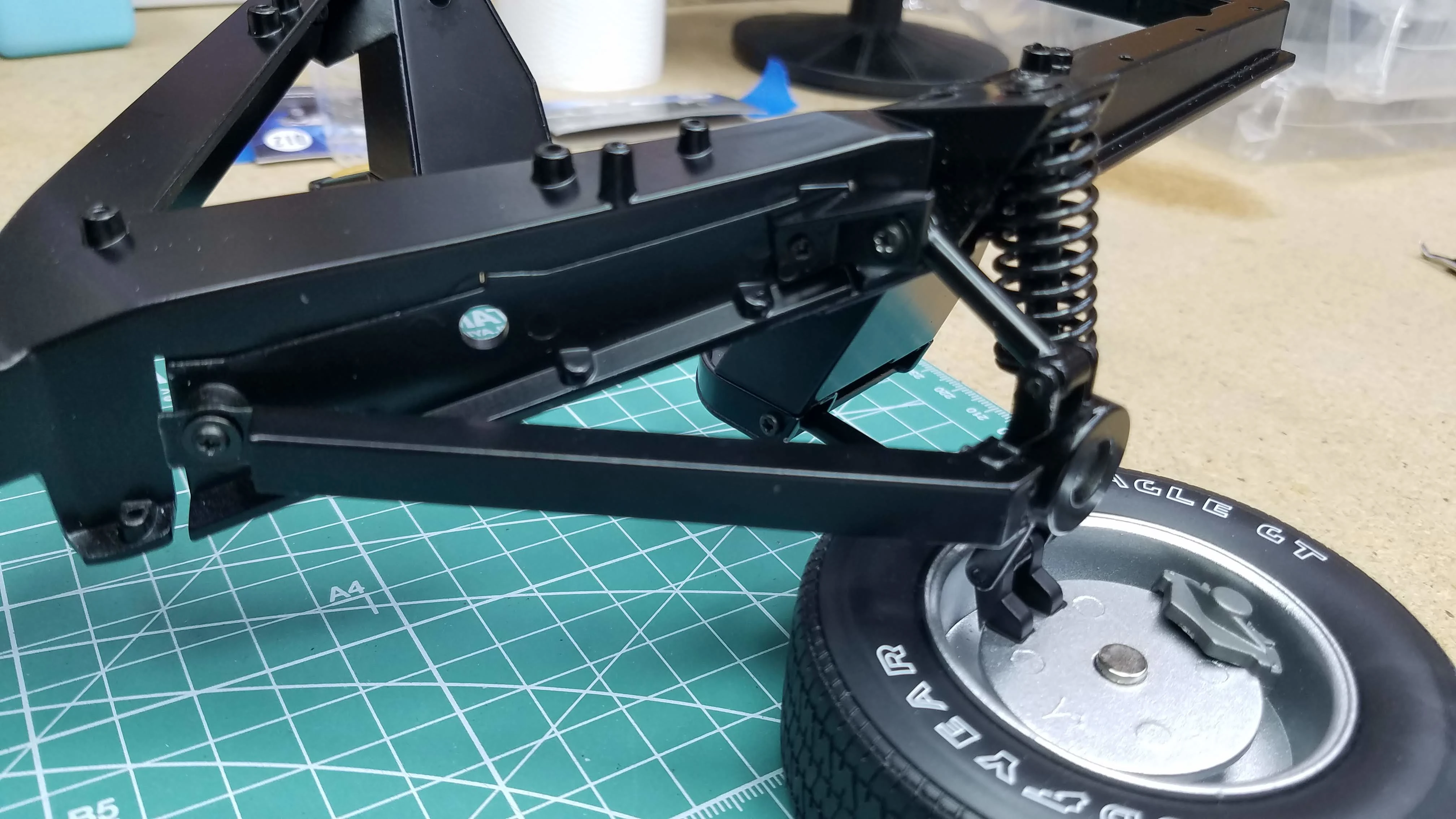

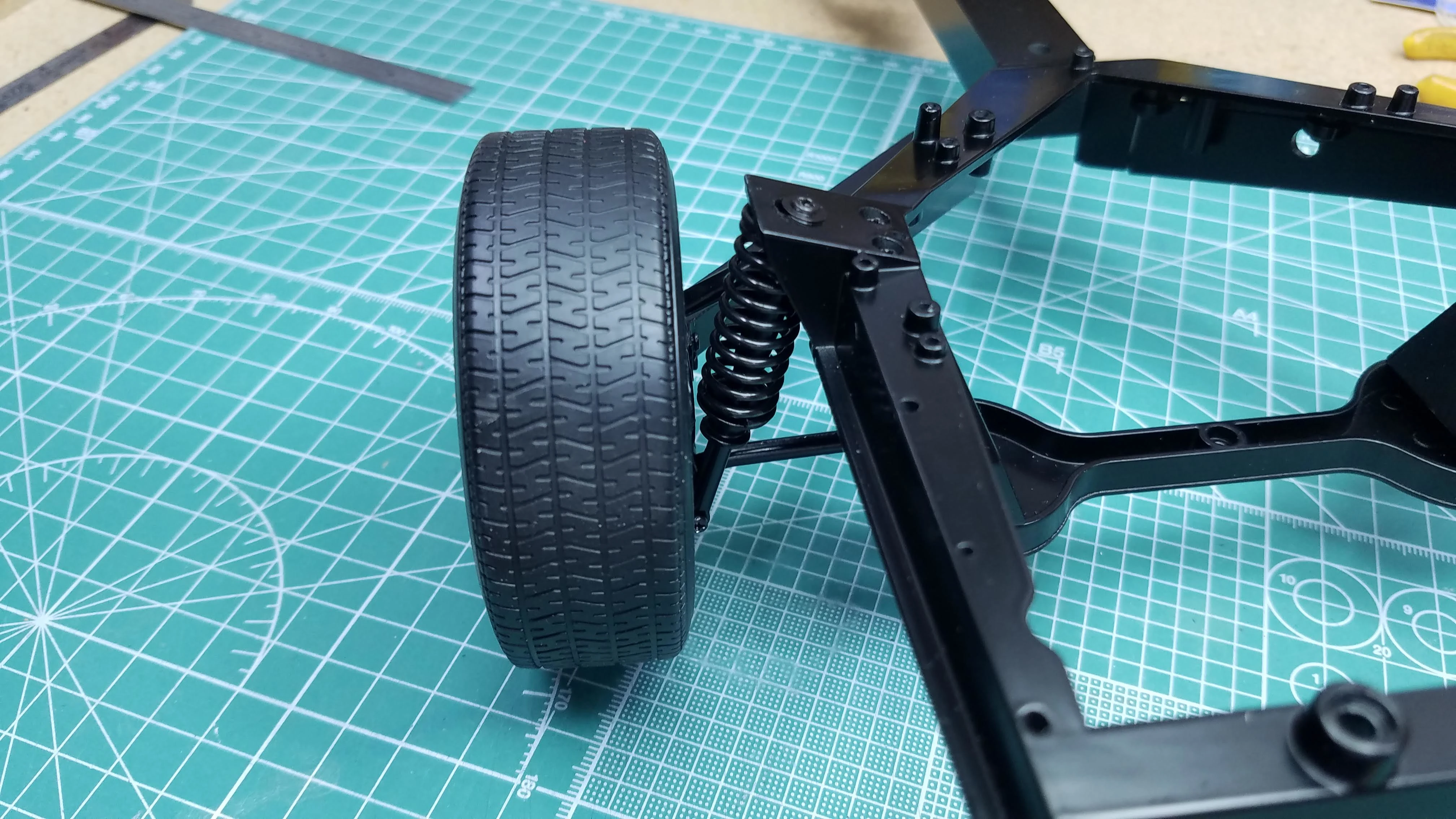

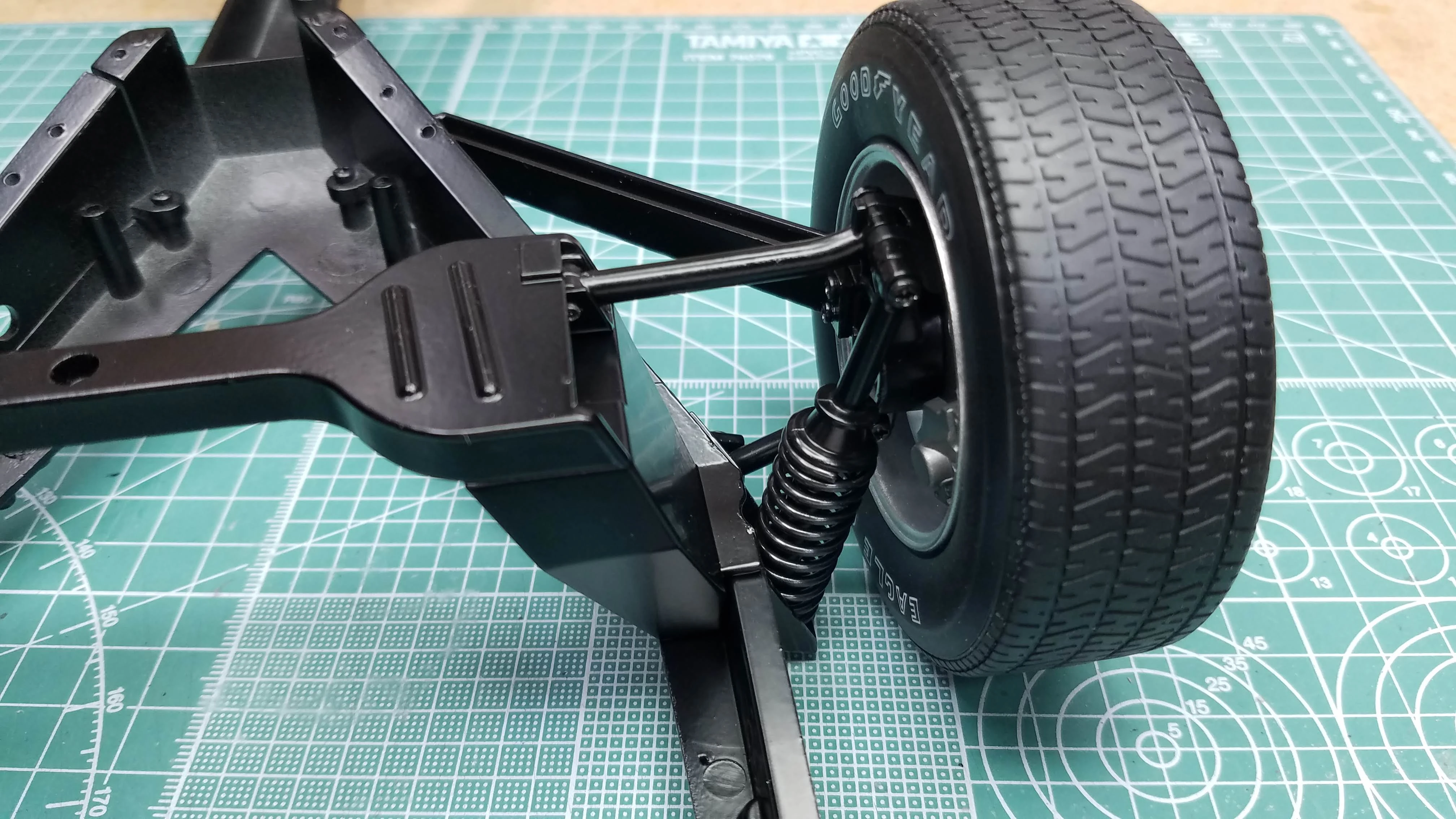

012 & 014	Stage 012 & 014 contains the parts for the Rear Left and Right Hub Carriers, Rear Left and right Radius Arms, Boots, Front Left & Right Track Rods, Flanges, Rear Shock Assemblies, Springs, Links, Brackets, Rear Brakes Calibers, Rear Brake Disks, (4) BM Screws, (4) CM Screws, (2) HM Screw3, (6) EM Screws, (4) AP Screws, (2) IM Screw3. Return to the stage navigation menu	Stage 012 & 014 contains the parts for the rear left and right wheel hub and suspension, plus fixing screws Click this link to view a photo of the parts, excluding the screws, to complete Stage 012 & 014. The image on the left is a photo of the actual parts. The image of the right is from the Stage 12 Magazine.	The image of these assembled parts will be shown in a later stage.

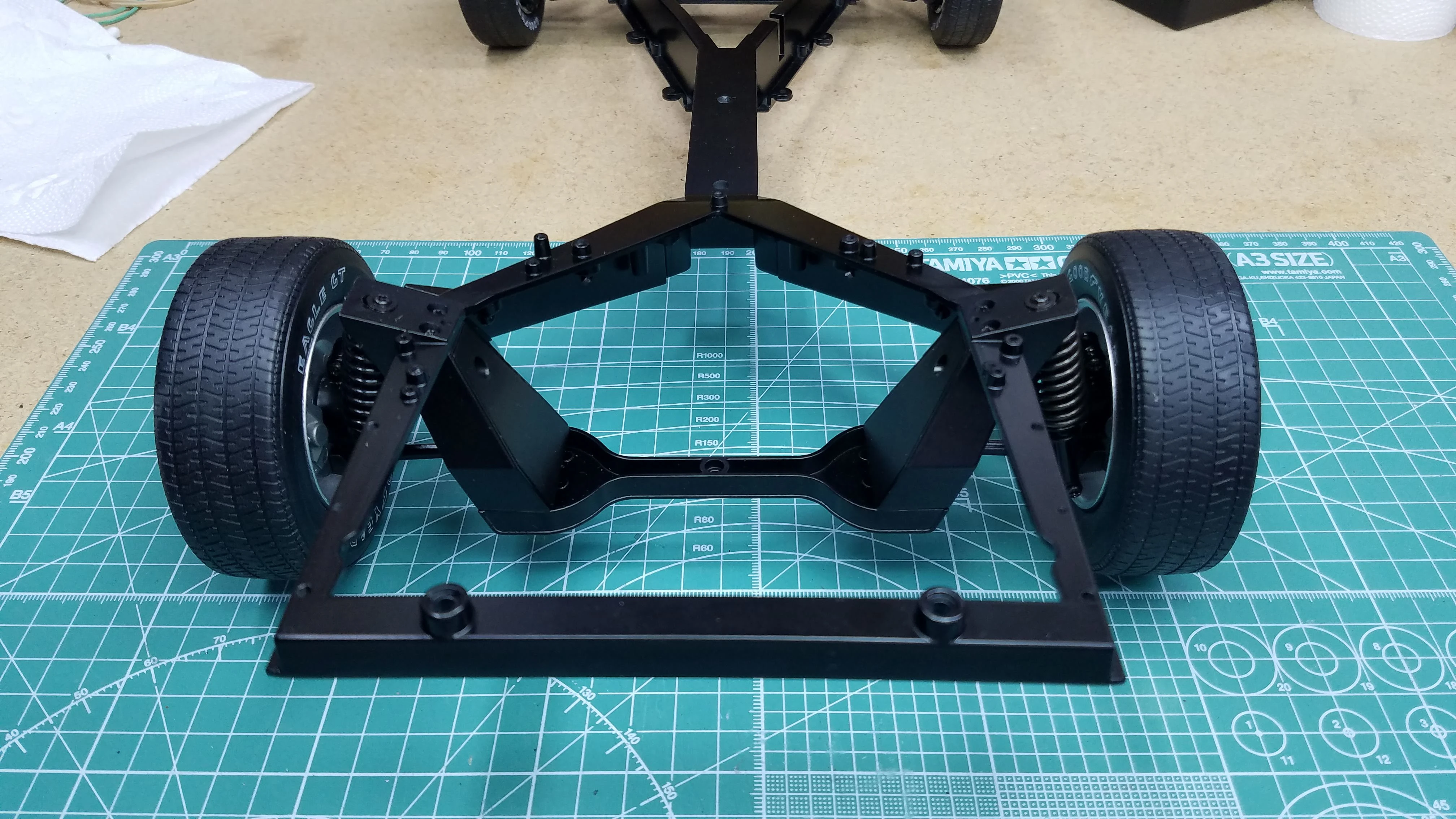

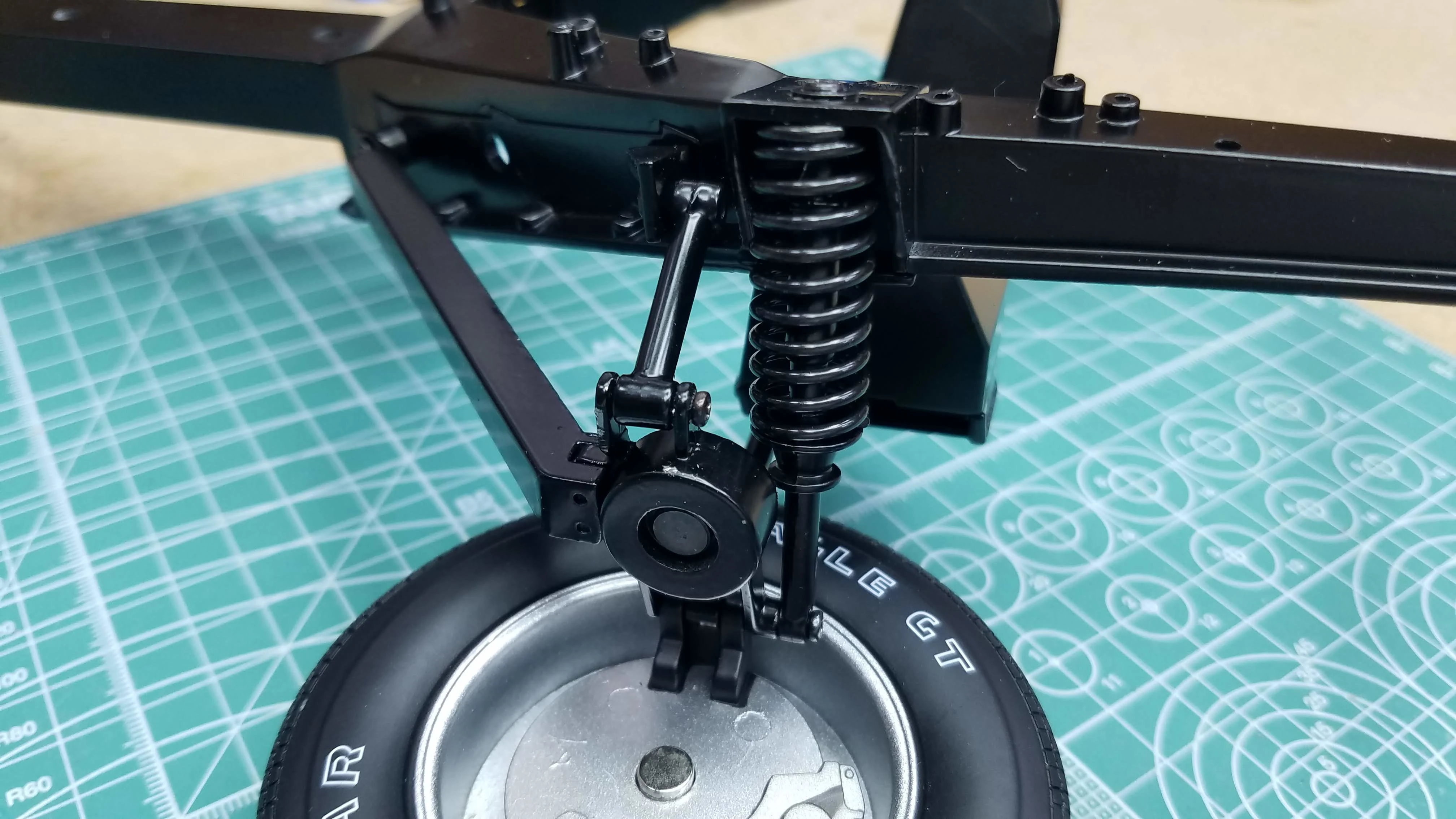

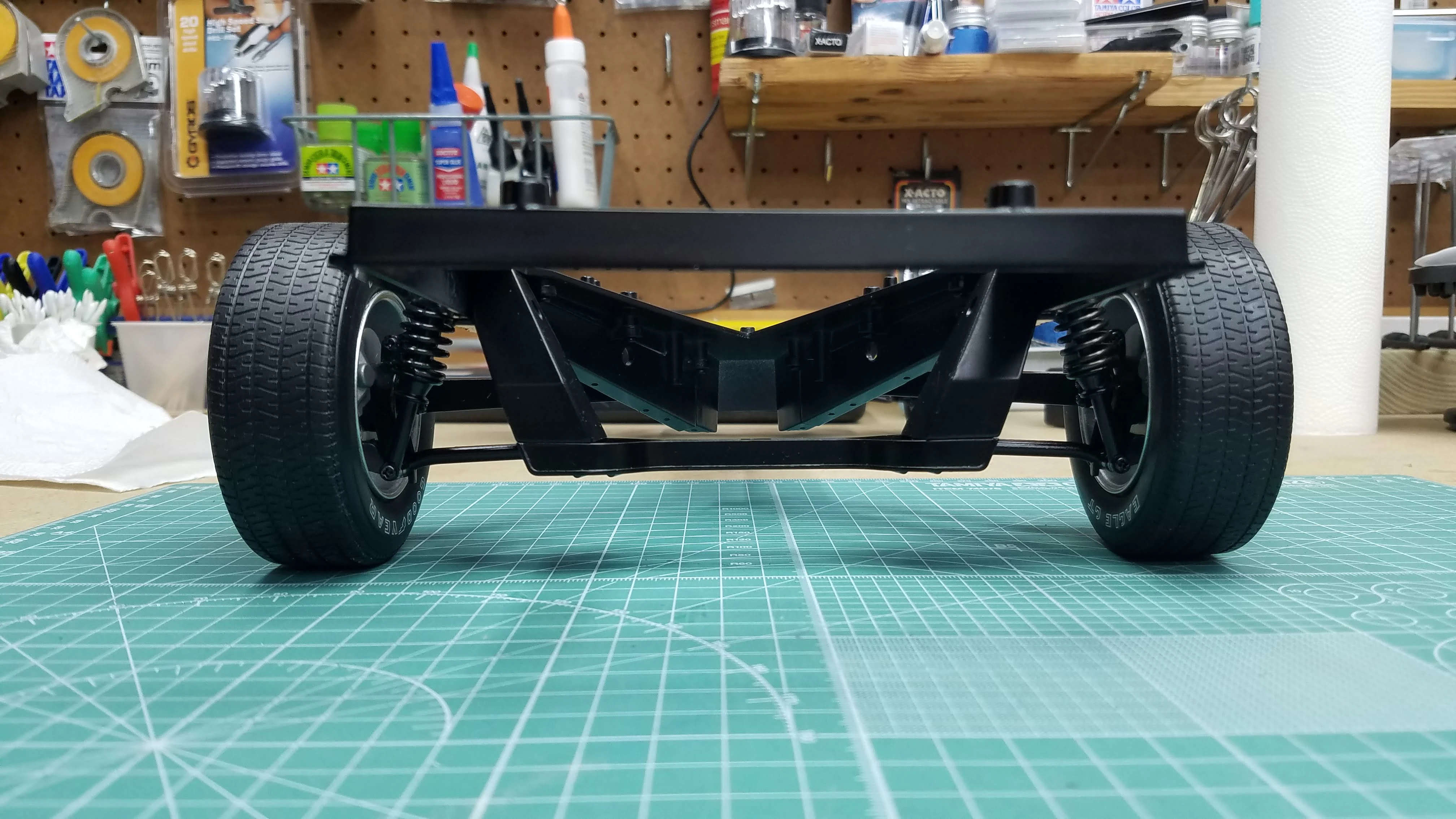

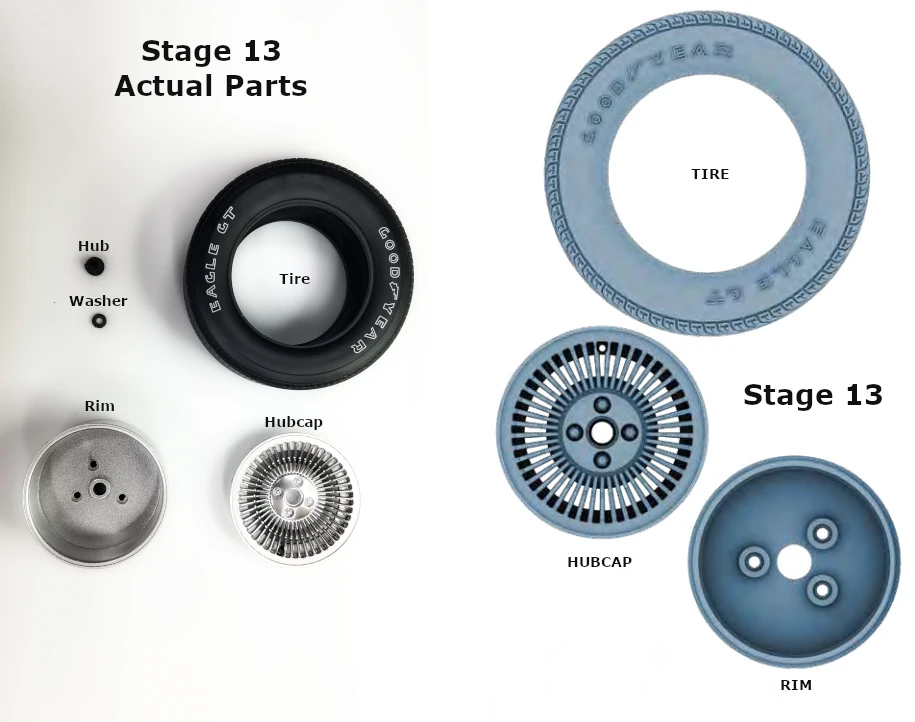

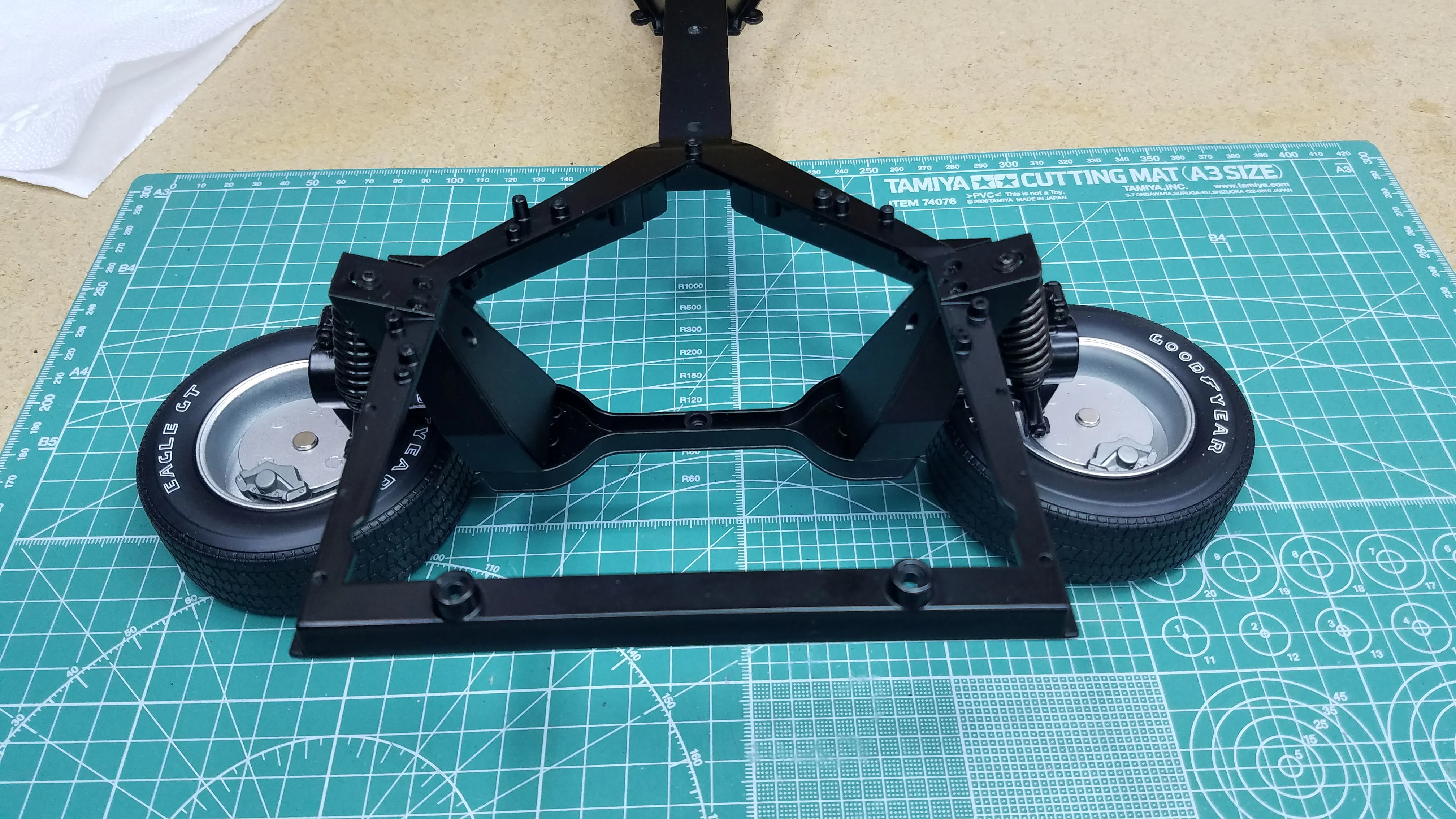

013 & 015	Stage 013 & 015 contains the parts for the rear wheels, includes the tires, rims, hubcaps, hubs, washers, (6) BP Screws and (2) GM Screws. Return to the stage navigation menu	Stage 013 & 015 contains the parts for the rear wheels including the Tires, Hubcaps, Rims, Washers, Hubs and (6) BP Screws and (2) GM Screws. Do not install the washers and hubs at this time, even thought the instructions tell you to do so. It will have to be removed in a later stage. Therefore; store them in a safe place. After Stage 015, most of the rear suspension will have been assembled. The completed stages 012 to 015 are shown in the photos in the column to the right. Click this link to view a photo of the parts, excluding the screws, to complete Stage 015. The image on the left is a photo of the actual parts. The image of the right is from the Stage 15 Magazine.	Click to view the finished stage 003 tire and wheel Click to view this view of the finished stage 012 - 015 assembly Click to view this view of the finished stage 012 - 015 assembly Click to view this view of the finished stage 012 - 015 assembly Click to view this view of the finished stage 012 - 015 assembly Click to view this view of the finished stage 012 - 015 assembly Click to view this view of the finished stage 012 - 015 assembly Click to view this view of the finished stage 012 - 015 assembly

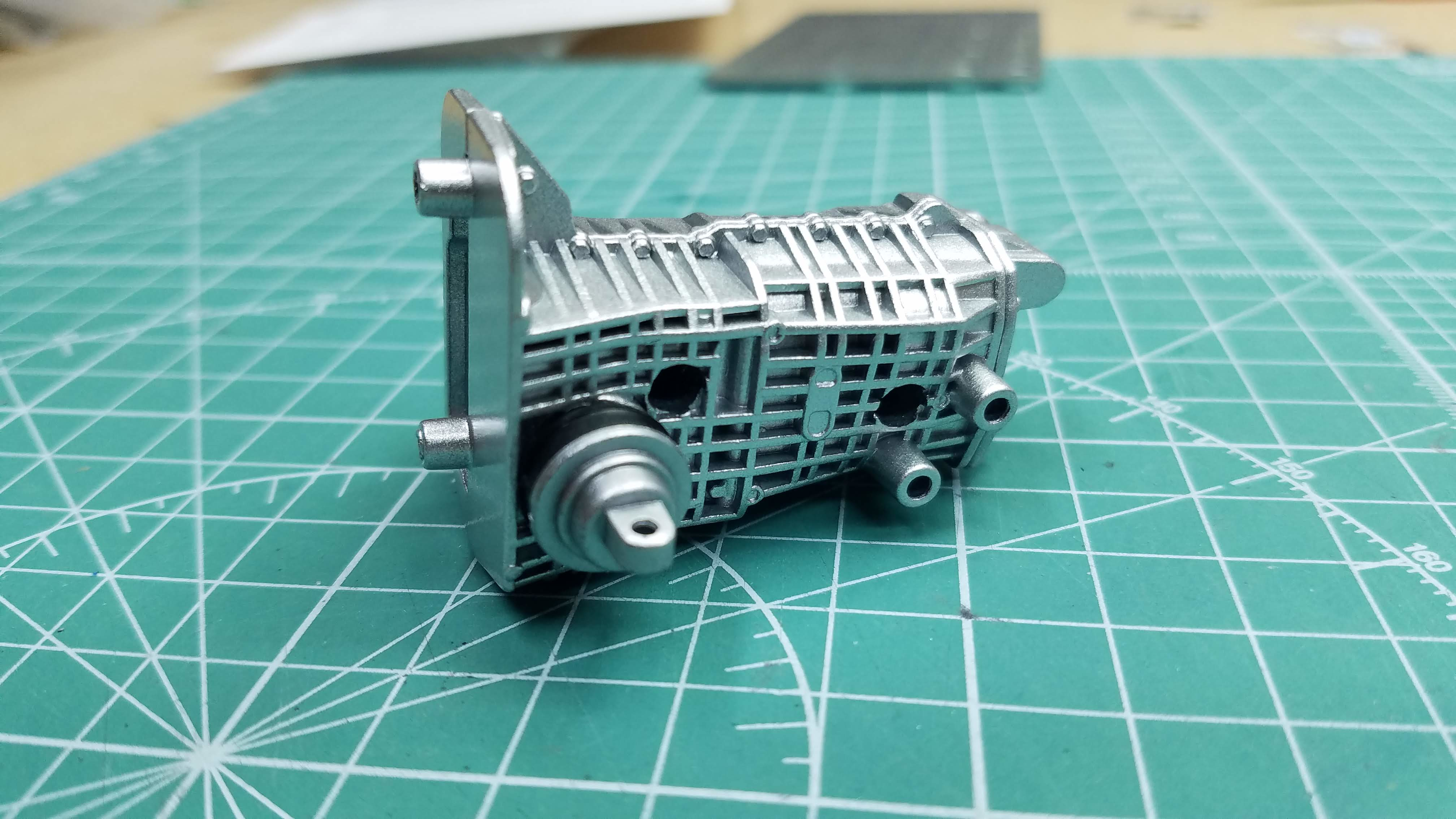

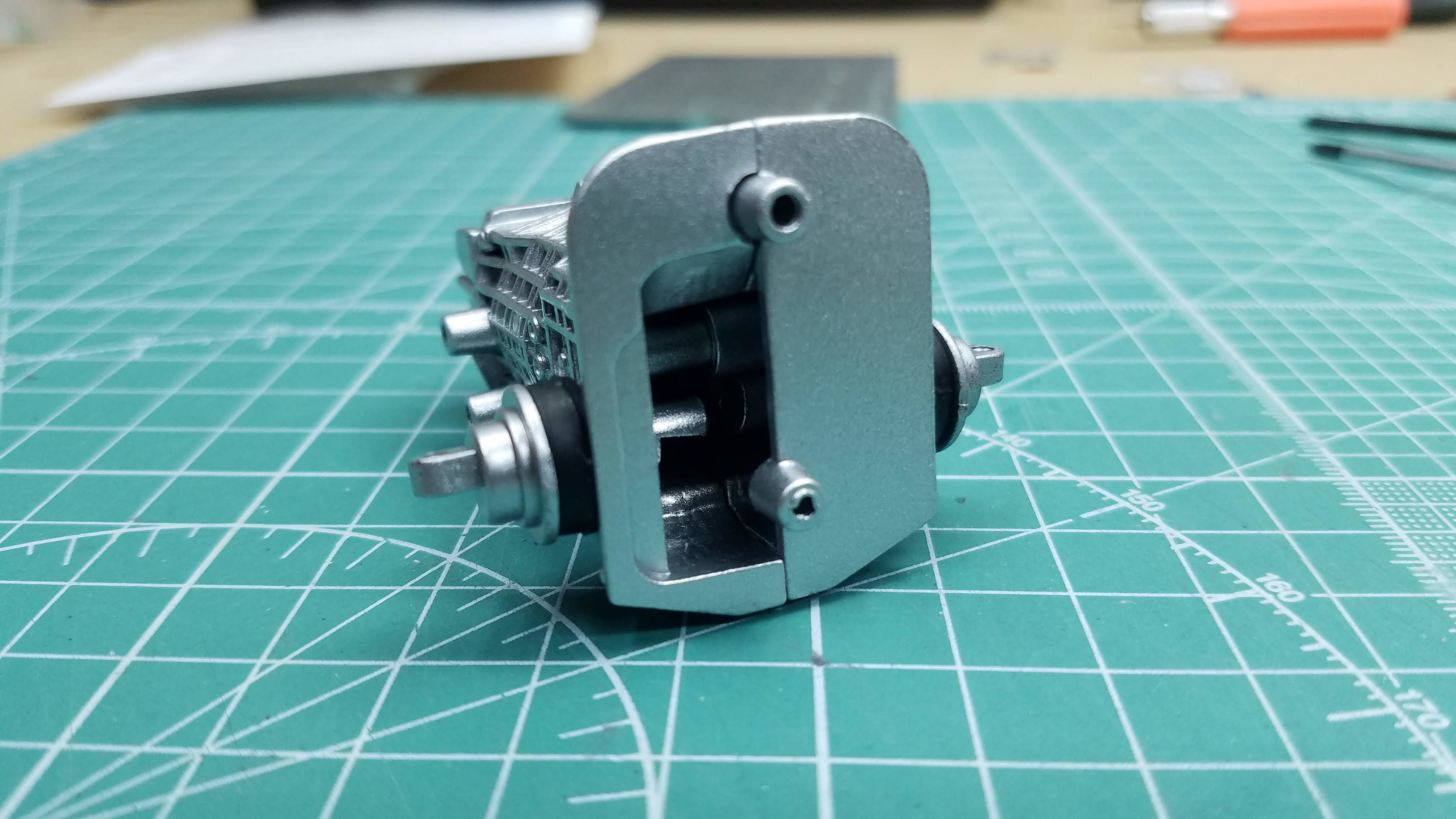

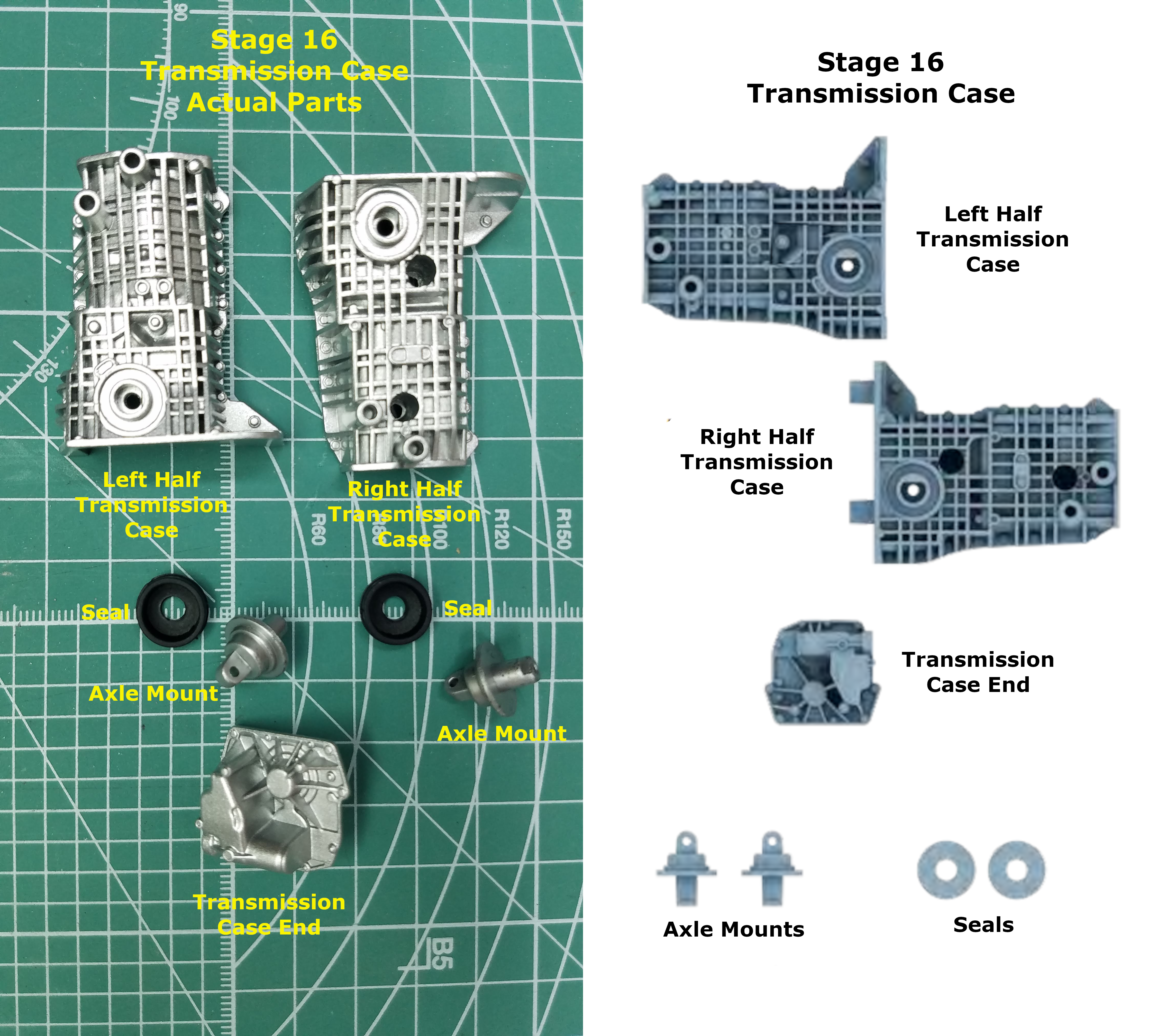

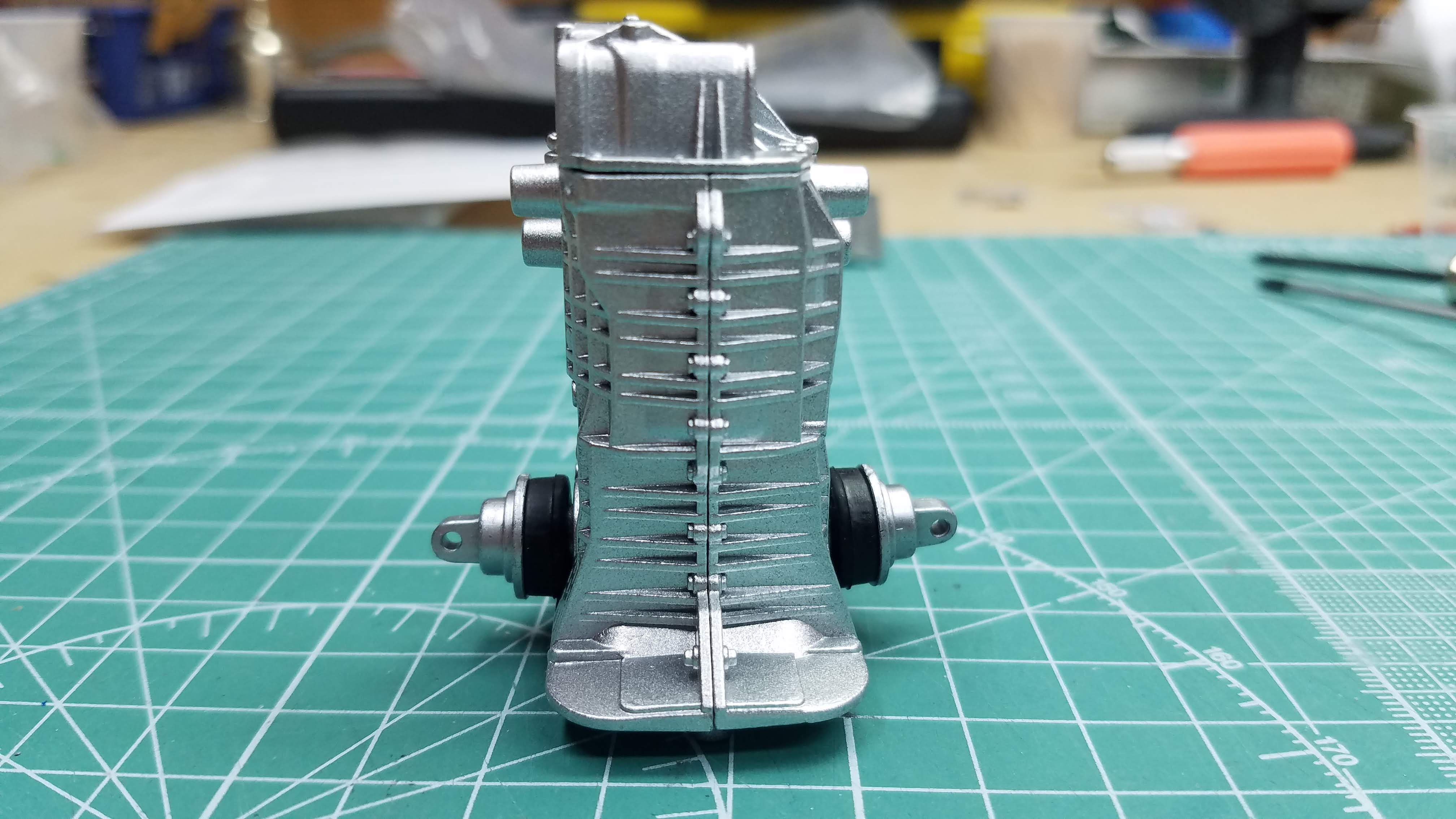

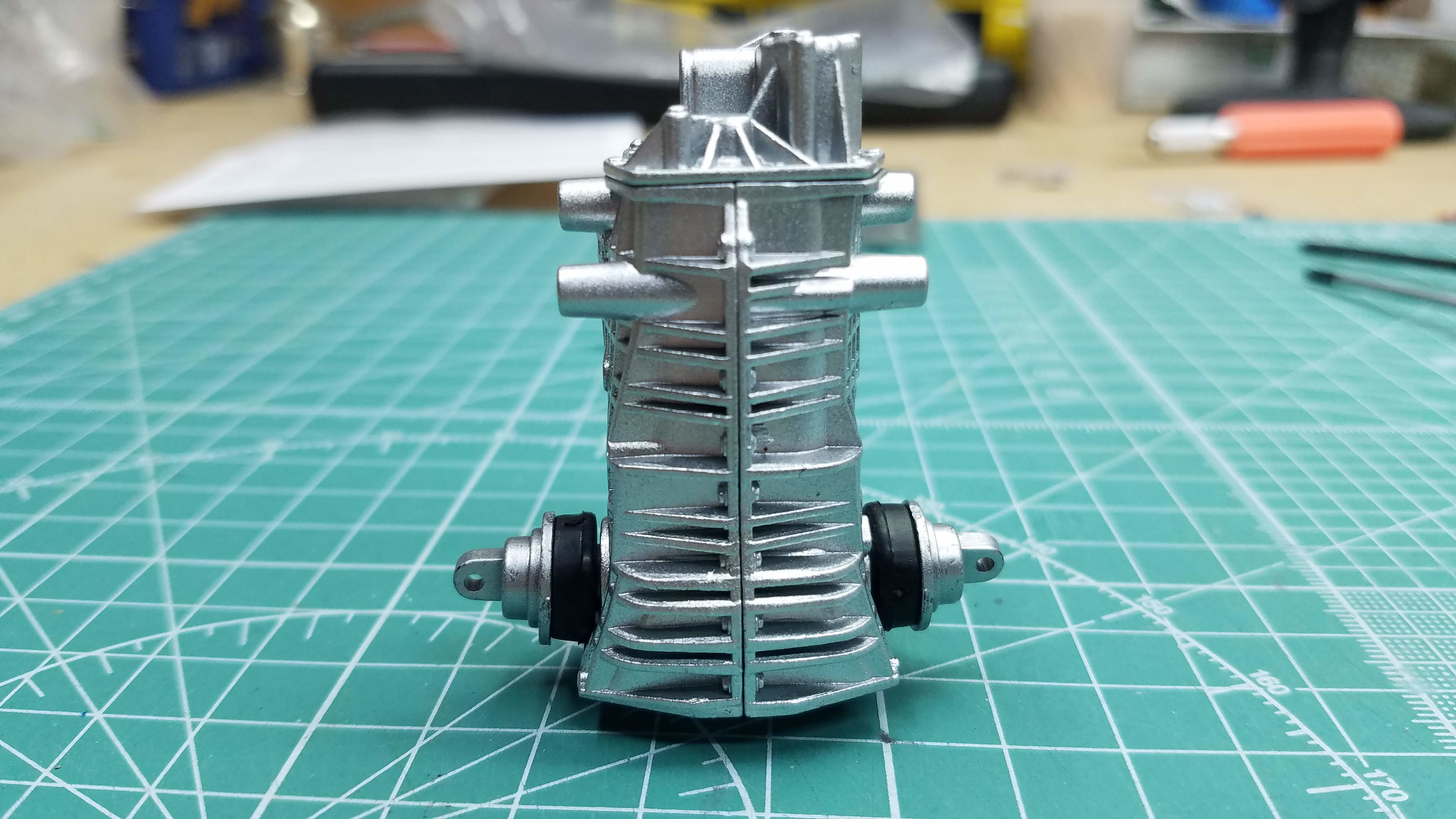

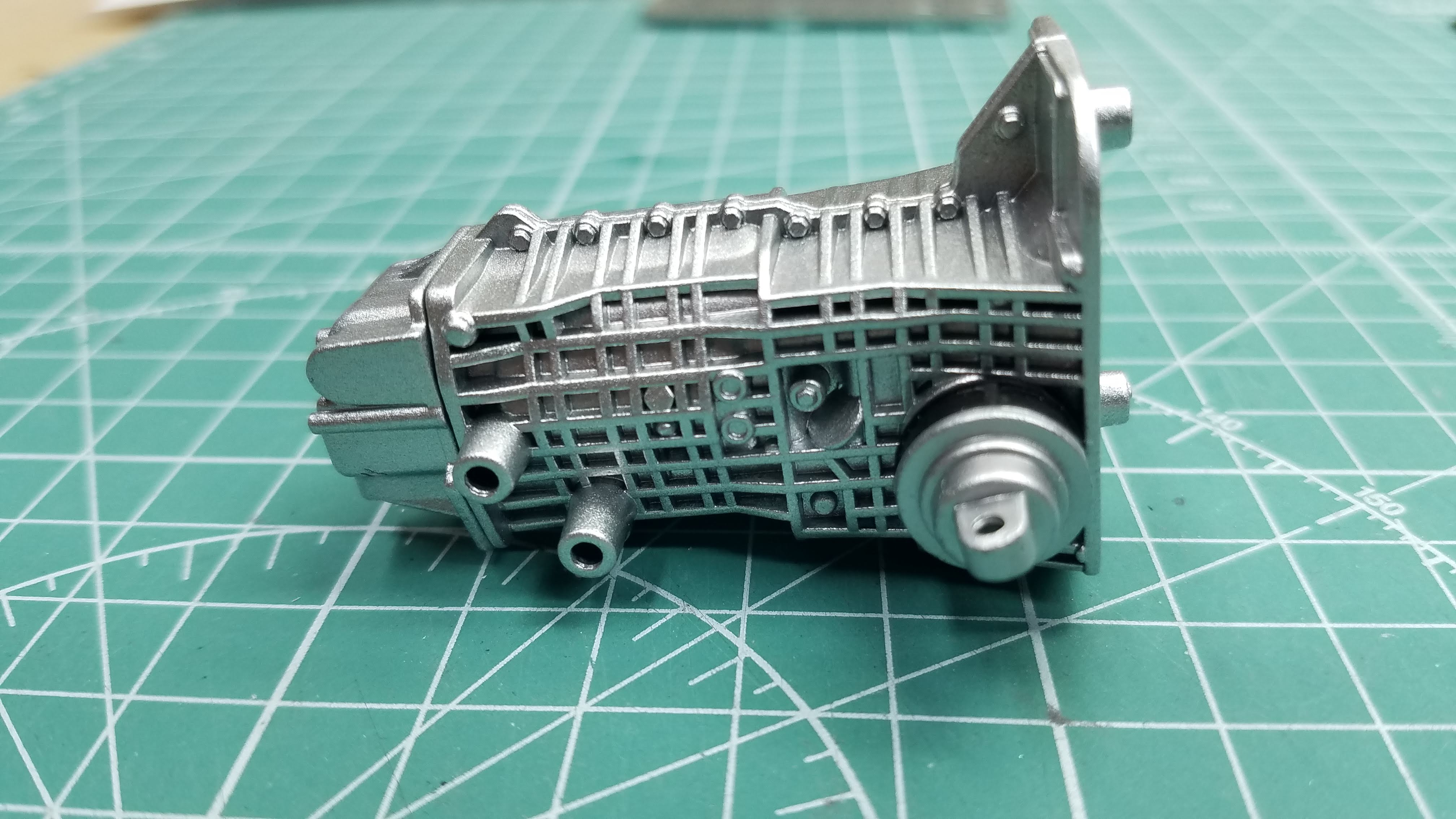

016	Stage 016 contains the parts for the transmission including the Left and Right Transmission Cases, the Transmission Case End, (2) Axle Mounts, (2) Rubber Seals, (2) AM Screws, (2) DM Screws, and (2) EP Screws. Return to the stage navigation menu	Click this link to view a photo of the parts, excluding the screws, to complete Stage 016. The image on the left is a photo of the actual parts. The image of the right is from the Stage 16 Magazine.	Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge

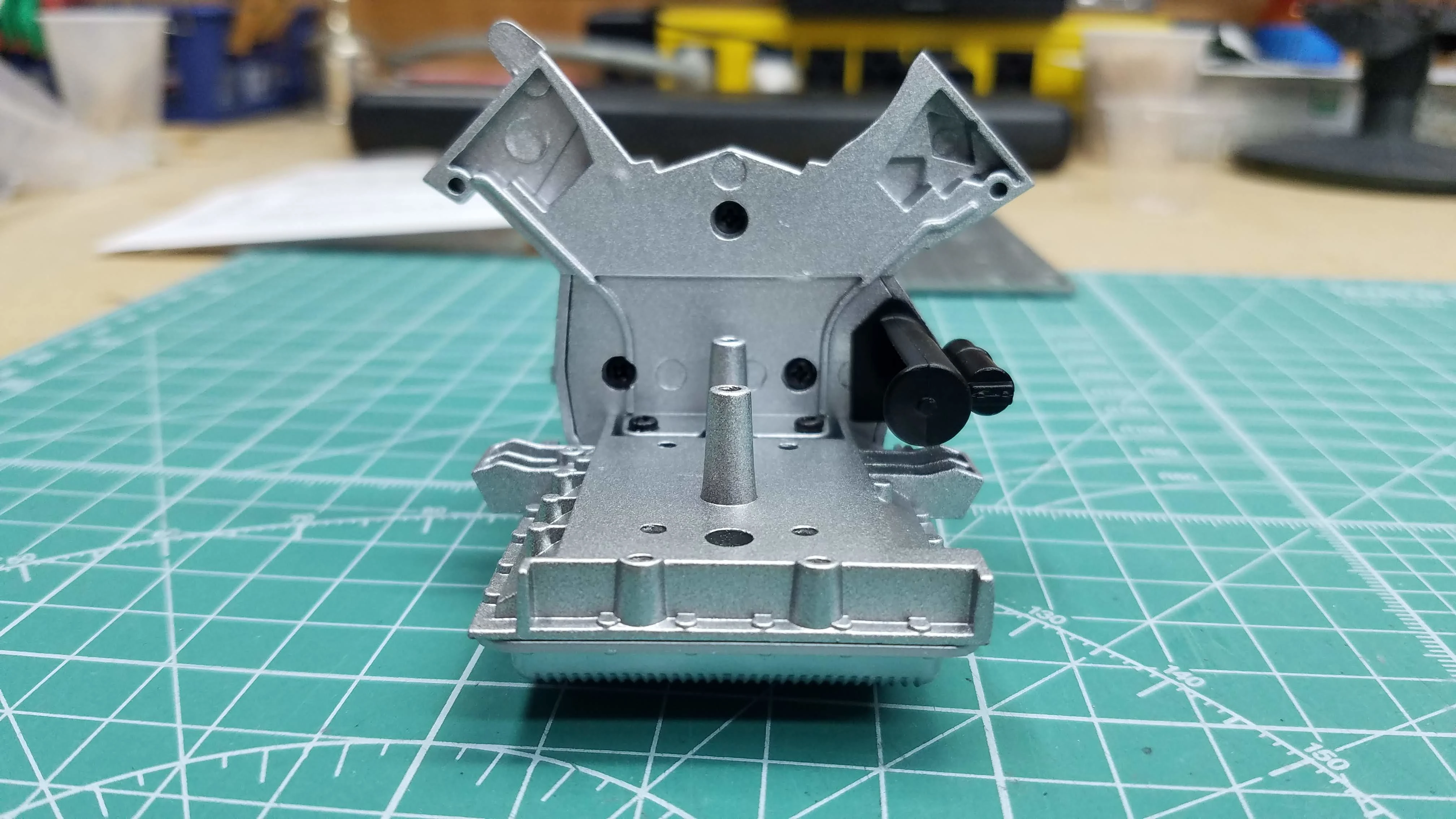

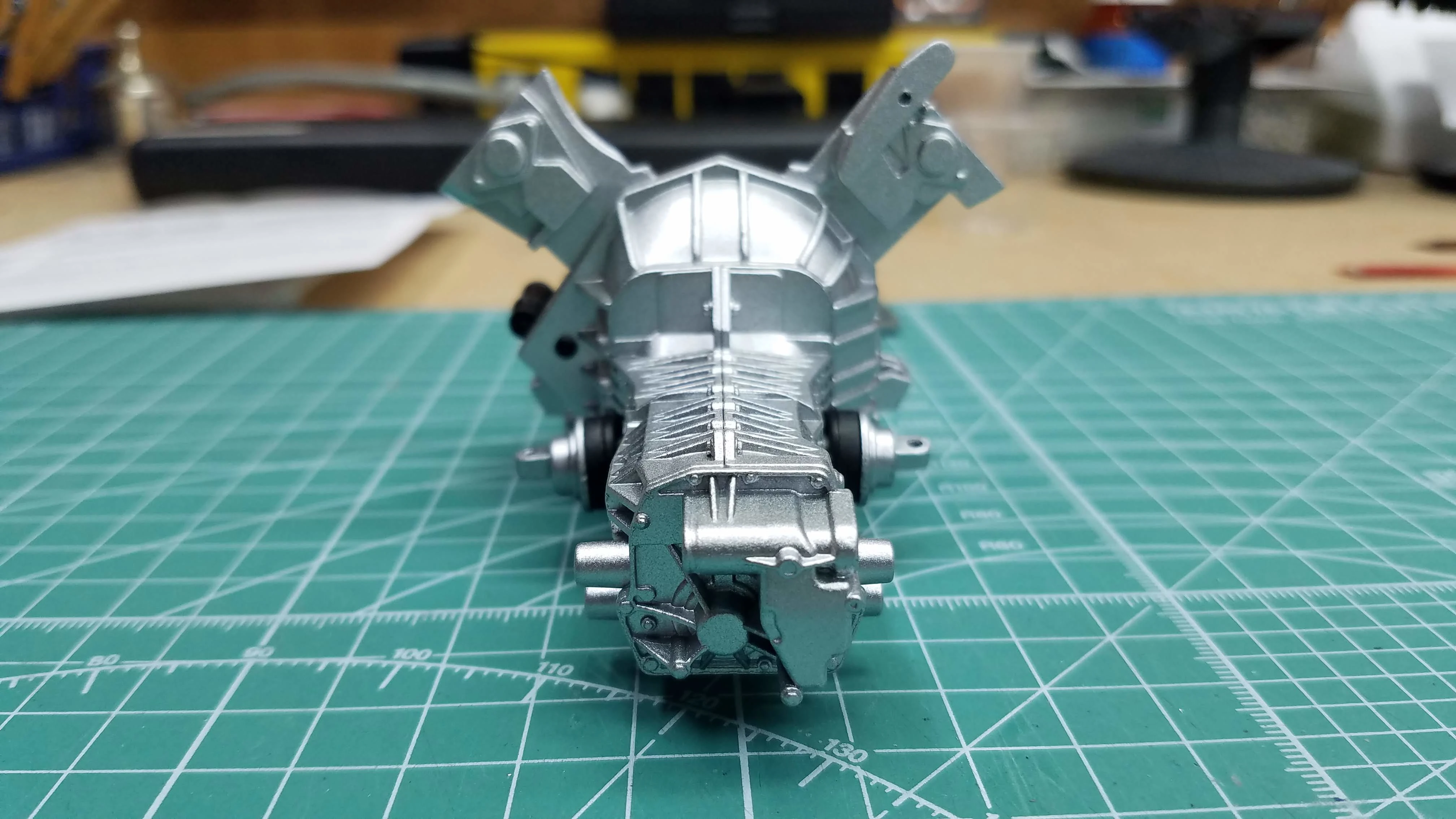

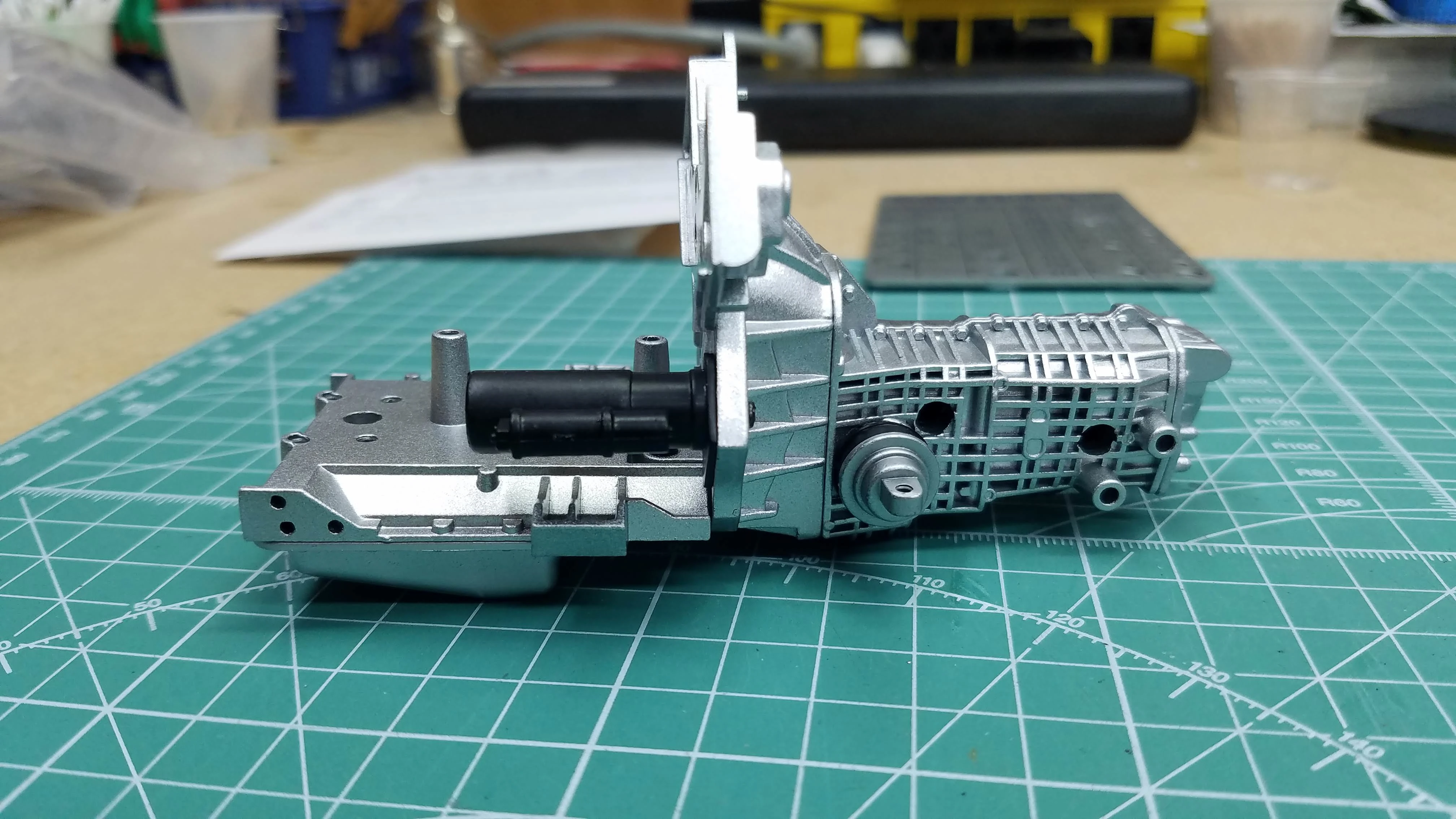

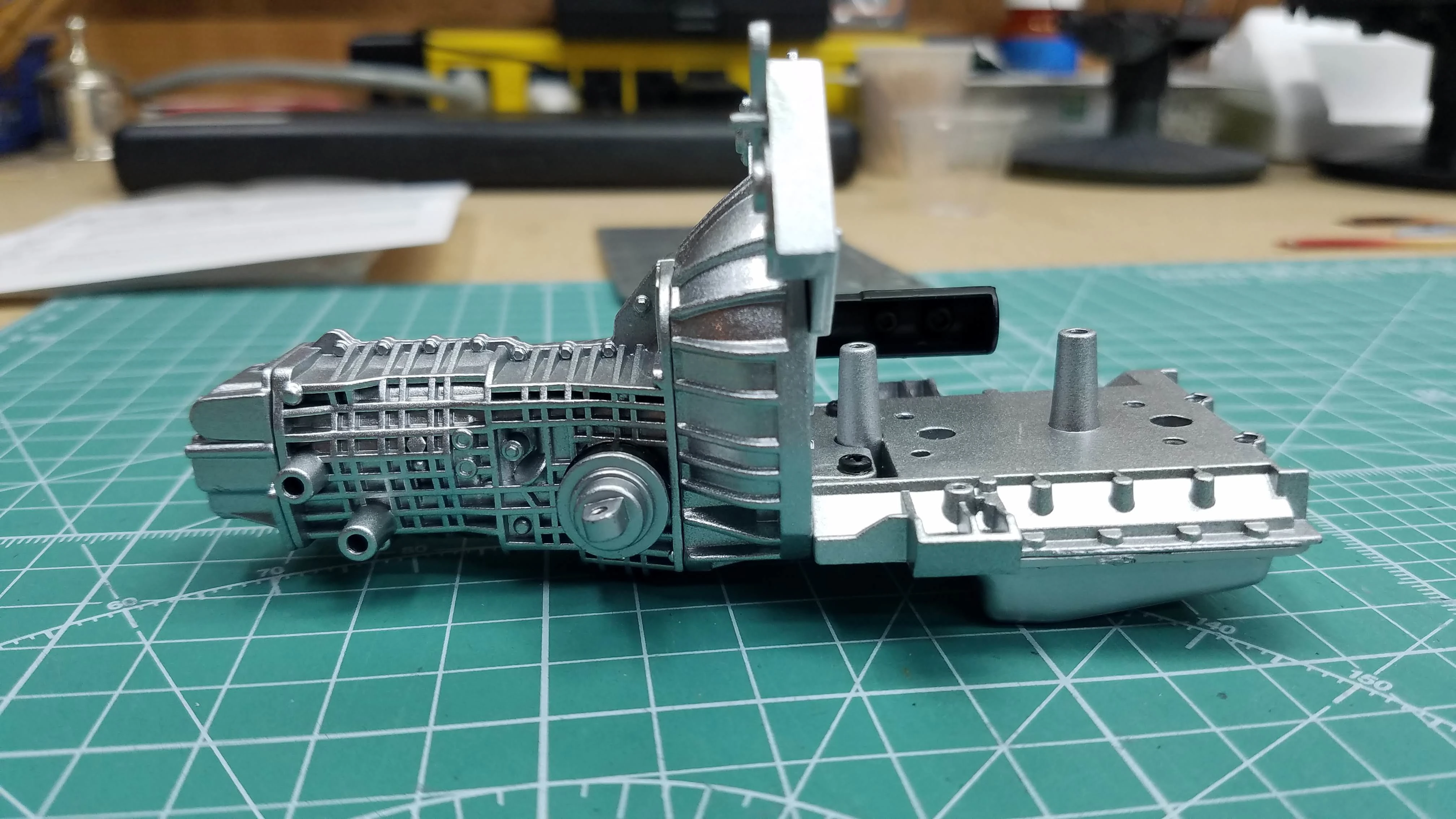

017	Stage 017 contains the parts for the engine and transmission case including the Engine Bottom, Sump Pan, Engine Front, Starter 1 (Starter Motor), Starter 2 (Solenoid), (2) JM Screws, (2) FP Screws, (5) DP Screws, (1) AP Screw. Return to the stage navigation menu	Click this link to view a photo of the parts, excluding the screws, to complete Stage 017. The image on the left is a photo of the actual parts. The image of the right is from the Stage 17 Magazine.	Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge

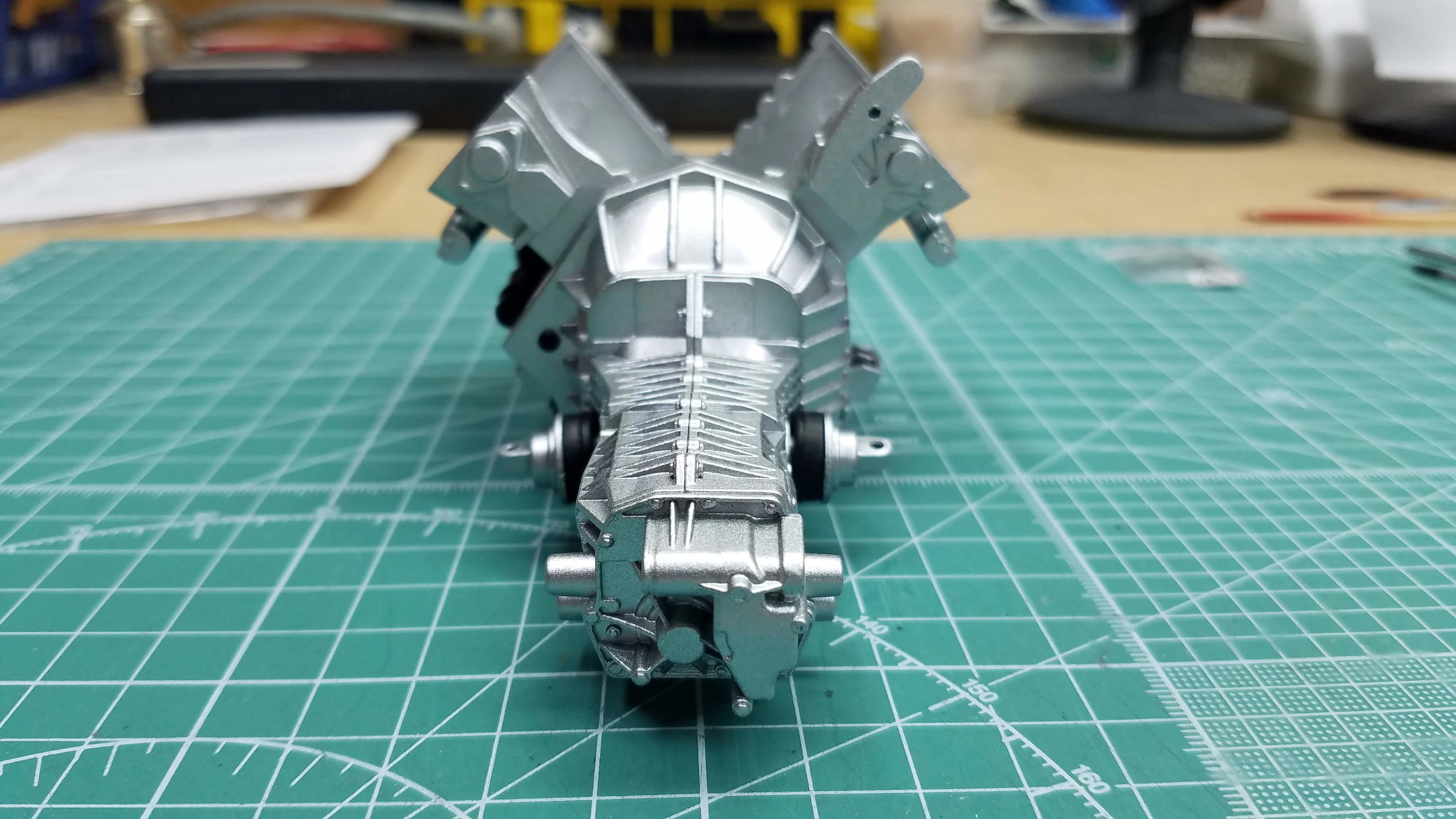

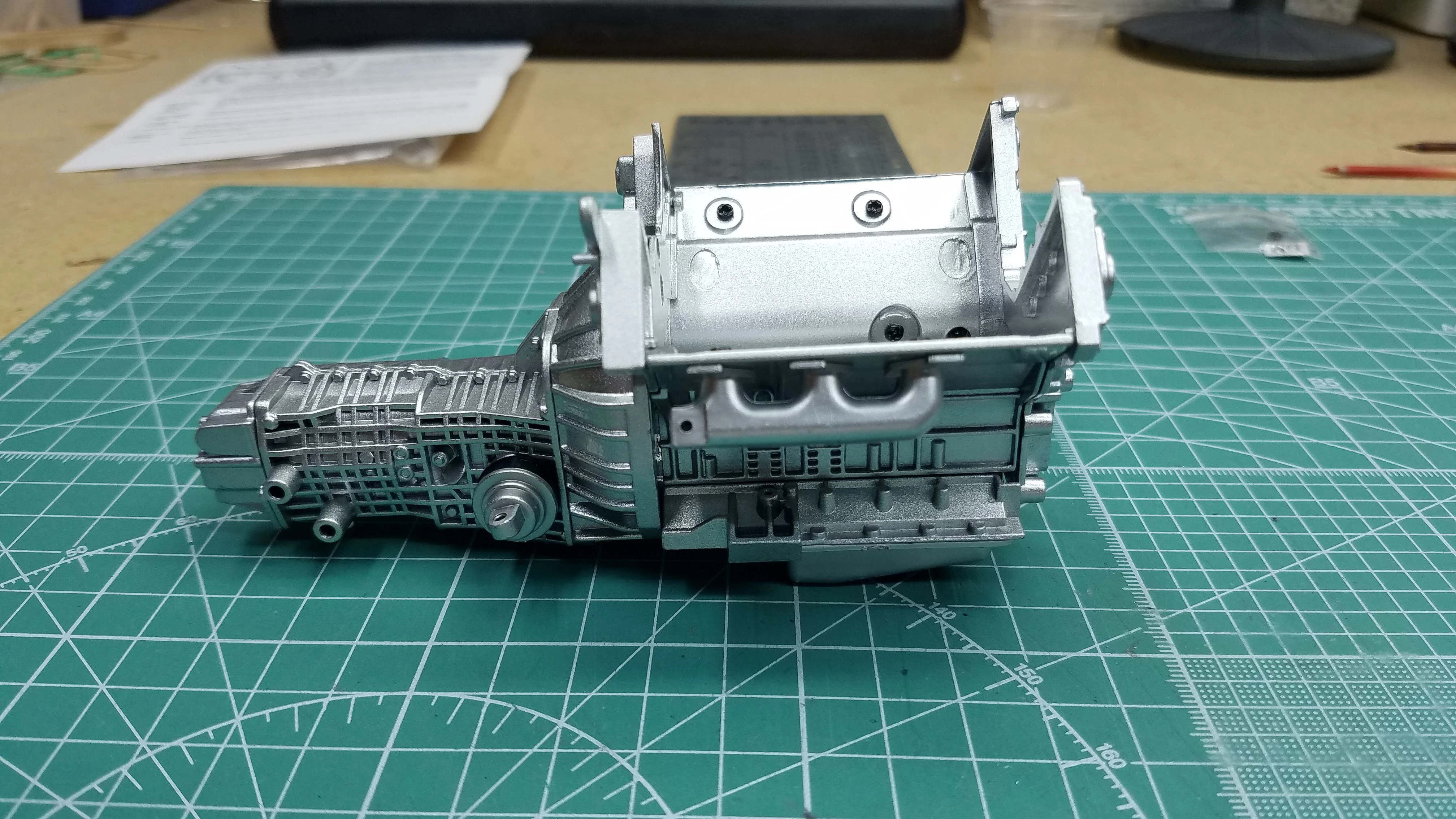

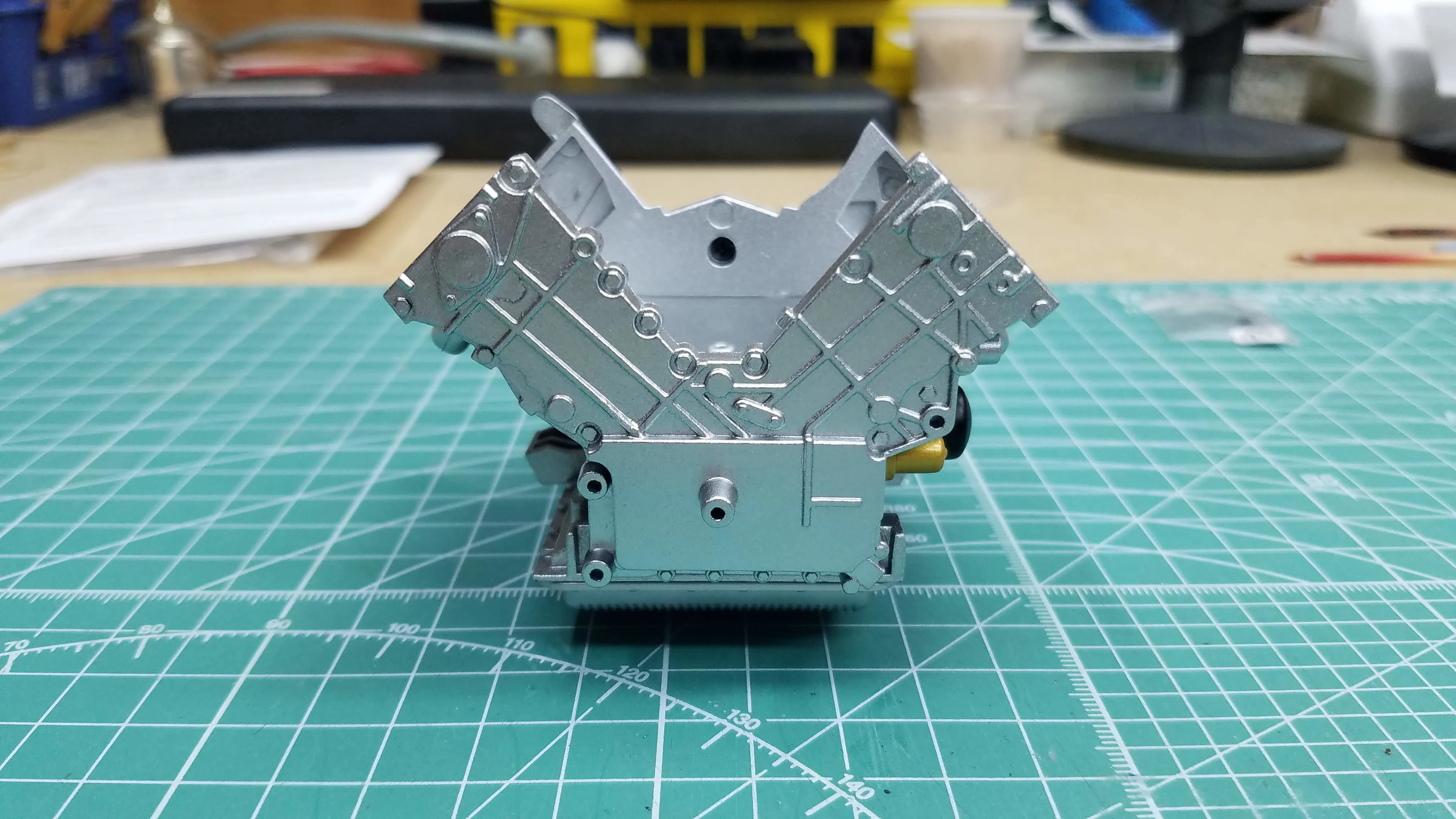

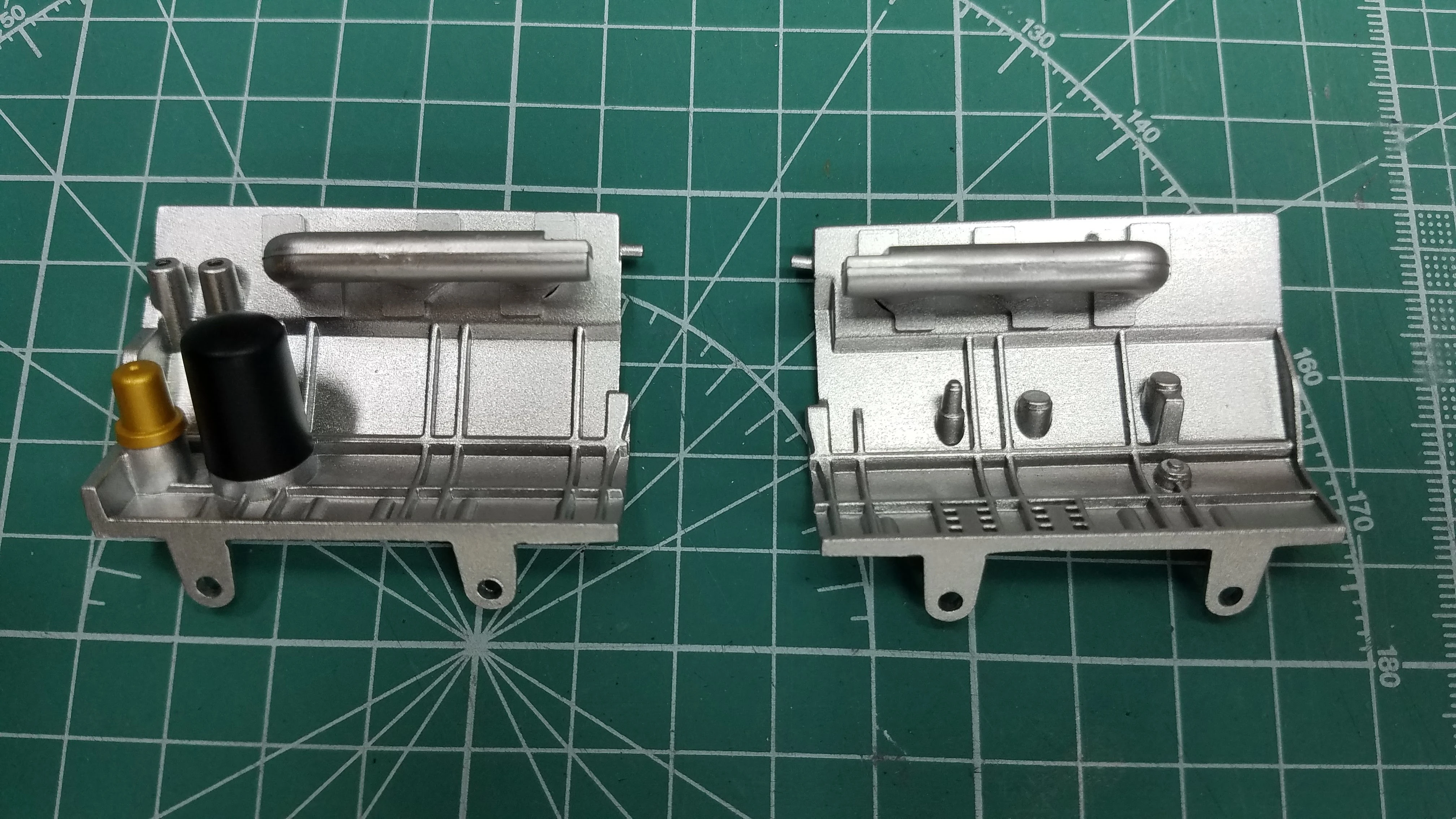

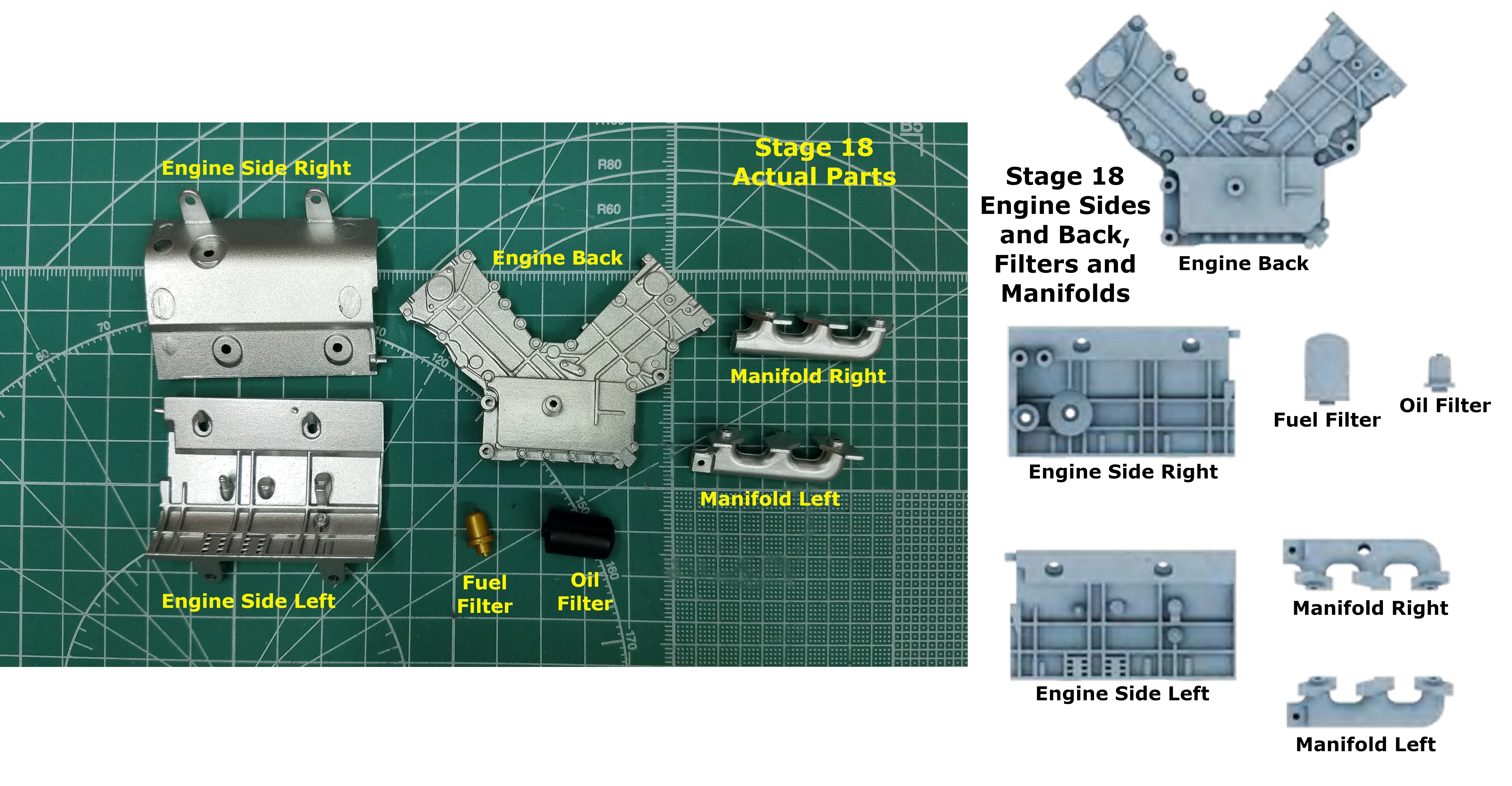

018	Stage 018 contains the parts for the sides and back of the engine, the oil filter, the fuel filter, the right manifold, the left manifold, (6) DM Screws and (6) AP Screws. Return to the stage navigation menu	Click this link to view a photo of the parts, excluding the screws, to complete Stage 018. The image on the left is a photo of the actual parts. The image of the right is from the Stage 18 Magazine.	Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge

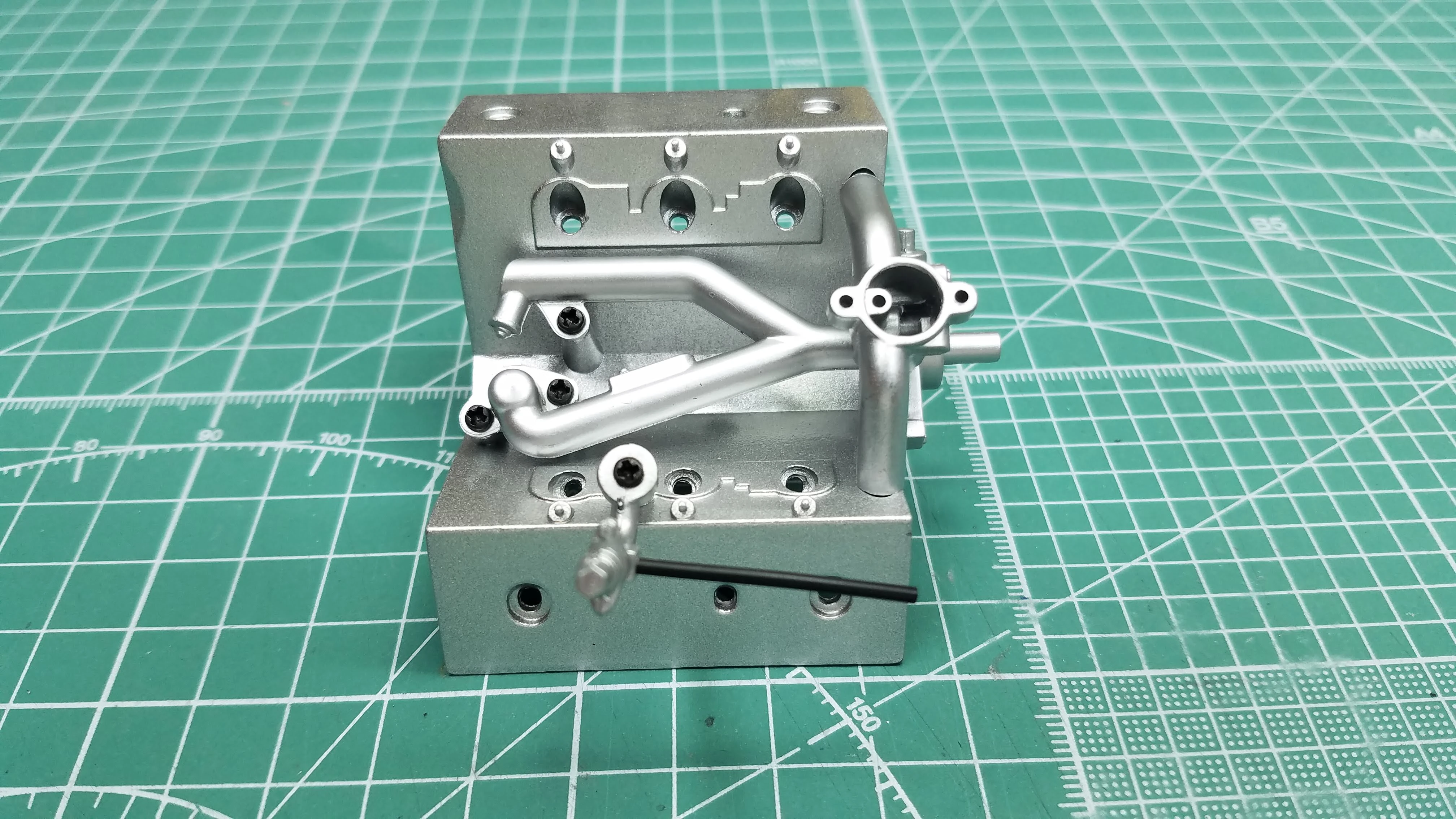

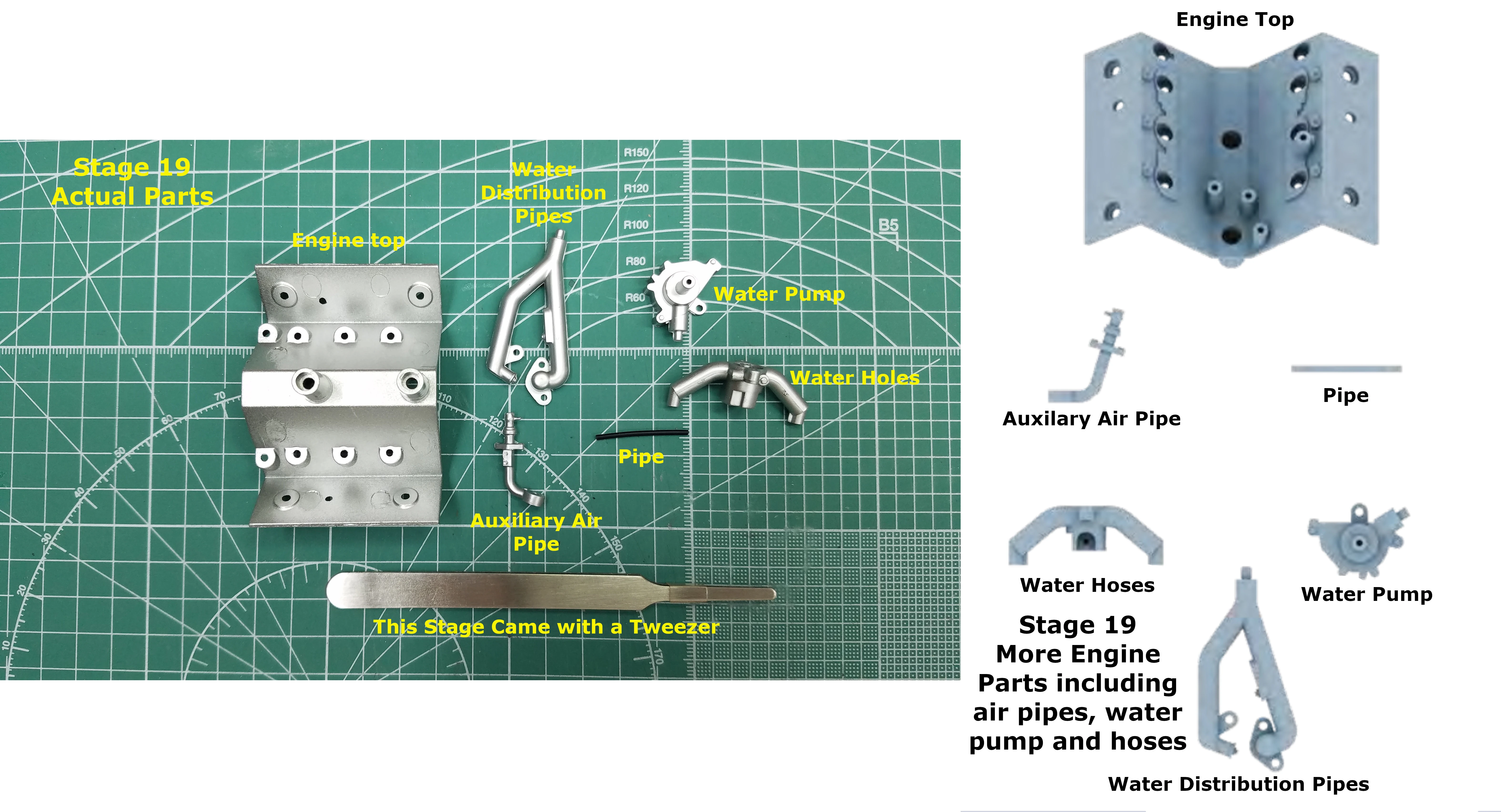

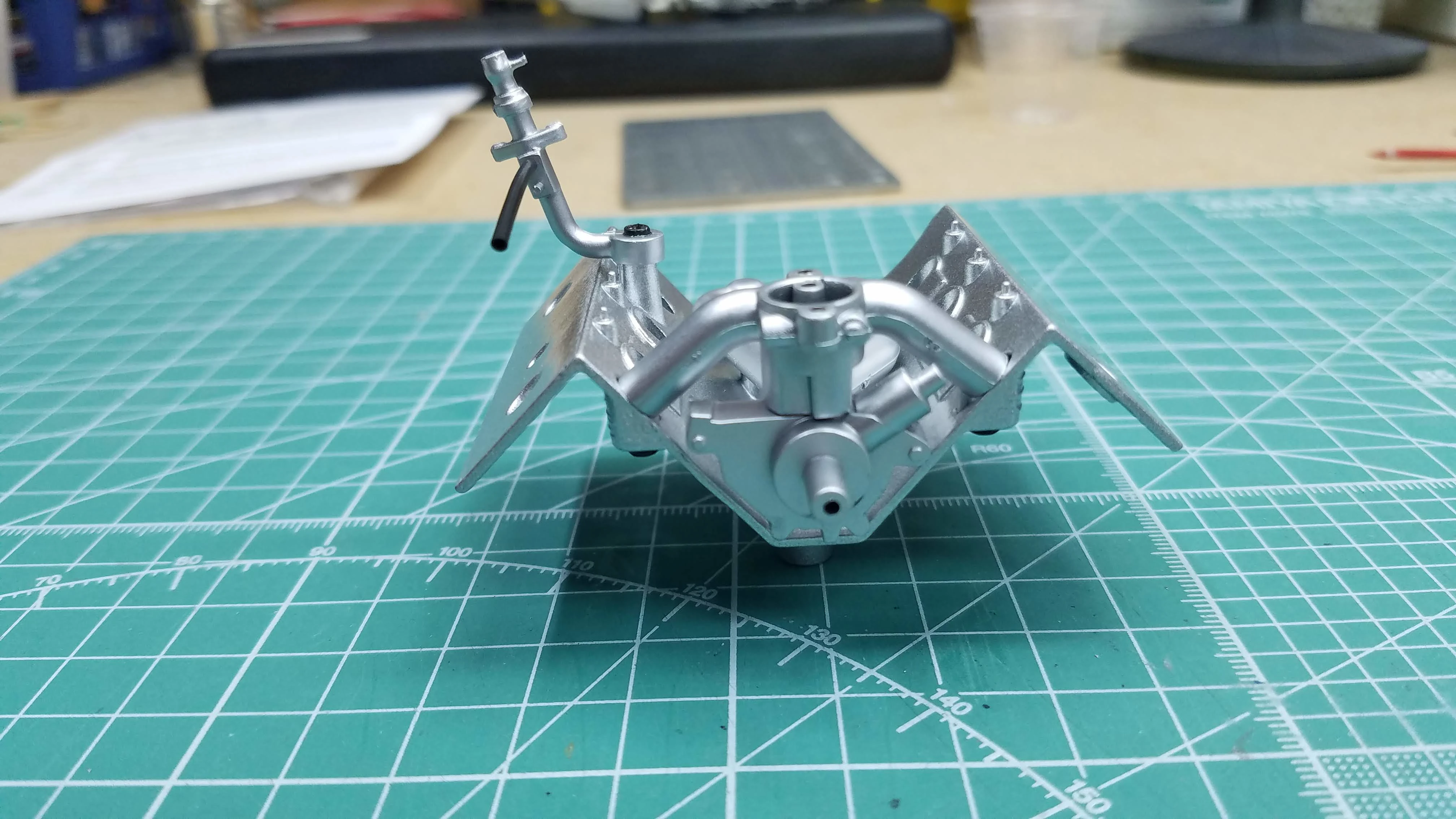

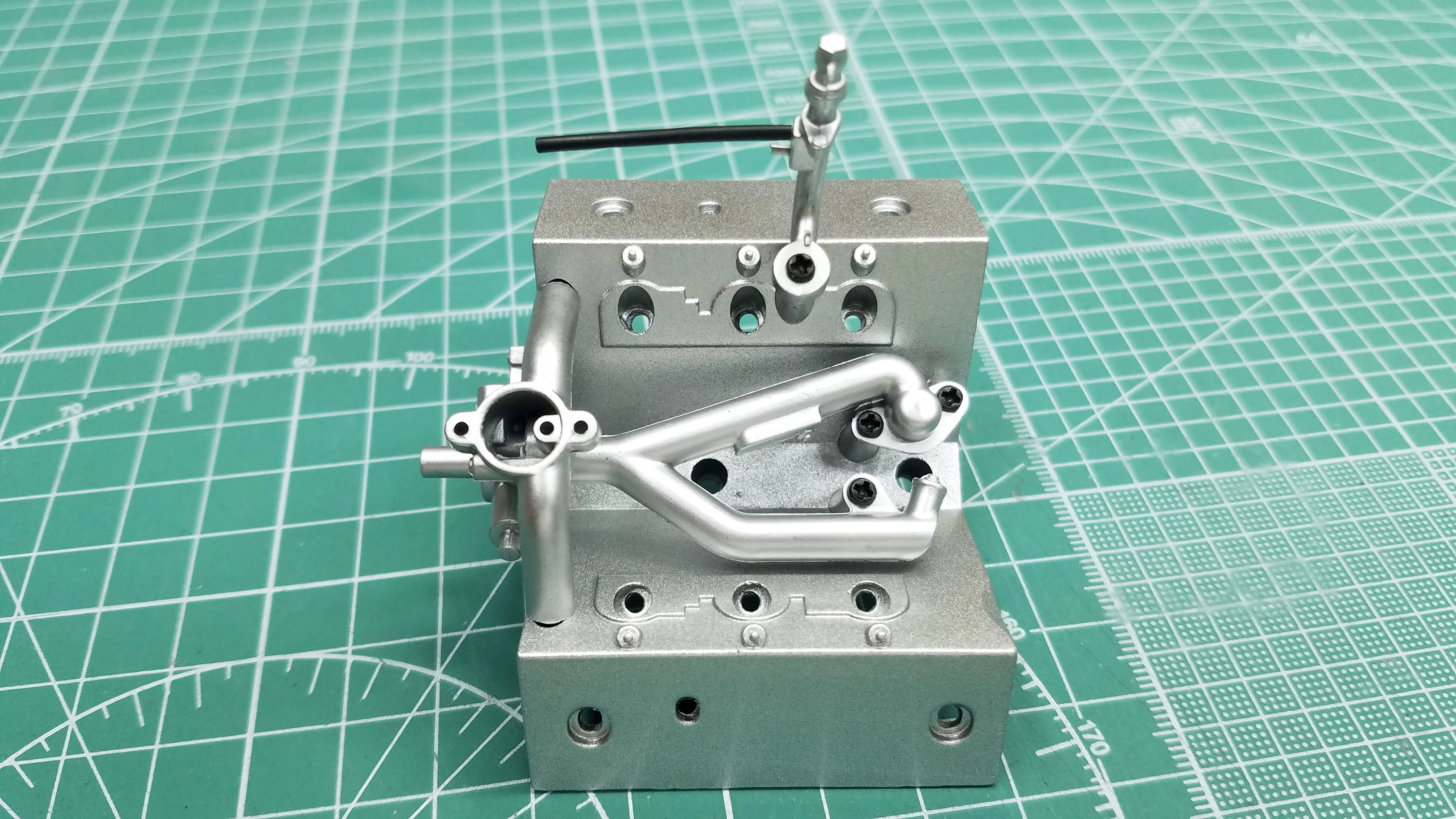

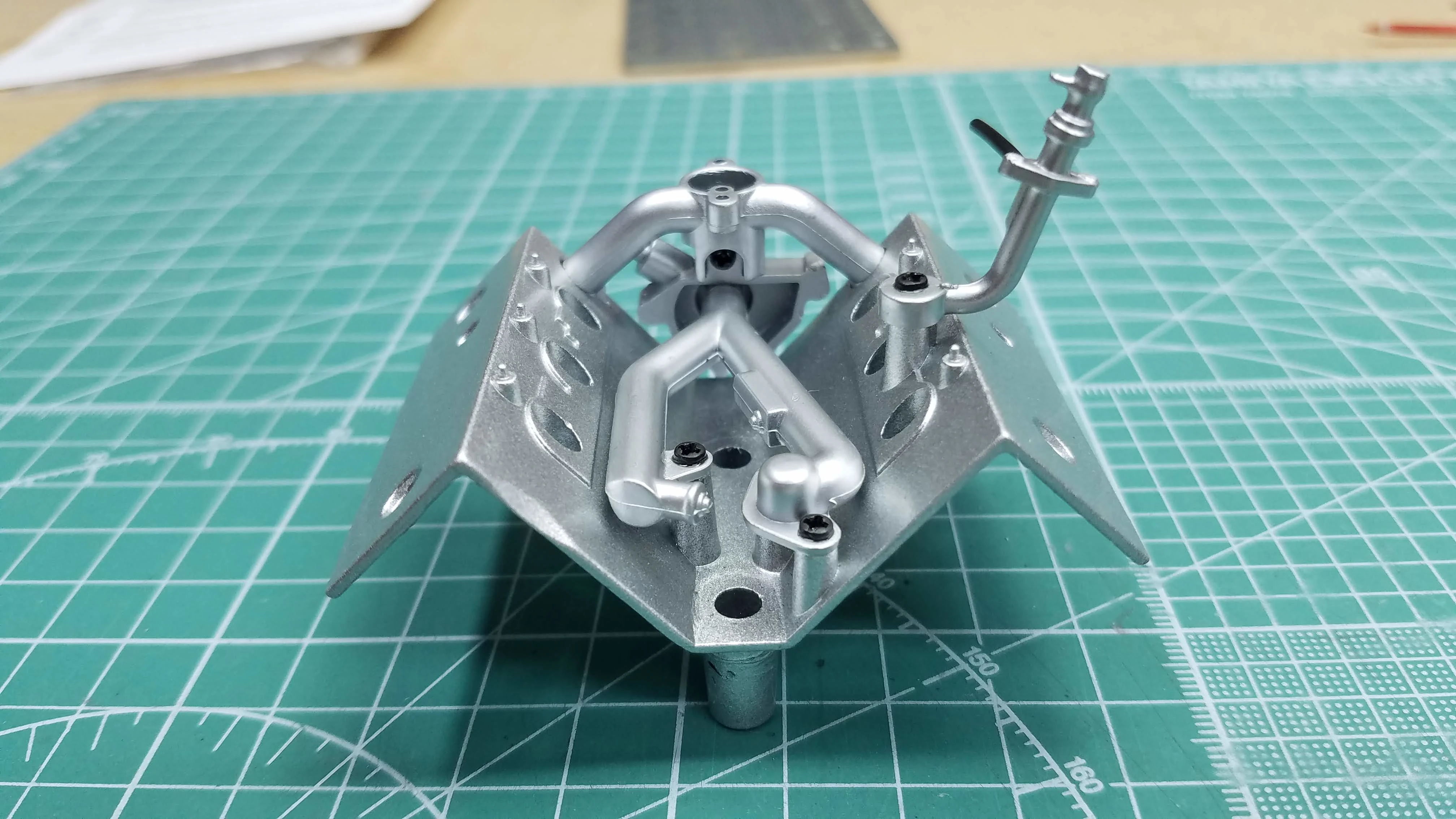

019	Stage 019 contains more parts for the engine including, the engine top, water pump, water hoses, water distribution pipes, flexible pipe, auxiliary air pipe, (3) AP Screws and (4) AM screws. Return to the stage navigation menu	Click this link to view a photo of the parts, excluding the screws, to complete Stage 019. The image on the left is a photo of the actual parts. The image of the right is from the Stage 19 Magazine.	Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge

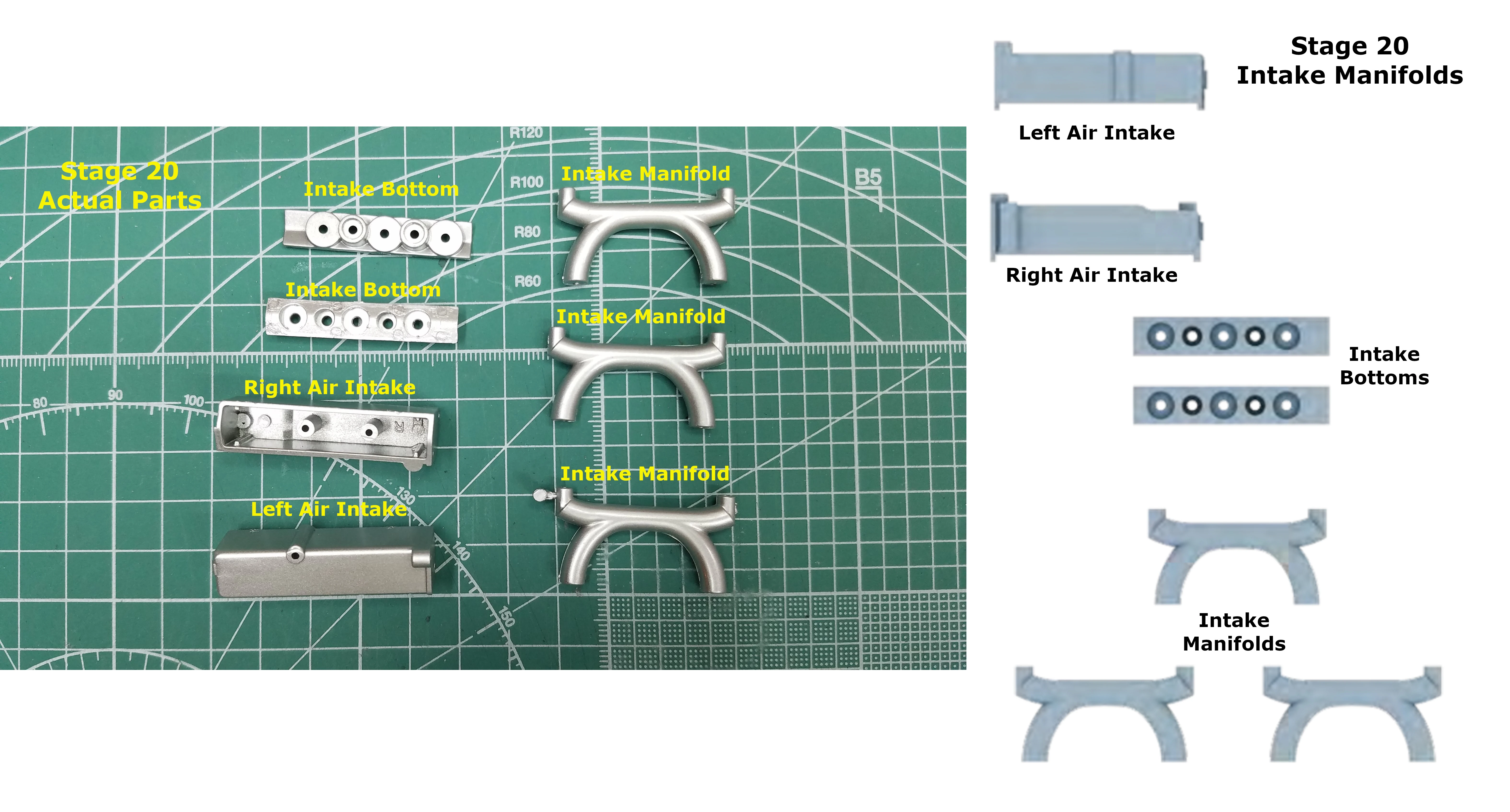

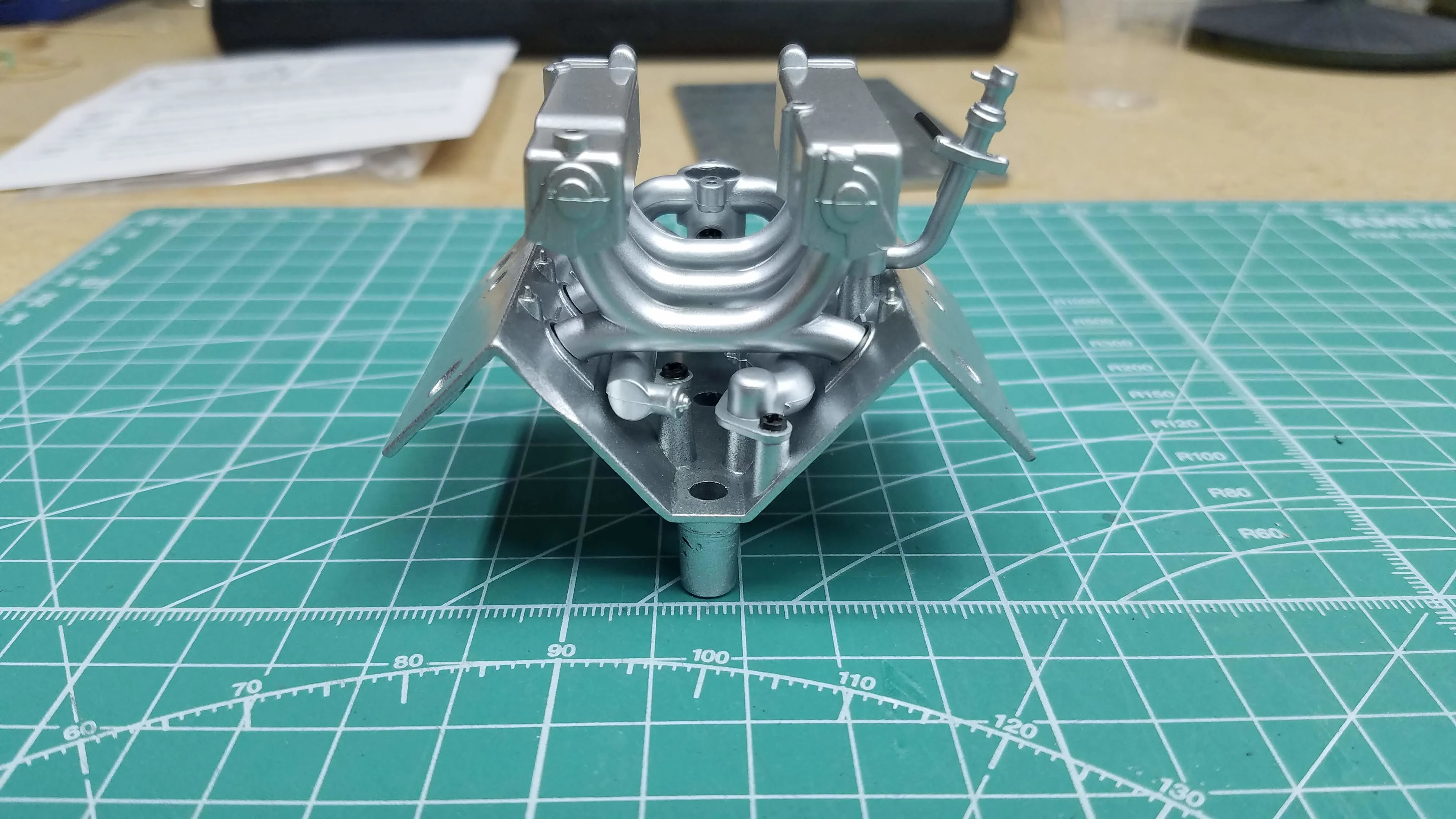

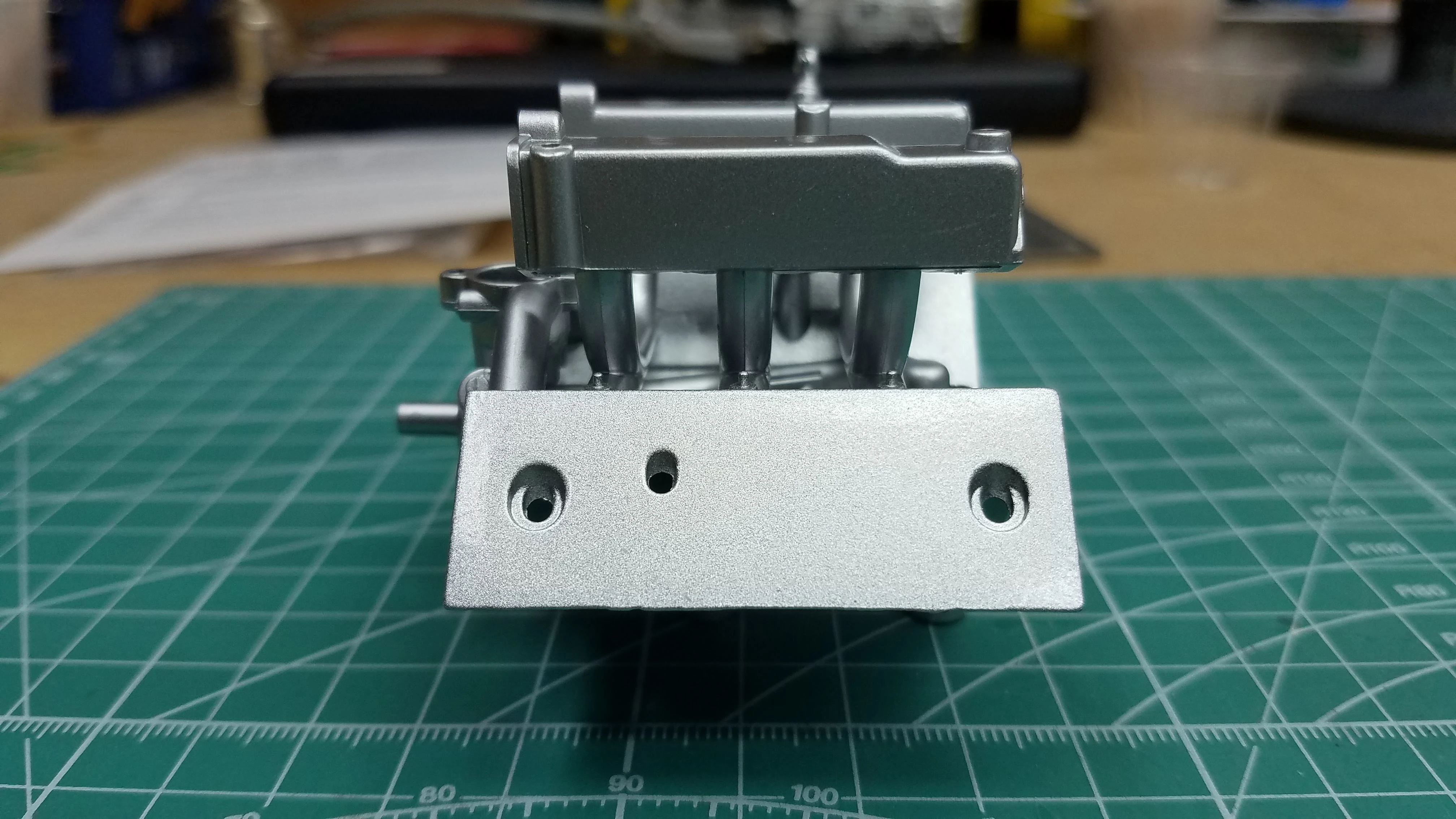

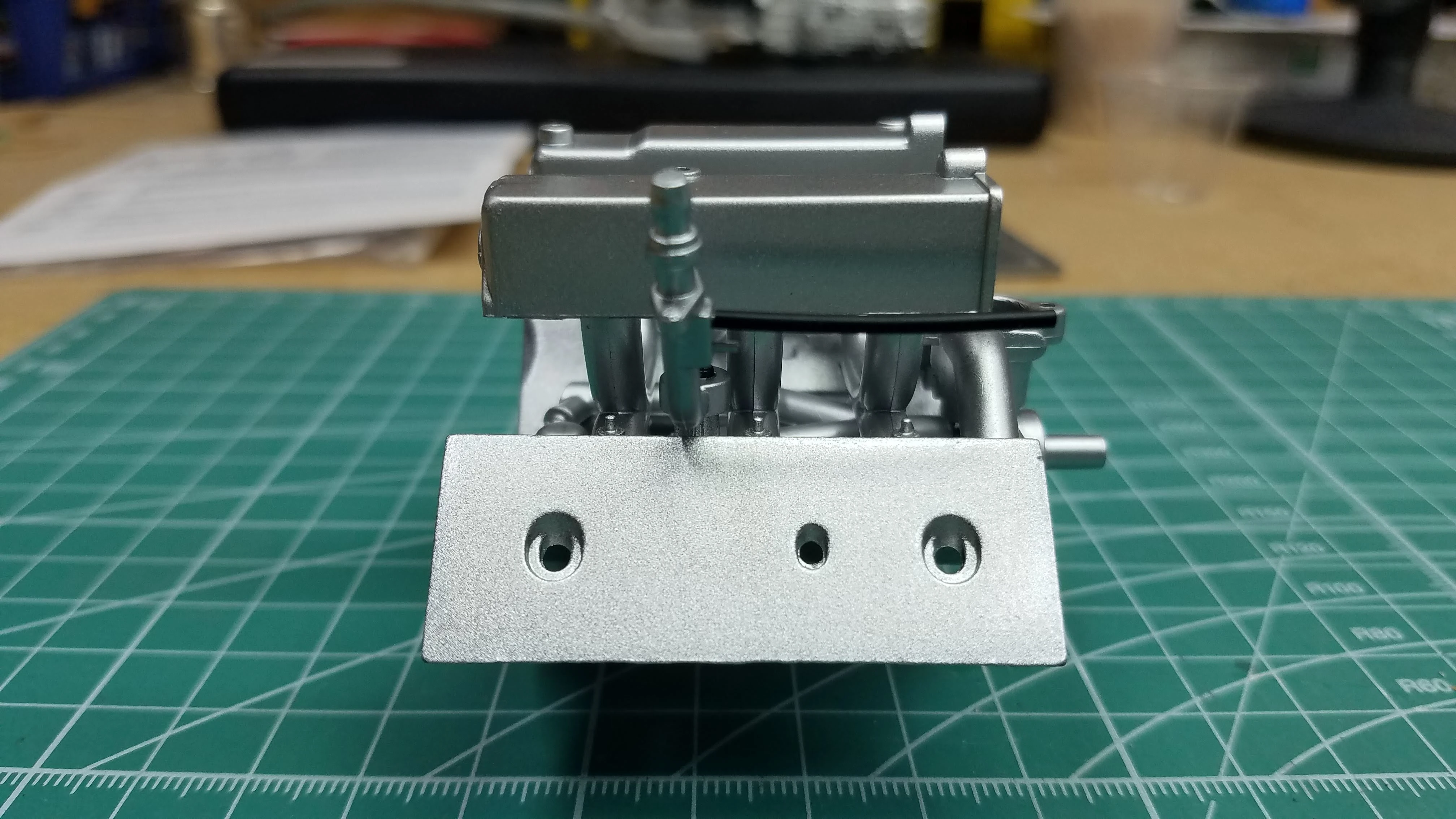

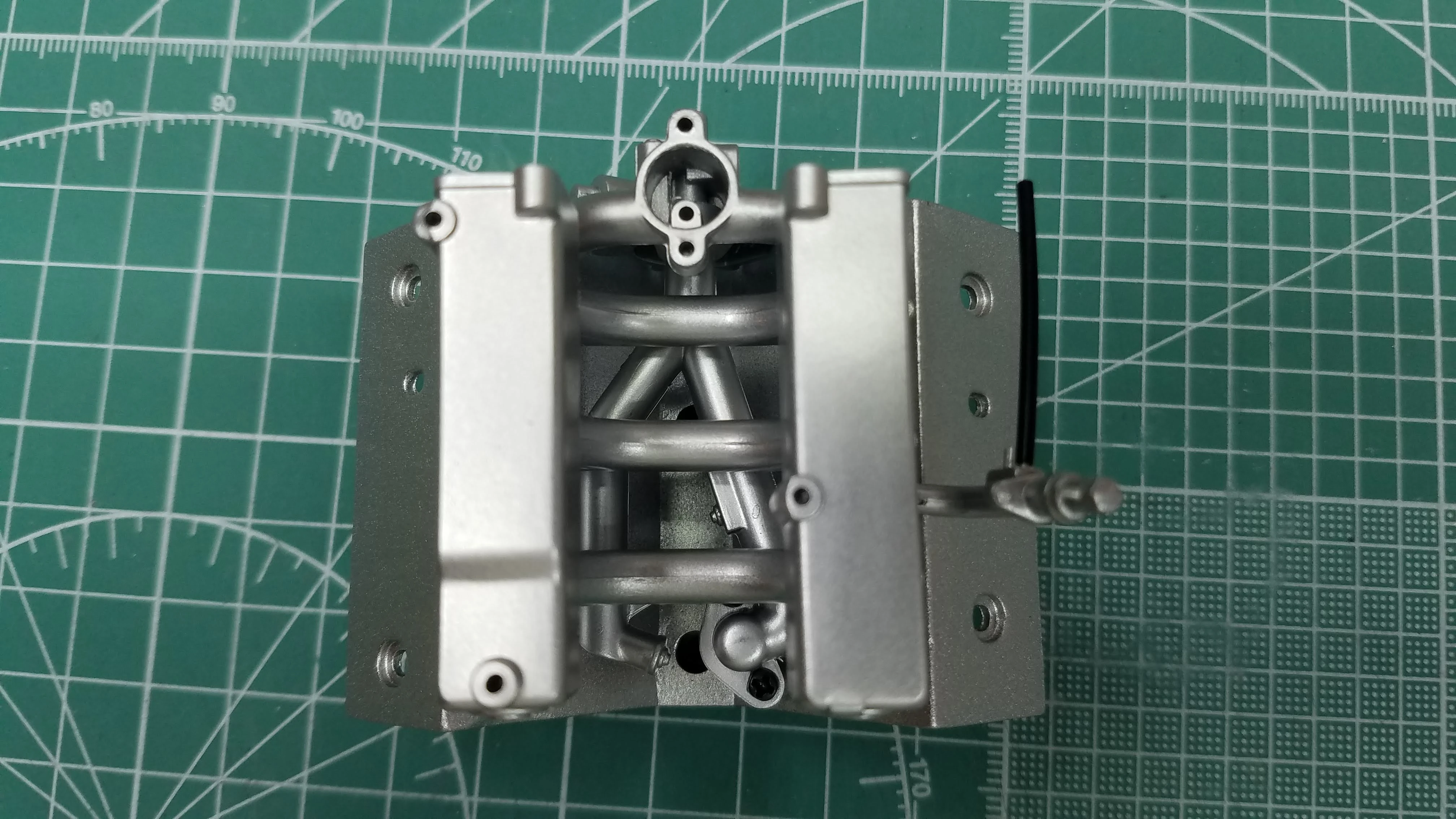

020	Stage 020 contains more parts for the engine including, the intake manifolds, and (16) AP Screws Return to the stage navigation menu	Click this link to view a photo of the parts, excluding the screws, to complete Stage 020. The image on the left is a photo of the actual parts. The image of the right is from the Stage 20 Magazine.	Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge

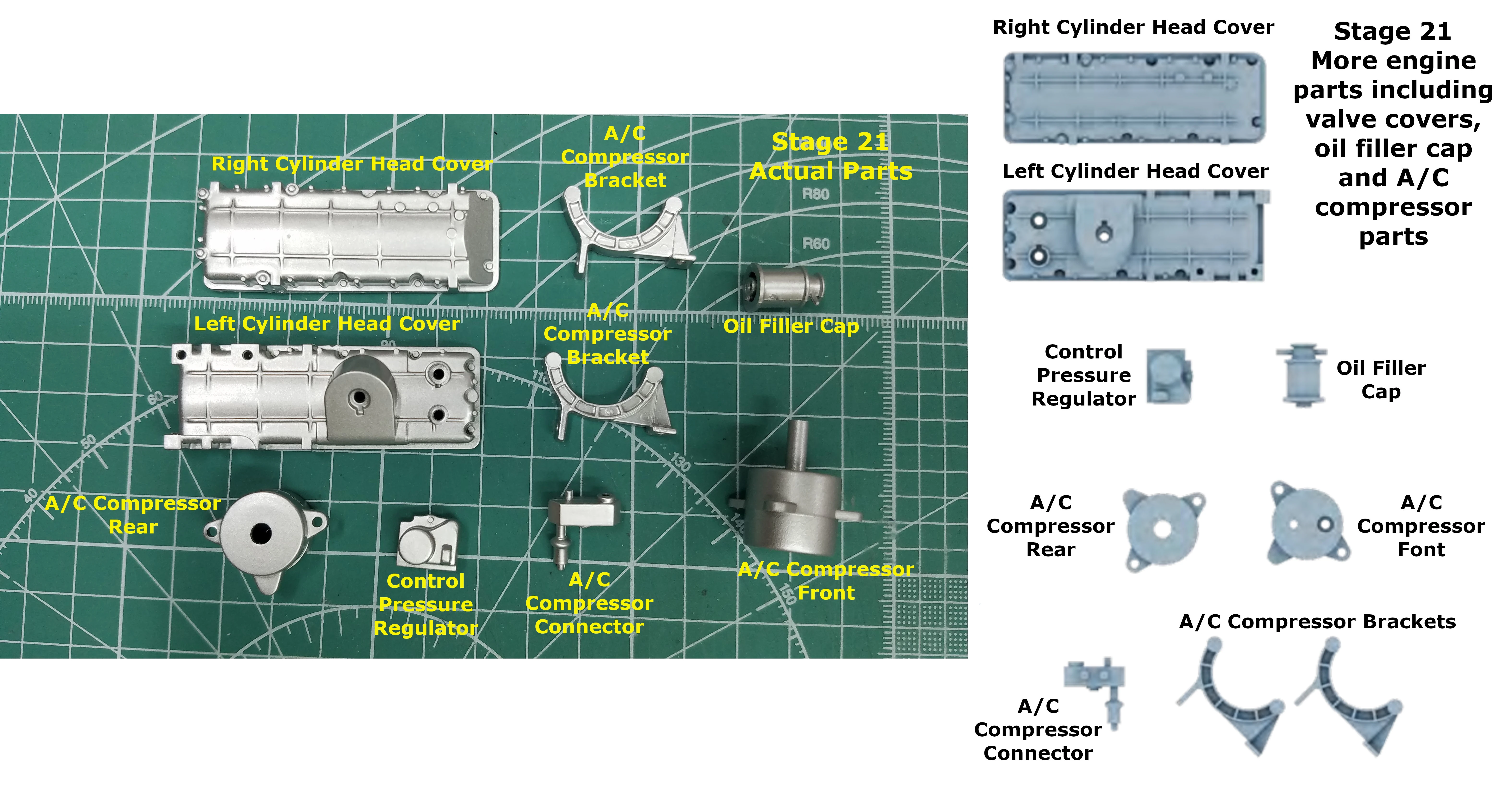

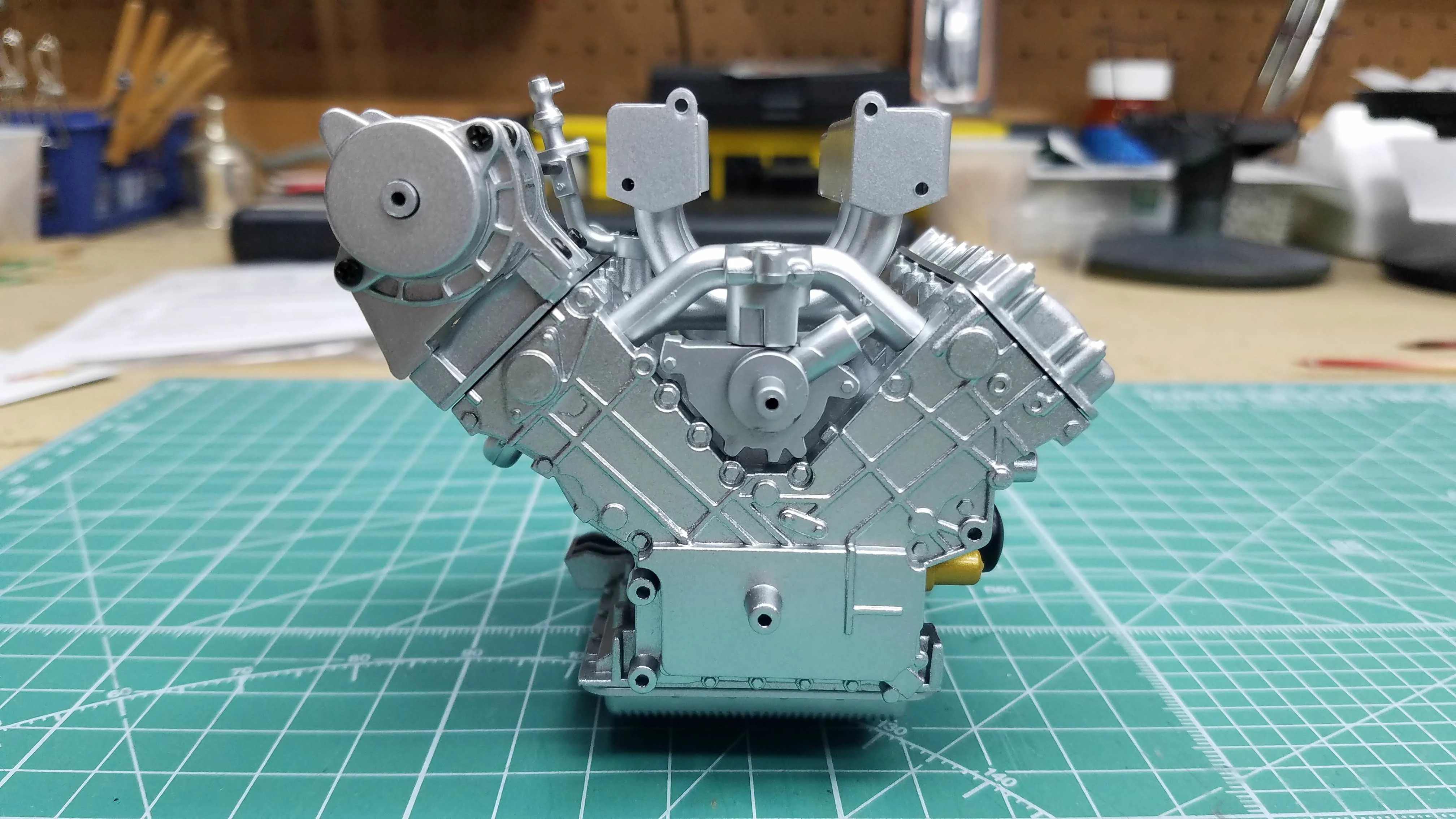

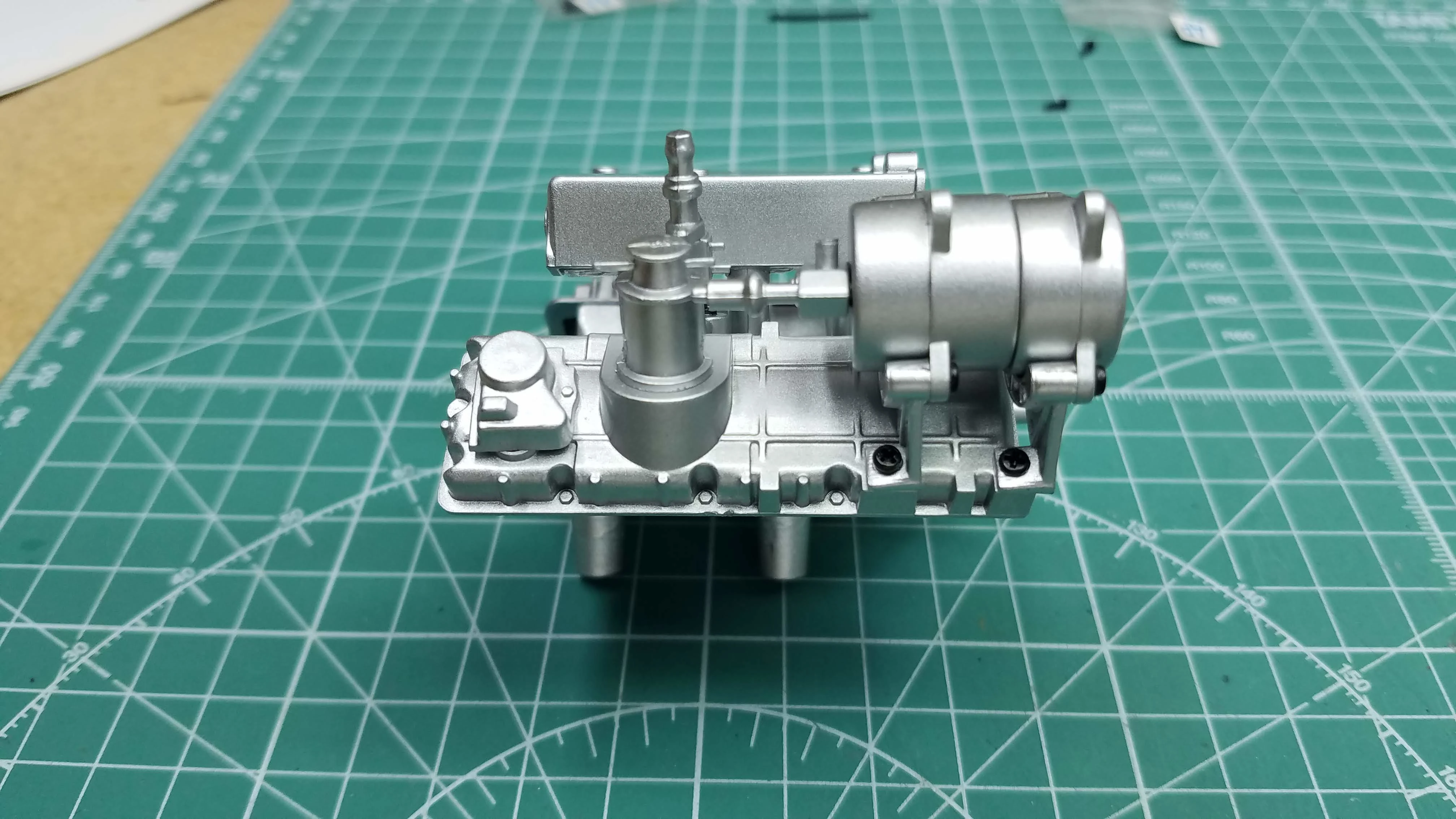

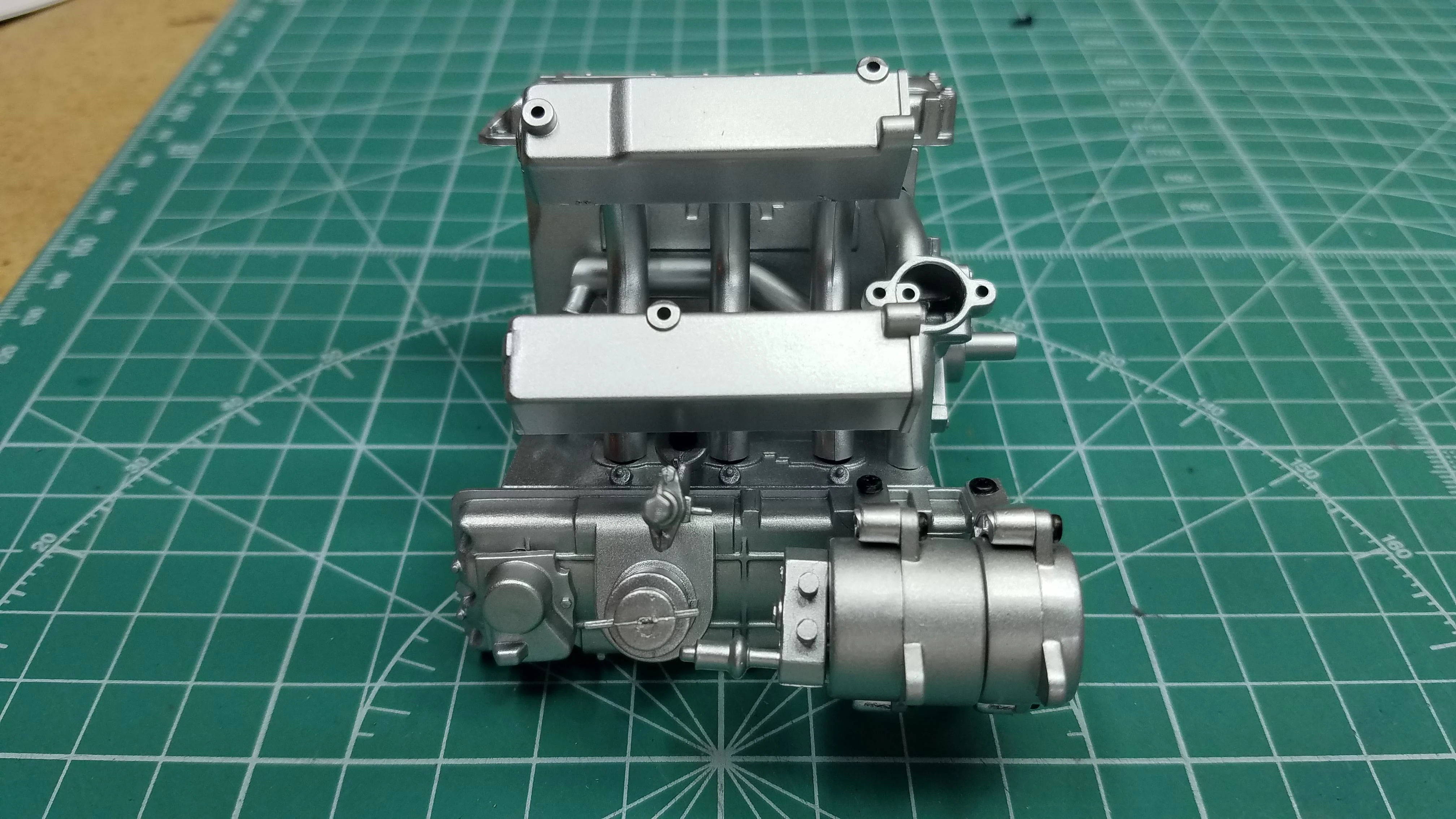

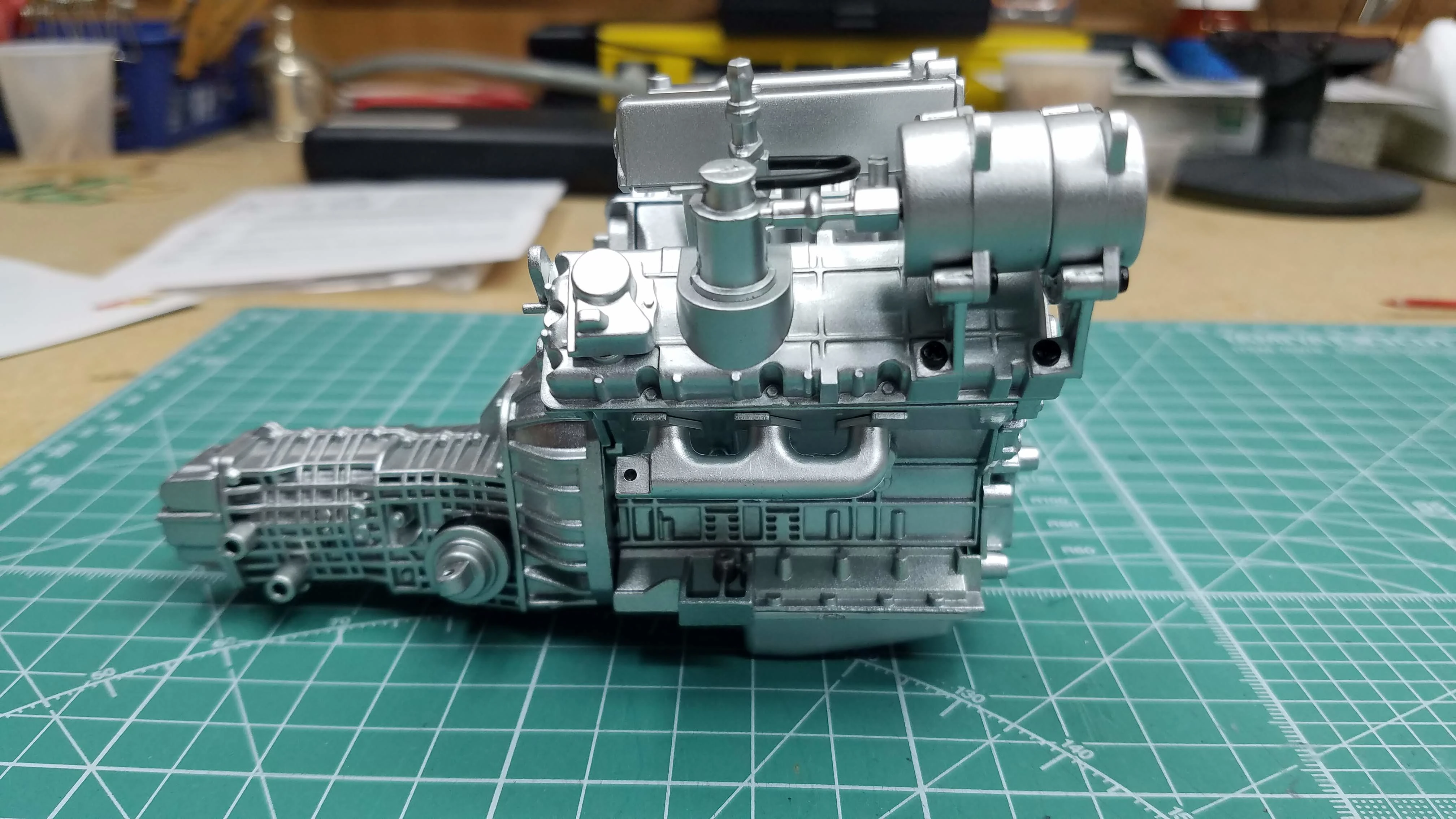

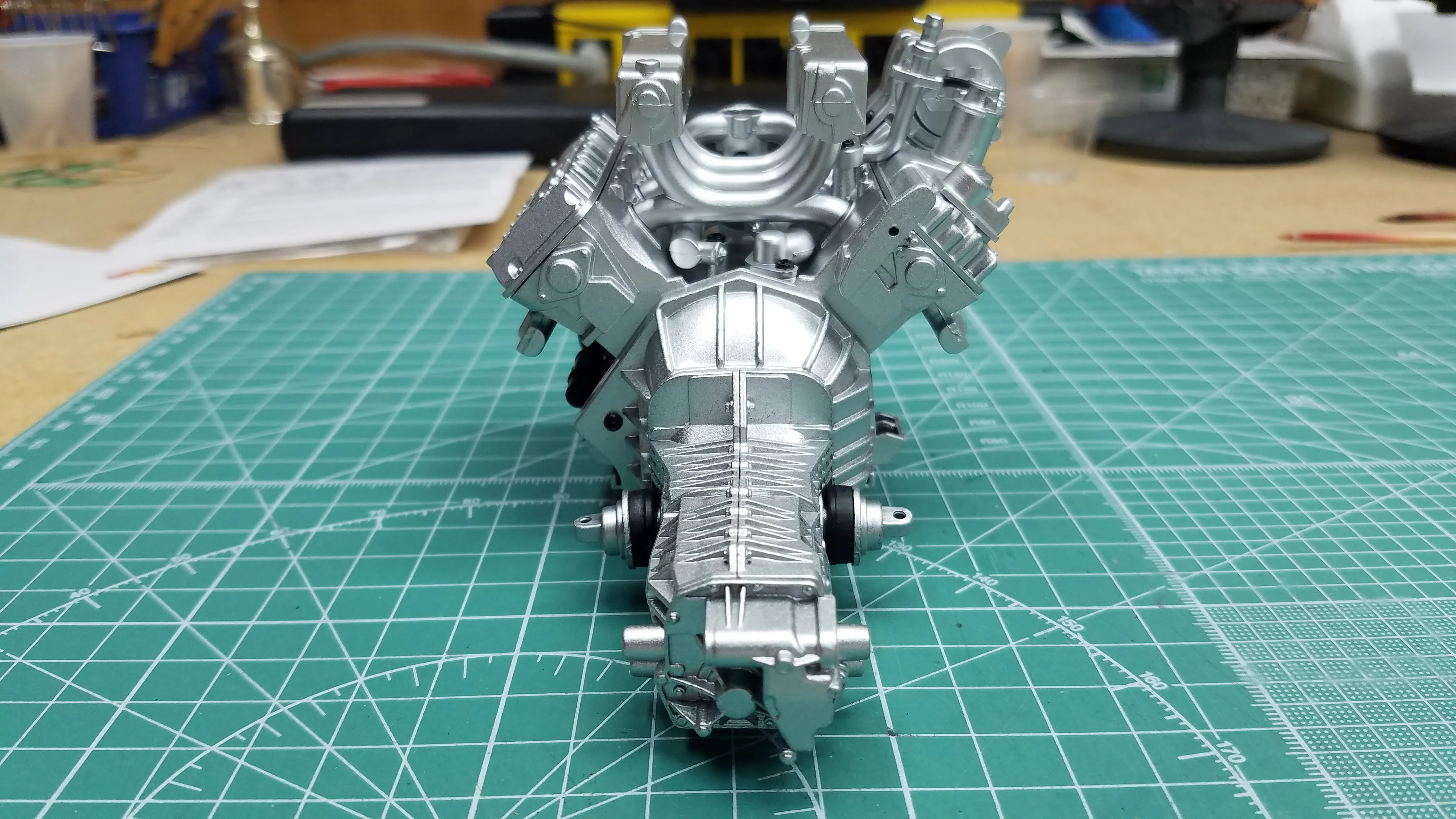

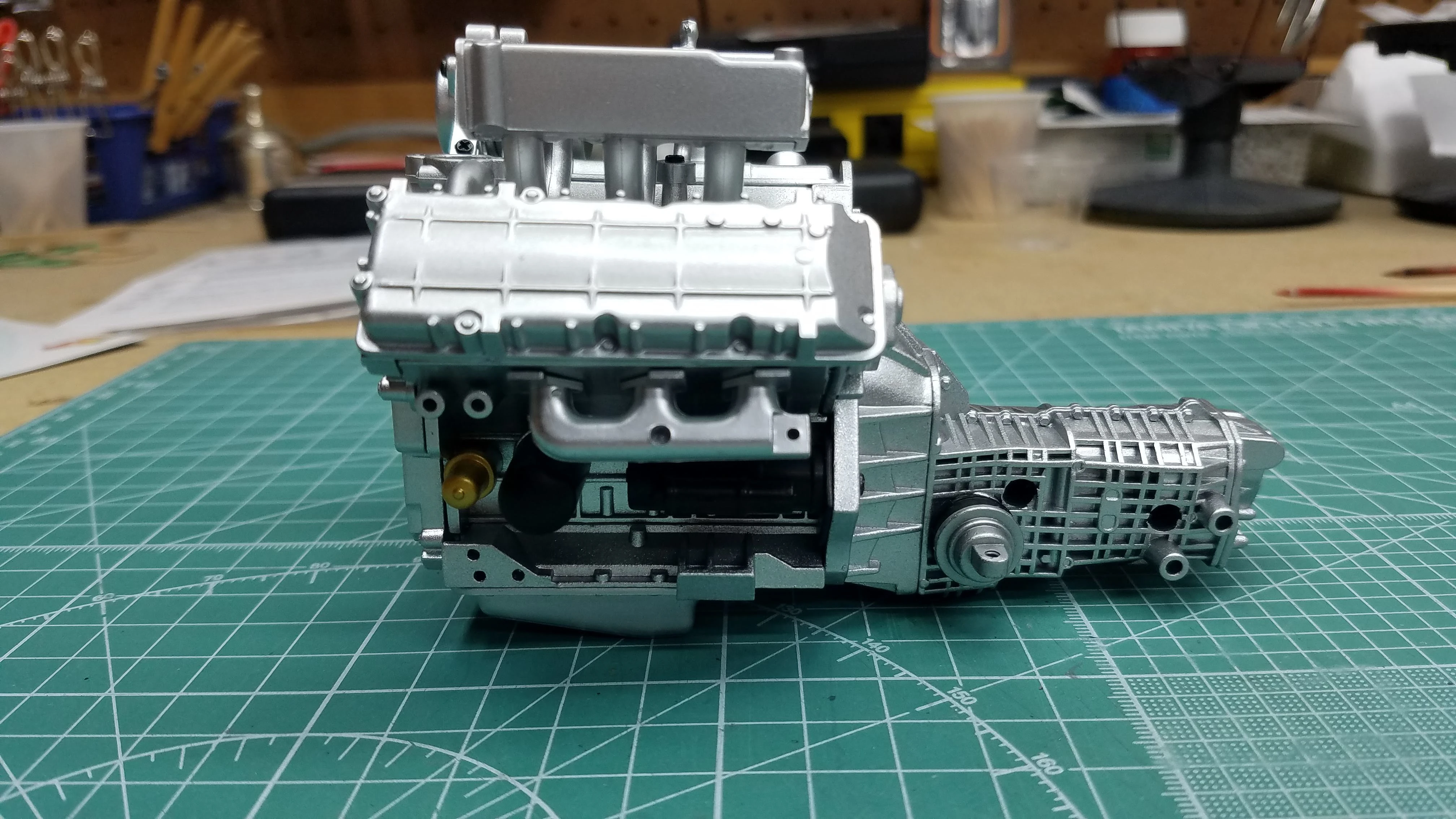

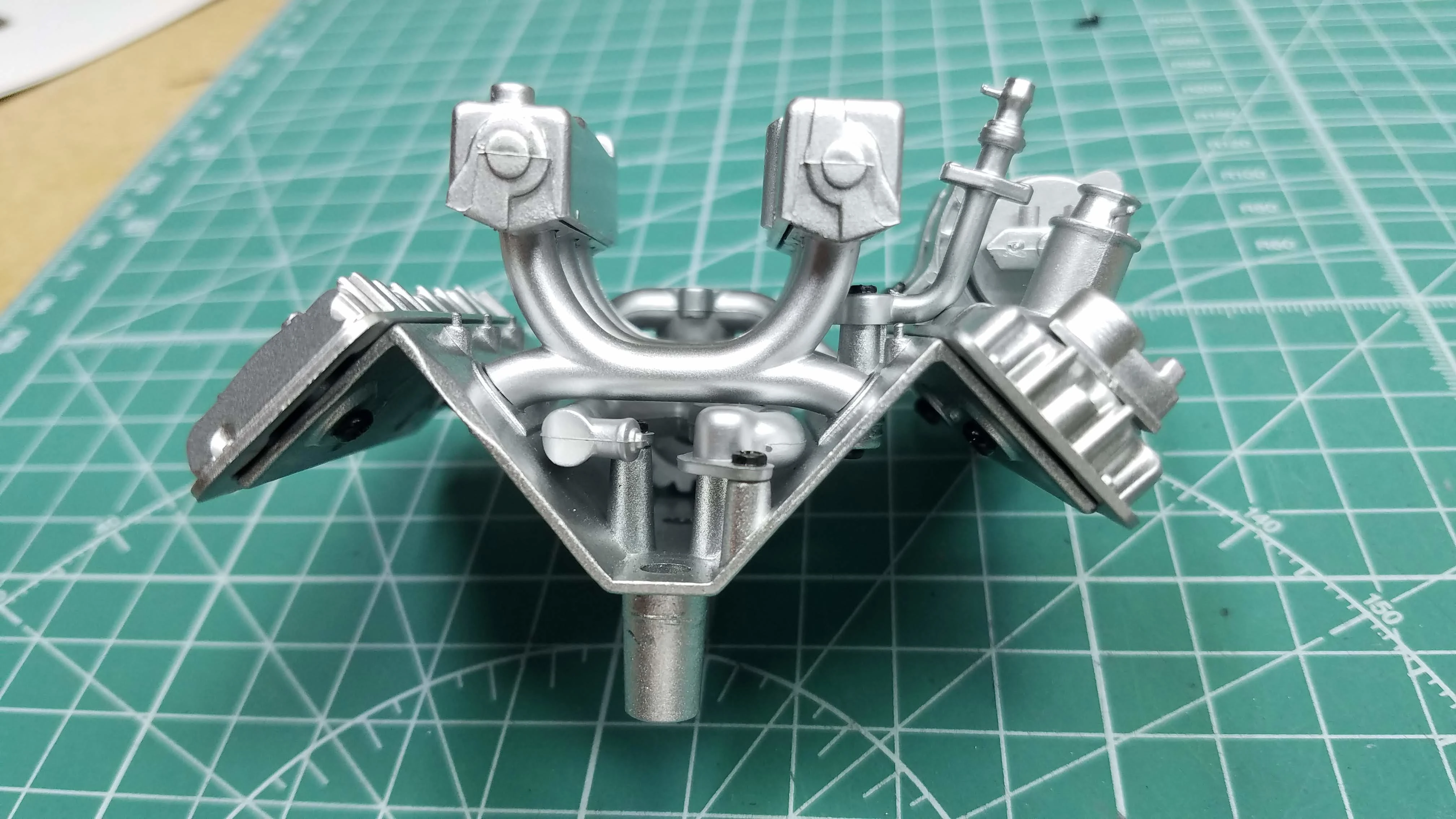

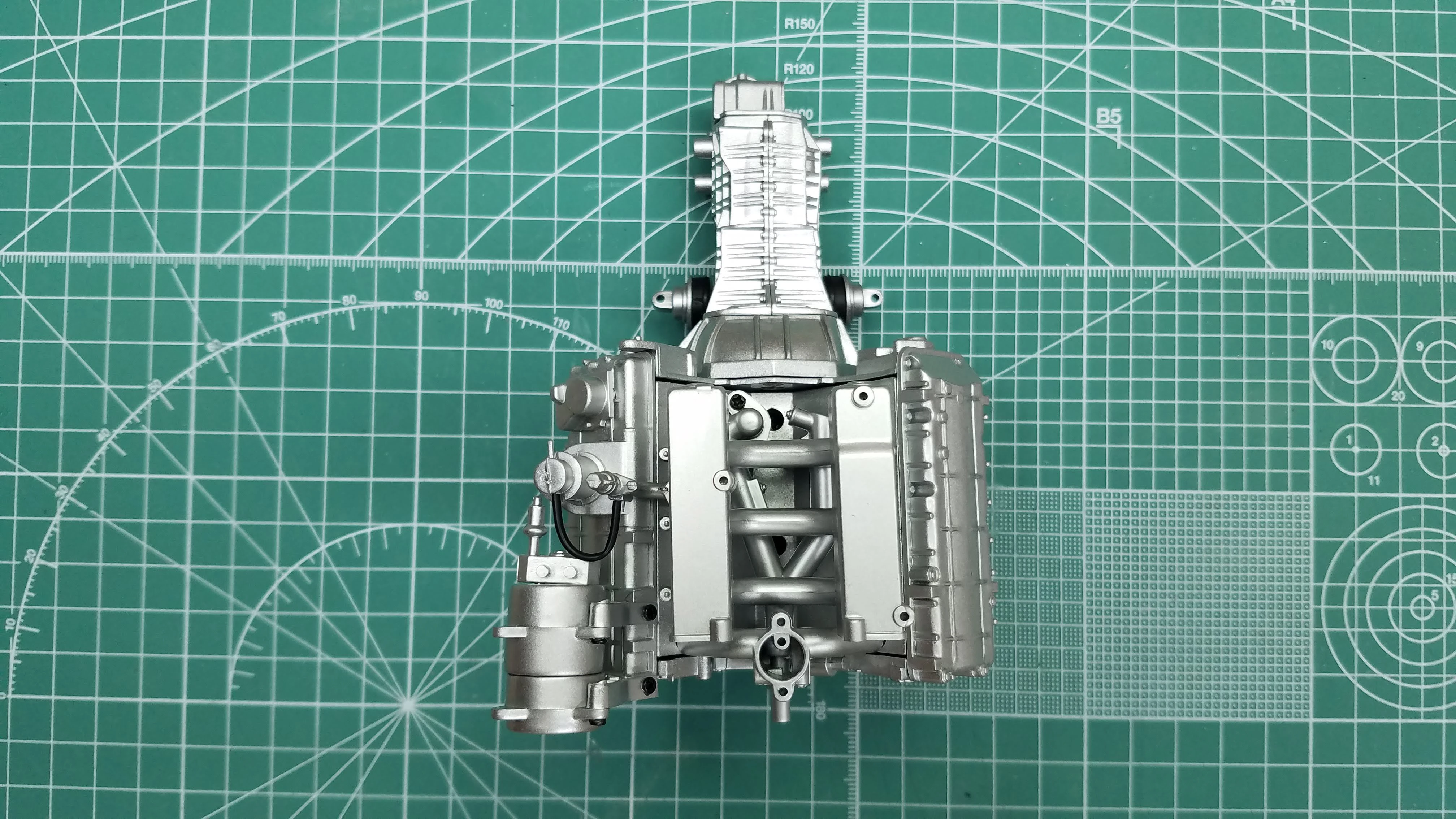

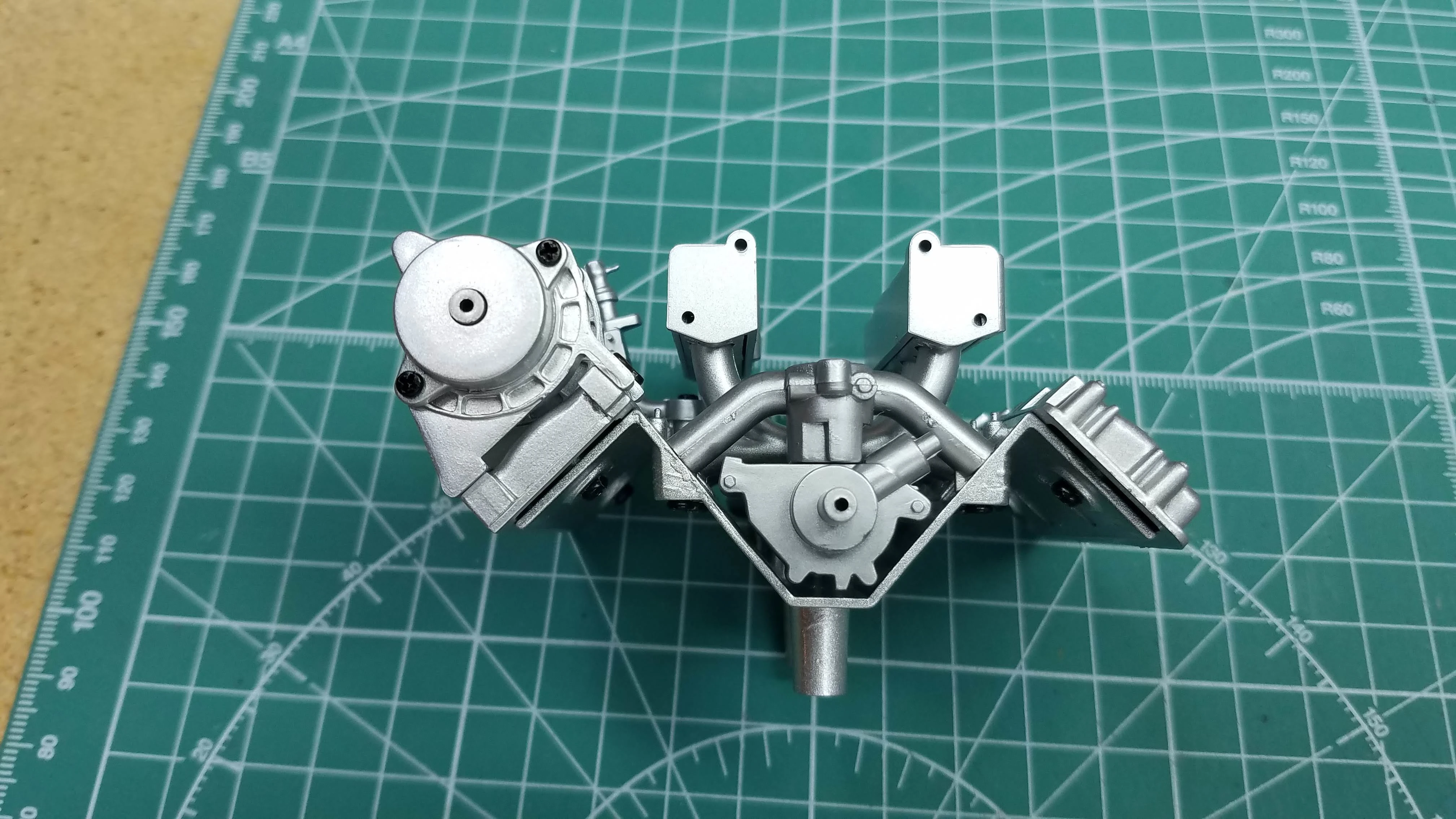

021	Stage 021 contains more parts for the engine including the, left and right cylinder head covers, control pressure regulator, oil filler cap, A/C compressor rear, A/C compressor front, A/C compressor connector, (2) A/C compressor brackets, (12) AP Screws, (4) FP Screws and (2) DM Screws. Return to the stage navigation menu	Click this link to view a photo of the parts, excluding the screws, to complete Stage 021. The image on the left is a photo of the actual parts. The image of the right is from the Stage 21 Magazine.	Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge Click link or photo to enlarge
